Home Replacement Square Flange Pool & Spa Motor | 1.5HP Full-Rated/2HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479313 | EB858 | EB859 | B2858 | B2859 | B855 | ASB858
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

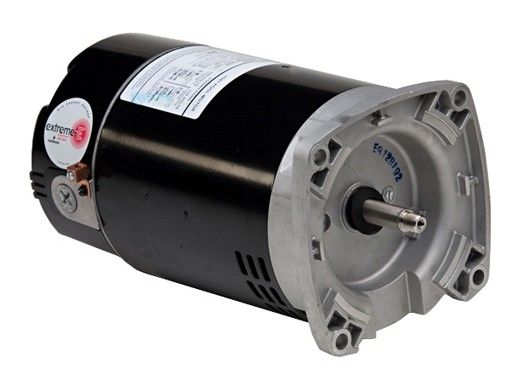

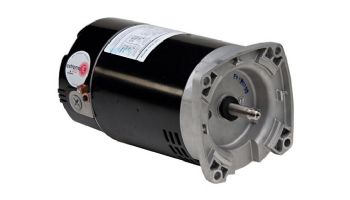

Replacement Square Flange Pool & Spa Motor | 1.5HP Full-Rated/2HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479313 | EB858 | EB859 | B2858 | B2859 | B855 | ASB858

Replacement Square Flange Pool & Spa Motor | 1.5HP Full-Rated/2HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479313 | EB858 | EB859 | B2858 | B2859 | B855 | ASB858
$330.31

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer
  • Switchless Design
  • 6.5" Frame Diameter
  • Open Drip Proof
  • Double Sealed Ball Bearings

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Pentair Challenger 1.5HP High Pressure Energy Efficient  Pool Pump Full Rated 208V 230V | 345206
Pentair Challenger High Pressure Full Rated Pump
1.5HP 208V/230V | 345206
Replacement Parts

Pentair Challenger 1.5HP High Pressure Standard Efficiency  Pool Pump Full Rated 115V 230V | 345201
Pentair Challenger High Pressure Full Rated Pool Pump 1.5HP Standard Efficiency 115V/230V | 345201
Replacement Parts

Sta-Rite SuperMax 1.5HP Standard Efficiency Pool Pump 115-230V | PHK2RA6F-103L
Sta-Rite SuperMax 1.5HP
Standard Efficiency Pool Pump 115/230V | PHK2RA6F-103L
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • 1081 Design
  • Open Drip-Proof
  • 300 Series Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (Dual Voltage Only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Double Sealed Ball Bearing
  • Continuous Duty
  • Class B Insulated
  • Thermally Protected
  • 50 Degree 'C' Ambient
  • Frequency: 60
  • Length Less Shaft: 13.74
  • Weight: 33
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60 Hz
Amps 10.8/21.6
Service Factor
THP 2.25
RPM 3450
Shaft Type Threaded
Rotation CW Lead End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
1.5 HP
Speed
1 Speed
Voltage
115/230V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
how long should this pump last under normal usage?
eddie m on Aug 2, 2017
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Nice
This is exactly what I wanted.Our pump was in dire need of it,and it came fast enough so we could enjoy our BBQ swim party.
April 7, 2016
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
