Sta-Rite Dyna-Pro E 1.5HP Standard Efficiency Pool Pump Up Rated 115V 230V | MPRA6F-206L Parts

Back to Product

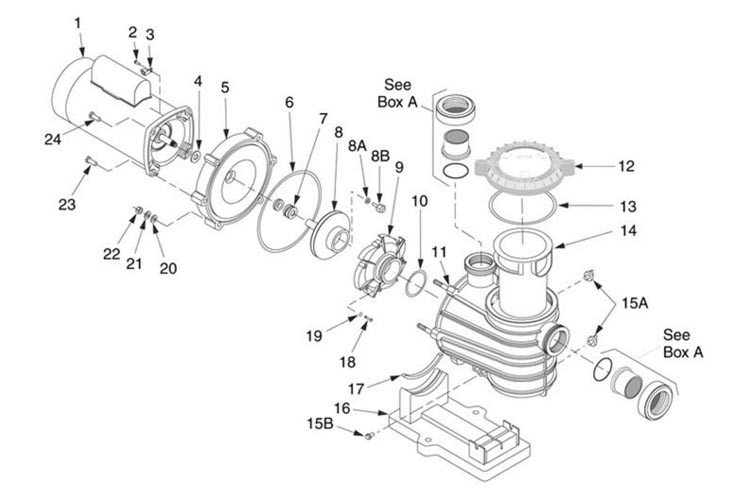

Sta-Rite Dyna-Pro E 1.5HP Standard Efficiency Pool Pump Up Rated 115V 230V | MPRA6F-206L Parts Schematic
1
Replacement Square Flange Pool & Spa Motor | 56Y Frame Standard Efficiency | 115/230V 1.5HP Full Rated 2HP Up Rated | R0479313 | EB858 | EB859 | B2858 | B2859 | B855 | ASB858
Replacement Square Flange Pool & Spa Motor | 56Y Frame Standard Efficiency | 115/230V 1.5HP Full Rated 2HP Up Rated | R0479313 | EB858 | EB859 | B2858 | B2859 | B855 | ASB858
Quantity:
$330.31

2
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Quantity:
$4.57

3
Pentair Grounding/Bonding Lug | U17-568
Pentair Grounding/Bonding Lug | U17-568
Quantity:
$14.22

4
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Sta-Rite Motor Shaft Water Slinger | 17351-0009
Quantity:
$4.16

5
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Quantity:
$92.07

6
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Quantity:
$10.57

7
Pentair Shaft Seal Buna | 37400-0027S
Pentair Shaft Seal Buna | 37400-0027S
Quantity:
$24.10

8
Pentair Dyna Max-Pro Impeller 1.5HP | C105-236PC
Pentair Dyna Max-Pro Impeller 1.5HP | C105-236PC
Quantity:
$40.33

9
Pentair Dyna-Glas Dyna-Pro Diffuser | 1.5HP UR 2.5HP UR | C1-270P
Pentair Dyna-Glas Dyna-Pro Diffuser | 1.5HP UR 2.5HP UR | C1-270P
Quantity:
$29.82

10
Pentair O-Ring Diffuser | U9-374 U9-374Z
Pentair O-Ring Diffuser | U9-374 U9-374Z
Quantity:
$7.83

11
Pentair Dyna-Pro Tank and Trap Body Only | C76-71P
Pentair Dyna-Pro Tank and Trap Body Only | C76-71P
Quantity:
$188.71

12
Sta-Rite Trap Cover 6" | C3-185P
Sta-Rite Trap Cover 6" | C3-185P
Quantity:
$49.71

13
Pentair Trap Cover O-Ring | 35505-1440
Pentair Trap Cover O-Ring | 35505-1440
Quantity:
$20.20

14
Pentair Trap Basket Max-E-Pro | C8-58P C8-58PZ
Pentair Trap Basket Max-E-Pro | C8-58P C8-58PZ
Quantity:
$14.23

15A
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Quantity:
$5.05

15B
Pentair Mounting Screw | U30-919SS
Pentair Mounting Screw | U30-919SS
Quantity:
$7.57

16
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Quantity:
$42.25

17
Pentair Plastic Base Motor Pad | C35-45
Pentair Plastic Base Motor Pad | C35-45
Quantity:
$7.87

18
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Quantity:
$4.86

19
Pentair #8 External Tooth Lock Washer | U43-21SS
Pentair #8 External Tooth Lock Washer | U43-21SS
Quantity:
$4.63

20
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Quantity:
$4.63

21
Pentair Split Lock Washer | 3/8" | U43-12SS
Pentair Split Lock Washer | 3/8" | U43-12SS
Quantity:
$5.23

22
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$3.00

23
Pentair Cap Screw Hex | 3/8-16 X 1-1/4" | U30-75SS
Pentair Cap Screw Hex | 3/8-16 X 1-1/4" | U30-75SS
Quantity:
$5.42

24
Pentair Stainless Steel Hex Head Cap Screw | 3/8-16 x 1" | U30-74SS
Pentair Stainless Steel Hex Head Cap Screw | 3/8-16 x 1"  | U30-74SS
Quantity:
$7.57

25
Pentair 2" Valve Union Adapter Assembly | U11-199P
Pentair 2" Valve Union Adapter Assembly | U11-199P
Quantity:
$16.02
