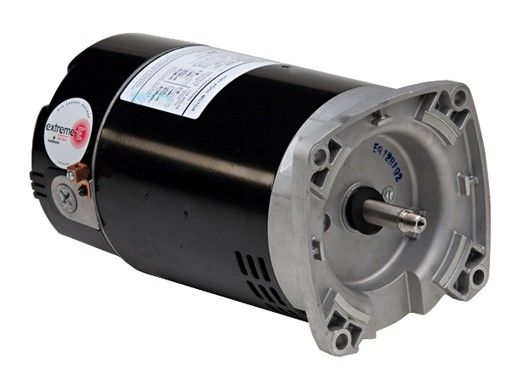

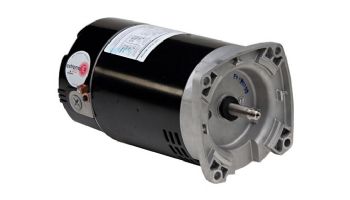

Home Replacement Square Flange Pool & Spa Motor | 56Y Frame Standard Efficiency | 115/230V 0.75HP Full Rated 1HP Up Rated | R0479311 | EB847 | EB853 | B2847 | B2853 | ASB847
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

Replacement Square Flange Pool & Spa Motor | 56Y Frame Standard Efficiency | 115/230V 0.75HP Full Rated 1HP Up Rated | R0479311 | EB847 | EB853 | B2847 | B2853 | ASB847

Replacement Square Flange Pool & Spa Motor | 56Y Frame Standard Efficiency | 115/230V 0.75HP Full Rated 1HP Up Rated | R0479311 | EB847 | EB853 | B2847 | B2853 | ASB847
$188.76

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer
  • Switchless Design
  • 6.5" Frame Diameter
  • Open Drip Proof
  • Double Sealed Ball Bearings

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Pentair Challenger High Pressure Energy Efficient Pool Pump | 113/230V 0.75HP Full Rated | 345213
Pentair Challenger High Pressure Energy Efficient Pool Pump | 113/230V 0.75HP Full Rated | 345213
Replacement Parts

Sta-Rite SuperMax .75HP Standard Efficiency Pool Pump 115-230V | PHK2RA6D-101L
Sta-Rite SuperMax .75HP
Standard Efficiency Pool Pump 115/230V | PHK2RA6D-101L
Replacement Parts

Pentair SuperFlo Standard Efficiency Pool Pump | 115-230V 1HP | EC-348190
Pentair SuperFlo 1HP
Standard Efficiency Pool Pump 115/230V | EC-348190
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • 1081 Design
  • Open Drip-Proof
  • 300 Series Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (Dual Voltage Only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Double Sealed Ball Bearing
  • Continuous Duty
  • Class B Insulated
  • Thermally Protected
  • 50 Degree 'C' Ambient
  • Frequency: 60
  • Length Less Shaft: 12.49
  • Weight: 25
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60 Hz
Amps 7.0/14.0
Service Factor
THP 1.25
RPM 3450
Shaft Type Threaded
Rotation CW Lead End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
.75 HP
Speed
1 Speed
Voltage
115/230V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
0
0
0
0
Rated 5 out of 5
Great customer service
The motor arrived the day it was promised and it helped us get our pool back in shape, thank you for taking the trouble of finding the direct replacement.
January 2, 2014
Rated 5 out of 5
Good quality product. Easy to install. Fast delivery.
August 11, 2020
Purchased
1 year ago
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
