Pentair IntelliFloXF Variable Speed Pump 3HP Max | Rotary Keypad Control | EC-022055 Parts

Back to Product

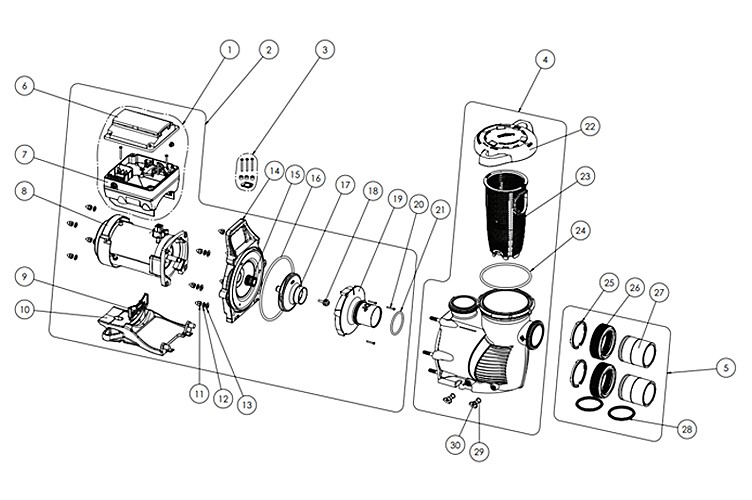

Pentair IntelliFloXF Variable Speed Pump 3HP Max | Rotary Keypad Control | EC-022055 Parts Schematic
8
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Quantity:
$507.59

1
Pentair IntelliFlo VS Drive Kit with Keypad | Almond | 356879Z
Pentair IntelliFlo VS Drive Kit with Keypad | Almond | 356879Z
Quantity:
$834.03

2
Pentair Power End Kit | 400655Z
Pentair Power End Kit | 400655Z
Quantity:
$1,452.94

3
Pentair IntelliFlo Drive Hardware Kit | 355685
Pentair IntelliFlo Drive Hardware Kit | 355685
Quantity:
$73.80

4
Pentair XF Series Pump Wet End Assembly | 400000
Pentair XF Series Pump Wet End Assembly | 400000
Quantity:
$160.97

5
Pentair Union Kit for WhisperFlo XF | 410020
Pentair Union Kit for WhisperFlo XF | 410020
Quantity:
$99.26

6
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Quantity:
$217.55

7
Pentair IntelliFlo Variable Speed Drive Assembly Bottom | Almond | 356878Z
Pentair IntelliFlo Variable Speed Drive Assembly Bottom | Almond | 356878Z
Quantity:
$697.73

9
Pentair Whisperflo Foot Insert | Almond | 070929
Pentair Whisperflo Foot Insert | Almond | 070929
Quantity:
$18.72

10
Pentair Motor Base XF Series | 400004Z
Pentair Motor Base XF Series | 400004Z
Quantity:
$27.14

11
Pentair Acorn Nut for FX Series | 071413
Pentair Acorn Nut for FX Series | 071413
Quantity:
$3.56

12
Pentair 3/8" Split Lock Washer | U43-12SS
Pentair 3/8" Split Lock Washer | U43-12SS
Quantity:
$5.48

13
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$4.32

14
Pentair Seal Plate Whisperflo XF Series | 400002
Pentair Seal Plate Whisperflo XF Series | 400002
Quantity:
$111.32

15
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Quantity:
$25.74

16
Pentair WhisperfloXF Seal Plate O-Ring | 351446
Pentair WhisperfloXF Seal Plate O-Ring | 351446
Quantity:
$9.58

17
Pentair Impeller Pump Assembly XF Series | 400015
Pentair Impeller Pump Assembly XF Series | 400015
Quantity:
$86.39

18
Pentair Impeller Lock Screw | 37337-6080
Pentair Impeller Lock Screw | 37337-6080
Quantity:
$19.59

19
Pentair Diffuser Pump XF | 400010
Pentair Diffuser Pump XF | 400010
Quantity:
$64.67

20
Pentair Diffuser Screw for Whisperflo FX | 353323
Pentair Diffuser Screw for Whisperflo FX | 353323
Quantity:
$2.05

21
Pentair Diffuser O-Ring Whisp - Intelli XF | 350336
Pentair Diffuser O-Ring Whisp - Intelli XF | 350336
Quantity:
$6.00

22
Pentair XF Series Pump Lid Locking Ring Assembly | 400006
Pentair XF Series Pump Lid Locking Ring Assembly | 400006
Quantity:
$42.92

23
Pentair XF Replacement Basket | 400007Z
Pentair XF Replacement Basket | 400007Z
Quantity:
$32.16

24
Pentair Trap Cover O-Ring | 35505-1440
Pentair Trap Cover O-Ring | 35505-1440
Quantity:
$18.84

25
Pentair 2-1.5" C-Clip Locking Ring WhisperfloXF - IntellifloXF | 410001
Pentair 2-1.5" C-Clip Locking Ring WhisperfloXF - IntellifloXF | 410001
Quantity:
$4.39

26
Pentair 2.5 inch Union Nut for FX | 411000
Pentair 2.5 inch Union Nut for FX | 411000
Quantity:
$12.05

27
Pentair Union Adapter without Tap 2.5" | 410002
Pentair Union Adapter without Tap 2.5" | 410002
Quantity:
$30.87

28
Pentair 2.5" Union Diamond Seal Kit | 2 Pieces | 410016Z
Pentair 2.5" Union Diamond Seal Kit | 2 Pieces | 410016Z
Quantity:
$14.61

29
Pentair Buna-N 70 Shore Drain Plug O-Ring 1/16" x 1/2" ID | 192115 192115Z
Pentair Buna-N 70 Shore Drain Plug O-Ring  1/16" x 1/2" ID | 192115 192115Z
Quantity:
$3.51

30
Pentair 3/8" Drain Plug Knob Thumb Twist | 2 Required | Almond | P19656 071131 071131Z
Pentair 3/8" Drain Plug Knob Thumb Twist | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$8.78

N/A
Pentair IntelliFlo 50ft Communication Cable | 350122
Pentair IntelliFlo 50ft Communication Cable | 350122
Quantity:
$86.78

N/A
Pentair Motor Fan Kit | Almond | 352401
Pentair Motor Fan Kit | Almond | 352401
Quantity:
$120.37

N/A
Pentair Keypad Relocation Kit | Almond | 356904Z
Pentair Keypad Relocation Kit | Almond | 356904Z
Quantity:
$53.23

N/A
Pentair Seal Plate Kit with Mechanical Seal for Whisperflo FX | 400031Z
Pentair Seal Plate Kit with Mechanical Seal for Whisperflo FX | 400031Z
Quantity:
$135.80
