Pentair Kreepy Krauly Legend Pool Cleaner | Booster Pump Required | Grey White Model | LL505G Parts

Back to Product

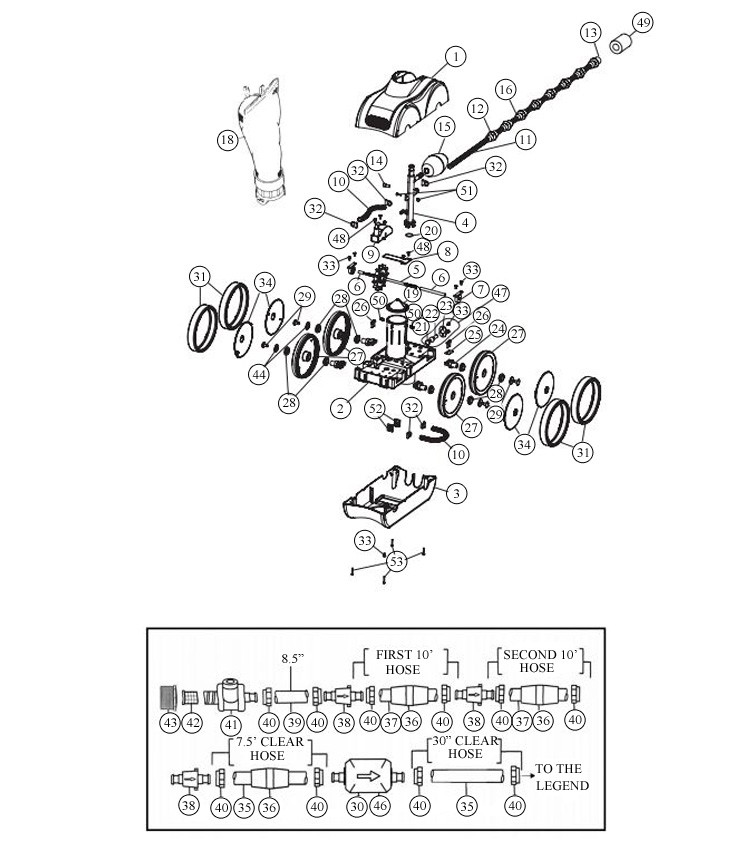

Pentair Kreepy Krauly Legend Pool Cleaner | Booster Pump Required | Grey White Model | LL505G Parts Schematic

1

Pentair Legend Top Housing | 360003

2

Pentair Legend Main Frame | Gray | 360010

2

Pentair Main Frame for Kreepy Krauly Legend 4-Wheel Pool Cleaner | LLU145N

3

Pentair Legend Housing Bottom Cover | 360004

3

Pentair Legend Bottom Cover | Gray | 360011

4

Pentair Legend Feed Mast with O-Ring | White | LLU6

4

Pentair Legend Feed Mast with O-Ring | Gray | LLU6G

5

Pentair Universal Turbine Drive Shaft Assembled | EC86

6

Pentair Legend Turbine Shaft Spacer Set | EC83

7

Pentair Universal Turbine Bearing | EC80

8

Pentair Turbine Shaft Shield | White | EA40

9

Pentair Turbine Cover with Elbow for Automatic Pool Cleaner | EC110

10

Pentair Venturi Jet Hose 7-3/4" | Gray | LLC120G

10

Pentair Legend Turbine Cover Hose | EC120

11

Pentair Legend Sweep Hose Complete | Gray | LLB5G

11

Pentair Letro Universal Sweep Hose | EB5L

12

Pentair Wear Rings for Automatic Pool Cleaner 5-Pack | EB10

13

Pentair Sweep Hose Jets with Collar for Automatic Pool Cleaner | White | EB25

13

Pentair Sweep Hose Jet with Collar | LLB25PM

14

Pentair Legend Sweep Hose Adjustment Screw Stainless Steel | 370198

15

Pentair White Ballast Float for Automatic Pool Cleaner | EA20

15

Pentair Platinum Ballast Float Gray | LLA20G

16

Pentair Universal Hose Sleeve W/O Insert 4PK | EH07

16

Pentair Hose Sleeve Sweep Hose | 4PK Gray | LLH07PM

17

Pentair Letro Legend, Legend II, LX2000, Platinum Replacement Cleaner Coarse Mesh Bag with Snaplock | EU15

17

Pentair Universal Coarse Mesh Cleaner Bag Grey | EU15G

18

Pentair Krauly Mechanical Lock Fine Mesh Bag | Gray | 360009

18

Pentair Legend Fine Mesh Bag | White | EU16

18

Pentair Fine Mesh Bag | Gray Platinum | EU16G

18

Pentair Letro Legend, Legend II, LX2000, & Platinum Replacement Cleaner Debris Bag with Snaplock | 360002

19

Pentair Universal Debris Valve | EU9

20

Pentair O-Ring F-Feed Mast | EU7

21

Pentair Jet Vac O-Ring Pusher Jet | E18

22

Pentair Legend Thrust Jet 2PK | EC130

23

Pentair Thrust Jet Plate | Gray | LLC135G

23

Pentair Pool Cleaner Thrust Jet Plate | EC135

24

Pentair Large Wheel Axle | EC65

25

Pentair Axle Plate | EC70

26

Pentair Axle Screw with Lock Washer | 370258Z

27

Pentair Wheel For Legend Cleaner | 360006

28

Pentair Wheel Bearing for Automatic Pool Cleaner | EC60

29

Pentair Universal (PK Only) Wheel Screw 5PK | EC55

29

Pentair Wheel Screw Platinum 5pk Gray | LLC55PM

30

Pentair Universal Back Up Valve Complete | E10

30

Pentair Platinum Back-Up Valve Gray | LL10PM

31

Pentair Letro Legend Pool Cleaner White Tire | 360007

31

Pentair Legend Tire | Gray | 360012

32

Pentair Polaris Sweep Hose Attach Clamp 2pk | EB15

33

Pentair Universal Screw for Automatic Pool Cleaner 10-Pack | EC40

34

Pentair Legend Hub Cap | Gray | 360013

34

Pentair Legend Hub Cap | 360005

35

Platinum Soft Feed Hose 7'-8" Gray | LLD50PM

35

Pentair Polaris Hose Feed 10' Soft Clear | LD50

36

Pentair Universal Float Feed Line | ED10P

36

Pentair Platinum Float Feed Line in Grey | LLD10PM

37

Pentair Pool Cleaner Feed Hose 10' | White | LLD45

37

Pentair Platinum Feed Hose 11'-2" | Gray | LLD45PM

38

Pentair Universal Swivel | ED05

38

Pentair Platinum Swivel Feed Line in Grey | LLD05PM

39

Pentair Legend Adaptor Hose 8.5" Length | White | LLU1

39

Pentair Kreepy Krauly Adapter Hose 8-1/2" | Gray | LLU1PM

40

Pentair Platinum Mender Nut in Grey 2 Pack | LLD15PM

40

Pentair Plastic Feed Hose Mender Nut Replacement for Automatic Pool Cleaner 2-Pack | ED15

41

Pentair Platinum Wall Fitting Complete Gray | LLW22PM

41

Pentair Pool Cleaner Wall Fitting Pressure Relief Valve | E25

41

Pentair Letro Platinum Pressure Relief Valve in Grey | LL25PM

41

Pentair Universal W/Pres Relief Wall Ftg Quick Disconnect | EW22

42

Pentair Letro Universal Screen for Wall Fitting | E24

43

Pentair Threaded Wall Adapter | Gray | LL23PM

43

Pentair Universal Adapter Wall Fitting Quick Disconnect | E23

44

Pentair Plastic Wheel Washer | EC64

46

Pentair Universal Back-Up Valve Gear for Automatic Pool Cleaner | EG15

47

Pentair Legend Thrust Jet Repair Kit | Gray | 360014

47

Pentair Kit Thrust Jet Repair | EC131

48

Pentair Screw Replacement Replacement LLA30 LXA30 | 5 Pack | EA30

49

Pentair Letro Legend Hose Scrubber | 370017

50

Pentair Snap Fit Vac Tube Post | White | EU147

50

Pentair Vac Tube Snap Fit Posts | Gray | LLU147G

51

Pentair Kreepy Krauly Nut and Bolt | EU79

52

Pentair PK Only Venturi Jet 2/PK | LLU8

52

Pentair Pool Cleaner Venturi Jet | Gray | LLU8G

53

Pentair Cover To Frame Screw | EU80

N/A

Pentair Legend Complete Hose Kit | White | LL209

N/A

Pentair Letro Legend Hose Scrubber | 370017

N/A

Pentair .25" MPT MPV Bottom Mount Pressure Gauge | 15060- 0000T

N/A

Pentair Jet-Vac Pressure Tester without Gauge | JVP8

N/A

Pentair Legend 4-Wheel Step Adapter | EU13

N/A

Pentair Sweep Hose Weight Replacement for Automatic Pool Cleaner | EH09C
