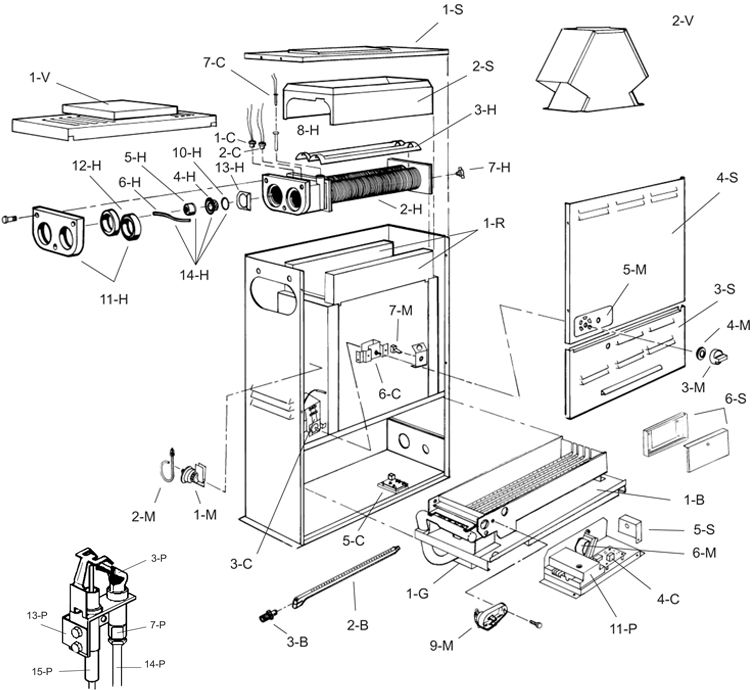

Raypak Versa 55k BTU Above Ground & Spa Heater | Electronic Ignition | Propane | B-R055B-EP 004687 B-M055B-EP 010437 Parts Schematic
1-B
Raypak Burner Tray with Burners Model 055B | 004688F
Raypak Burner Tray with Burners Model 055B | 004688F
Quantity:
$232.62

1-C
Raypak Hi-Limit Control Switch 135 Degree | 600889B
Raypak Hi-Limit Control Switch 135 Degree | 600889B
Quantity:
$41.77

2-C
Raypak Hi-Limit Control Switch 140 Degree | 600890B
Raypak Hi-Limit Control Switch 140 Degree | 600890B
Quantity:
$41.77

4-C
Raypak Heaters Versa IID PC Board | 005086B
Raypak Heaters Versa IID PC Board | 005086B
Quantity:
$196.97

6-C
Raypak Potentiometer Temperature Control Kit | 005087B
Raypak Potentiometer Temperature Control Kit | 005087B
Quantity:
$49.27

7-C
Raypak Temperature Sensor Kit IID Electronic Heaters | 005088B
Raypak Temperature Sensor Kit IID Electronic Heaters | 005088B
Quantity:
$65.37

9-C
Raypak Thermostat Control IID | 005390F
Raypak Thermostat Control IID | 005390F
Quantity:
$244.37

1-G
Raypak Electronic Combination Gas Valve | Natural Gas - IID Units | 003900F
Raypak Electronic Combination Gas Valve | Natural Gas - IID Units | 003900F
Quantity:
$250.38

1-G
Raypak Electronic Combination Gas Valve | Propane Gas - IID Units | 004306F
Raypak Electronic Combination Gas Valve | Propane Gas - IID Units | 004306F
Quantity:
$263.31

1-H
Raypak Heat Exchanger Complete with Headers Versa 055 | 004694F
Raypak Heat Exchanger Complete with Headers Versa 055 | 004694F
Quantity:
$557.69

2-H
Raypak Versa 055B Tube Bundle with Front and Rear Headers | 004695F
Raypak Versa 055B Tube Bundle with Front and Rear Headers | 004695F
Quantity:
$423.01

3-H
004715F KIT-HT EX BAFFLE 53/53A
004715F KIT-HT EX BAFFLE 53/53A
Quantity:
$62.67

4-H
Raypak Unitherm Governor | 600885
Raypak Unitherm Governor | 600885
Quantity:
$58.87

5-H
RAYPAK 400734 UG CAP
RAYPAK 400734 UG CAP
Quantity:
$14.19

6-H
RAYPAK 850247 UG SPRING
RAYPAK 850247 UG SPRING
Quantity:
$6.21

7-H
Raypak Drain Valve | 013793F
Raypak Drain Valve | 013793F
Quantity:
$27.50

8-H
Raypak Bulb Sensor Well Kit | 007211F
Raypak Bulb Sensor Well Kit | 007211F
Quantity:
$35.59

9-H
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$18.01

10-H
Raypak Versa 055A Unitherm Governor Gasket | 800276
Raypak Versa 055A Unitherm Governor Gasket | 800276
This item has been discontinued.

11-H
Raypak Inlet/Outlet Flange | 002432F
Raypak Inlet/Outlet Flange | 002432F
Quantity:
$71.43

12-H
Raypak Flange Gasket Set | 2 Gaskets Included | 800013B
Raypak Flange Gasket Set | 2 Gaskets Included | 800013B
Quantity:
$27.50

13-H
RAYPAK 306079 BAFFLE HEAT EXCH BYPASS 055B
RAYPAK 306079 BAFFLE HEAT EXCH BYPASS 055B
Quantity:
$26.82

14-H
Raypak Unitherm Governor Assembly 33/R33 | 002546F
Raypak Unitherm Governor Assembly 33/R33 | 002546F
Quantity:
$70.76

1-M
Raypak Heater Pressure Switch | 062237B
Raypak Heater Pressure Switch | 062237B
Quantity:
$62.67

2-M
Raypak Pressure Switch Tube Assembly 53B | 003543F
Raypak Pressure Switch Tube Assembly 53B | 003543F
Quantity:
$61.32

3-M
Raypak Thermostat Knob Kit 47 | 006885F
Raypak Thermostat Knob Kit 47 | 006885F
Quantity:
$34.30

4-M
Raypak Knob Stop | 006886F
Raypak Knob Stop | 006886F
Quantity:
$37.96

5-M
900742 DIAL PLATE ELECTRIC IID
900742 DIAL PLATE ELECTRIC IID
Quantity:
$35.42

6-M
Raypak Transformer 120V/240V/24V | 006736F
Raypak Transformer 120V/240V/24V | 006736F
Quantity:
$79.59

7-M
Raypak 650595 Toggle Switch Single 53B
Raypak 650595 Toggle Switch Single 53B
Quantity:
$26.95

8-M
004011F WIRE HARNESS IID VERSA 055A
004011F WIRE HARNESS IID VERSA 055A
Quantity:
$88.28

9-M
Raypak Thermal Cutoff For Versa | 008126F
Raypak Thermal Cutoff For Versa | 008126F
Quantity:
$37.24

10-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
This item has been discontinued.

10-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
This item has been discontinued.

3-P
Raypak Pilot | Natural Gas & Propane - IID Units | 002003F
Raypak Pilot | Natural Gas & Propane - IID Units | 002003F
Quantity:
$72.31

7-P
Raypak Pilot Orifice | Natural Gas - IID Units | 003903F
Raypak Pilot Orifice | Natural Gas - IID Units | 003903F
Quantity:
$35.11

7-P
Raypak Pilot Orifice | Propane Gas - IID Units | 004308F
Raypak Pilot Orifice | Propane Gas - IID Units | 004308F
Quantity:
$22.81

11-P
Raypak Electronic Ignition Control with Lockout Natural Gas | 004817B
Raypak Electronic Ignition Control with Lockout Natural Gas | 004817B
Quantity:
$174.44

11-P
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Quantity:
$176.29

13-P
004717F KIT-PILOT BRKT.IID 53A/055B
004717F KIT-PILOT BRKT.IID 53A/055B
Quantity:
$68.74

13-P
Raypak Pilot Tube | 004078F
Raypak Pilot Tube | 004078F
Quantity:
$16.54

15-P
RAYPAK 002654B HI TENSION WIRE IID VERSA 055A
RAYPAK 002654B HI TENSION WIRE IID VERSA 055A
Quantity:
$50.93

15-P
Raypak High Tension Wire with Electrode | 007864F
Raypak High Tension Wire with Electrode | 007864F
A Replacement is available for this item.
This item has been discontinued.

1-R
Raypak Refractory Block Kit 53B | 003544F
Raypak Refractory Block Kit 53B | 003544F
Quantity:
$124.86

4-S
003791F UPPER JACKET CONTROL PANEL
003791F UPPER JACKET CONTROL PANEL
Quantity:
$79.66

6-S
Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 55K BTU Models | 006492
Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 55K BTU Models | 006492
Quantity:
$92.77

1-V
Raypak Outdoor Stackless Top for Versa 55 Heater Cool Dark Grey 003709 | 013897
Raypak Outdoor Stackless Top for Versa 55 Heater Cool Dark Grey 003709 | 013897
This item has been discontinued.

2-V
Raypak Indoor Vent Top for Versa 55 Heater | 003722
Raypak Indoor Vent Top for Versa 55 Heater | 003722
Call us to order.
