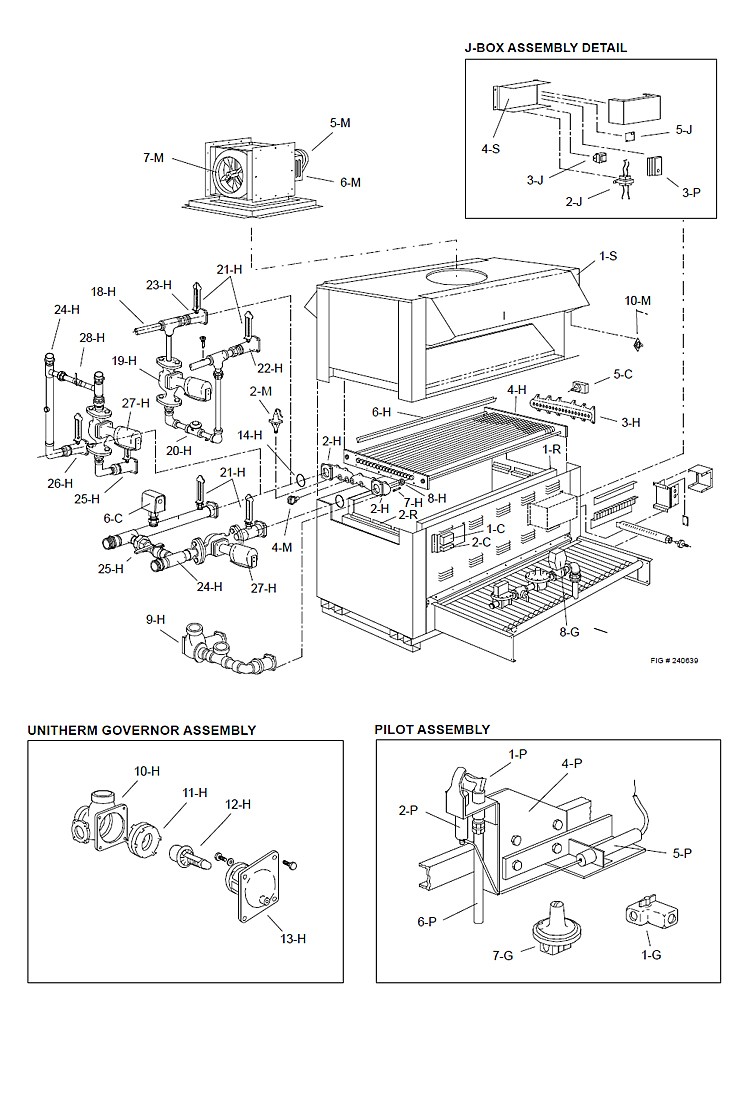

Raypak Raytherm P-4001 #36 Cold Run Commercial Indoor Swimming Pool Heater with H-Style Bypass | Propane Gas 4,000,000 BTUH | 012406 Parts Schematic
1-B
Raypak Burner Tray with Burners 4001 | 001901F
Raypak Burner Tray with Burners 4001 | 001901F
Quantity:
$3,700.34

1-B
Raypak Burner Tray without Burners | 001906F
Raypak Burner Tray without Burners | 001906F
Quantity:
$1,817.09

2-B
Raypak Burner Spacer/Hold Down Bracket | 001911F
Raypak Burner Spacer/Hold Down Bracket | 001911F
Quantity:
$372.71

3-B
Raypak Burner | 305846
Raypak Burner | 305846
Quantity:
$92.51

4-B
Raypak Liquid Propane Pilot Burner Orifice #36 | 351053F
Raypak Liquid Propane Pilot Burner Orifice #36 | 351053F
Quantity:
$22.81

1-C
Raypak Auto Dualstat | 010863F
Raypak Auto Dualstat | 010863F
Quantity:
$396.85

2-C
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Quantity:
$273.90

4-C
Raypak Switch High Gas Pressure | 007188F
Raypak Switch High Gas Pressure | 007188F
Quantity:
$177.35

5-C
Raypak Low Water Cutoff | 006202F
Raypak Low Water Cutoff | 006202F
Quantity:
$433.93

6-C
Raypak Flow Switch | 007142F
Raypak Flow Switch | 007142F
Quantity:
$208.09

7-C
007907F THERMOSTAT MECHANICAL 40-180^
007907F THERMOSTAT MECHANICAL 40-180^
Quantity:
$242.59

8-C
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit | 006040
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit  | 006040
Quantity:
$290.86

1-G
Raypak Valve Gas Manual B Kit | 007195F
Raypak Valve Gas Manual B Kit | 007195F
Quantity:
$50.25

2-G
Raypak Valve Gas Manual A Kit | 600043F
Raypak Valve Gas Manual A Kit | 600043F
Quantity:
$224.34

6-G
Raypak Regulator Propain | 003614F
Raypak Regulator Propain | 003614F
Quantity:
$1,067.75

7-G
Raypak LP Pilot Regulator 3/8" | 004061F
Raypak LP Pilot Regulator 3/8" | 004061F
Quantity:
$116.21

8-G
Raypak Motorized Safety Shut Off Actuator M-1 (Optional) | 011908F
Raypak Motorized Safety Shut Off Actuator M-1 (Optional) | 011908F
Quantity:
$1,090.65

9-G
Raypak Pilot Gas Valve | 600154
Raypak Pilot Gas Valve | 600154
Quantity:
$152.49

10-G
Raypak Switch High Gas Pressure | 007188F
Raypak Switch High Gas Pressure | 007188F
Quantity:
$177.35

1-H
Raypak Heat Exchanger Assembly | 001936F
Raypak Heat Exchanger Assembly | 001936F
Quantity:
$13,668.59

2-H
Raypak Brass 2-Pass Inlet Header | 010037F
Raypak Brass 2-Pass Inlet Header | 010037F
Quantity:
$1,179.81

3-H
Raypak Bronze 2-Pass Return Header | 001970F
Raypak Bronze 2-Pass Return Header | 001970F
Quantity:
$2,243.00

4-H
Raypak Tube Bundle | 001946F
Raypak Tube Bundle | 001946F
Quantity:
$13,340.98

5-H
Raypak Heat Exchange Tube | 001956F
Raypak Heat Exchange Tube | 001956F
Quantity:
$631.98

6-H
Raypak Baffle Kit | 001961F
Raypak Baffle Kit | 001961F
Quantity:
$448.05

7-H
Raypak Stud Bolt Kit | 001962F
Raypak Stud Bolt Kit | 001962F
Quantity:
$99.80

8-H
Raypak Header Gasket | 001054F
Raypak Header Gasket | 001054F
Quantity:
$110.80

14-H
Raypak Header Manifold O-Ring | 005891F
Raypak Header Manifold O-Ring | 005891F
Quantity:
$43.22

15-H
350338 350338 SENSOR WELL 1/2" RAY
350338 350338 SENSOR WELL 1/2
Quantity:
$20.86

16-H
Raypak Sensor Well 5/8" | 350337
Raypak Sensor Well 5/8" | 350337
Quantity:
$13.55

17-H
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$18.01

19-H
Raypak Bypass Pump Br 1/4 HP 4.5" Impeller | 007226F
Raypak Bypass Pump Br 1/4 HP 4.5" Impeller | 007226F
Quantity:
$1,382.12

21-H
600133 THERMOMETER BRASS VERTICAL
600133 THERMOMETER BRASS VERTICAL
Quantity:
$91.81

22-H
Raypak Bypass Adapter-Inlet Flange | 005592F
Raypak Bypass Adapter-Inlet Flange | 005592F
Quantity:
$157.26

23-H
Raypak Bypass Adapter Outlet | 005591F
Raypak Bypass Adapter Outlet | 005591F
Quantity:
$484.35

24-H
Raypak Recirculating Assembly | 007749F
Raypak Recirculating Assembly | 007749F
Quantity:
$4,908.85

25-H
Raypak Bypass Adapter Outlet | 005591F
Raypak Bypass Adapter Outlet | 005591F
Quantity:
$484.35

26-H
Raypak Recirculating Adapter Outlet | 007866F
Raypak Recirculating Adapter Outlet | 007866F
Quantity:
$156.93

27-H
Raypak Pump In Line 2HP | 012317F
Raypak Pump In Line 2HP | 012317F
Quantity:
$2,553.72

29-H
001967F INLET/OUTLET HEADER 2100-4001
001967F INLET/OUTLET HEADER 2100-4001
Quantity:
$879.88

29-H
Raypak Flange Gasket 2" or 2 1/2" NPT | 012596F
Raypak Flange Gasket 2" or 2 1/2" NPT | 012596F
Quantity:
$46.41

30-H
Raypak Pump Flange Gasket 4 Bolt | 014000F
Raypak Pump Flange Gasket 4 Bolt | 014000F
Quantity:
$83.18

1-J
Raypak J-Box | 002615F
Raypak J-Box | 002615F
Quantity:
$960.17

1-J
Raypak J-Box with Pump Relay | 005590F
Raypak J-Box with Pump Relay | 005590F
Quantity:
$796.53

2-J
Raypak Transformer for Hi-Delta Series | 006533F
Raypak Transformer for Hi-Delta Series | 006533F
Quantity:
$64.69

3-J
Raypak Relay SPDT 24V | 007377F
Raypak Relay SPDT 24V | 007377F
Quantity:
$66.04

3-J
Raypak Relay SPDT 120V | 008145F
Raypak Relay SPDT 120V | 008145F
Quantity:
$137.65

4-J
Raypak Toggle Switch Kit (SPST) | 008079F
Raypak Toggle Switch Kit (SPST) | 008079F
Quantity:
$40.94

4-J
Raypak Toggle Switch DPST | 650958
Raypak Toggle Switch DPST | 650958
Quantity:
$10.15

5-J
Raypak Pump Relay PC Board | 004675F
Raypak Pump Relay PC Board | 004675F
Quantity:
$139.11

1-M
Raypak Heater Pressure Switch | 062237B
Raypak Heater Pressure Switch | 062237B
Quantity:
$62.67

2-M
Raypak PRV 125 PSI | 012312F
Raypak PRV 125 PSI | 012312F
Quantity:
$229.85

3-M
Raypak Deliming Kit | 052870F
Raypak Deliming Kit | 052870F
Quantity:
$351.18

4-M
Raypak Temperature & Pressure Gauge Kit | 007399F
Raypak Temperature & Pressure Gauge Kit | 007399F
Quantity:
$63.35

5-M
Raypak Power Vent Motor | 951156F
Raypak Power Vent Motor | 951156F
Quantity:
$1,818.06

6-M
Raypak Power Vent Motor Drive Belt | 951158F
Raypak Power Vent Motor Drive Belt | 951158F
Quantity:
$55.84

8-M
Raypak Power Vent Shaft/Bearing Assembly | 951162F
Raypak Power Vent Shaft/Bearing Assembly | 951162F
Quantity:
$1,091.16

9-M
Raypak D-2 Power Vent PC Board | 005503F
Raypak D-2 Power Vent PC Board | 005503F
Quantity:
$137.05

10-M
Raypak Power Vent Flue Sensor | 006433F
Raypak Power Vent Flue Sensor | 006433F
Quantity:
$47.02

11-M
Raypak Pump Contactor DPST 120VAC | 007906F
Raypak Pump Contactor DPST 120VAC | 007906F
Quantity:
$68.89

12-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
This item has been discontinued.

12-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
This item has been discontinued.

12-M
Raypak Touch-Up Paint | Cool Dark Gray | 750256
Raypak Touch-Up Paint | Cool Dark Gray | 750256
This item has been discontinued.

1-P
Raypak Pilot Pro. IID | 002085F
Raypak Pilot Pro. IID | 002085F
Quantity:
$117.44

2-P
Raypak Propane Gas Pilot Orifice | 600894
Raypak Propane Gas Pilot Orifice | 600894
Quantity:
$24.18

3-P
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Quantity:
$176.29

4-P
Raypak Pilot Mounting Bracket | 305847
Raypak Pilot Mounting Bracket | 305847
This item has been discontinued.

5-P
Raypak Ignition Wire IID | 016514F
Raypak Ignition Wire IID | 016514F
Quantity:
$69.47

6-P
400013 PILOT TUBE ALUM 1/4"OD x .035"
400013 PILOT TUBE ALUM 1/4
Quantity:
$4.88

7-P
Raypak High Tension Wire 334-824 | 002663B
Raypak High Tension Wire 334-824 | 002663B
Quantity:
$55.00

1-R
Raypak Refractory Kit - Insulation Brick Set | 001975F
Raypak Refractory Kit - Insulation Brick Set | 001975F
Quantity:
$1,281.76

2-R
Raypak Refractory Retainer Kit | 001980F
Raypak Refractory Retainer Kit | 001980F
Quantity:
$382.73

3-R
Raypak Heat Shield | 010226F
Raypak Heat Shield | 010226F
Quantity:
$55.84

1-S
Raypak Draft Hood Top Assembly | 002083F
Raypak Draft Hood Top Assembly | 002083F
Quantity:
$2,600.32
