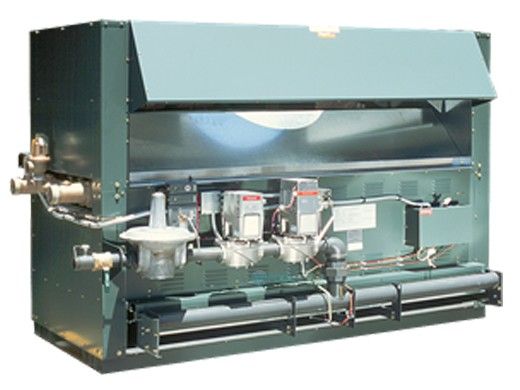

Raypak's Raytherm® line of atmospheric pool heaters offers rugged construction and simple operation at low cost. Ideal for: Clubs. Universities. Municipalities. Watersport Centers. Large residential pools.
BASIC DATA
Model
Number |
Full Input BTUH |
Indoor Stack
Dia. |
Bypass Options |
H-Style Bypass |
None (Field-Supplied) |
CWR |
P-2100 |
2,100,000 |
24" |
STD |
Yes |
Yes |
P-2500 |
2,499,000 |
26" |
STD |
Yes |
Yes |
P-3001 |
3,000,000 |
28" |
STD |
Yes |
Yes |
P-3500 |
3,500,000 |
30" |
STD |
Yes |
Yes |
P-4001 |
4,000,000 |
32" |
STD |
Yes |
Yes |
Features:
Rugged All-Brass Headers
Resist corrosion, and are easily removed for inspection or service. AB 1953 Low-lead Compliant.
Cupro-nickel Finned-tube Heat Exchanger
Single bank, straight through design delivers lowest pressure drop. Integral fins have ten times the heat transfer surface of plain tubes. Cupro-nickel tubes provide superior chemical resistance over copper for tough commercial installations.
Certified to ANSI Z21.56
On-off Operation
Corrosion Resistant Steel
Fittings are brush galvanized against rust. Heat shields are corrosion-resistant steel. Jacket has Polytuf powder coat finish.
24-Volt Controls
Are totally enclosed for protection. Cover is easily removed for inspection and service.
Floating Return Header
Immunizes heat exchanger to thermal shock.
Tube Sheet and "O" Ring Construction
eliminates the repair and maintenance problems associated with rolling tubes directly into a casting.
Interlocking Refractory Panels
Sealed corners reduce radiation losses.
Stainless Steel Burners
Maintain precise combustion burn quietly and won't clog or corrode.
Slide-out Burner Tray
Allows easy inspection and service.
Spark-to-Pilot Ignition
The most dependable ignition method available.
Available for natural gas or propane.
By-Pass Pump...For models P-1287 thru P-4001, a properly designed bypass pump is used to control the temperature of the water entering the heater to avoid condensation and scaling.
Dual Gas Valves...For safety.
Stainless Steel Burners...Can't clog or corrode.
Slide-out Burner Tray...For easy inspection
