Home Raypak Heat Pump 133K BTU | Titanium Heat Exchanger | Analog Controls | 013334 013338 | M8350ti-A Parts
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Raypak Heat Pump 133K BTU | Titanium Heat Exchanger | Analog Controls | 013334 013338 | M8350ti-A Parts

Back to Product

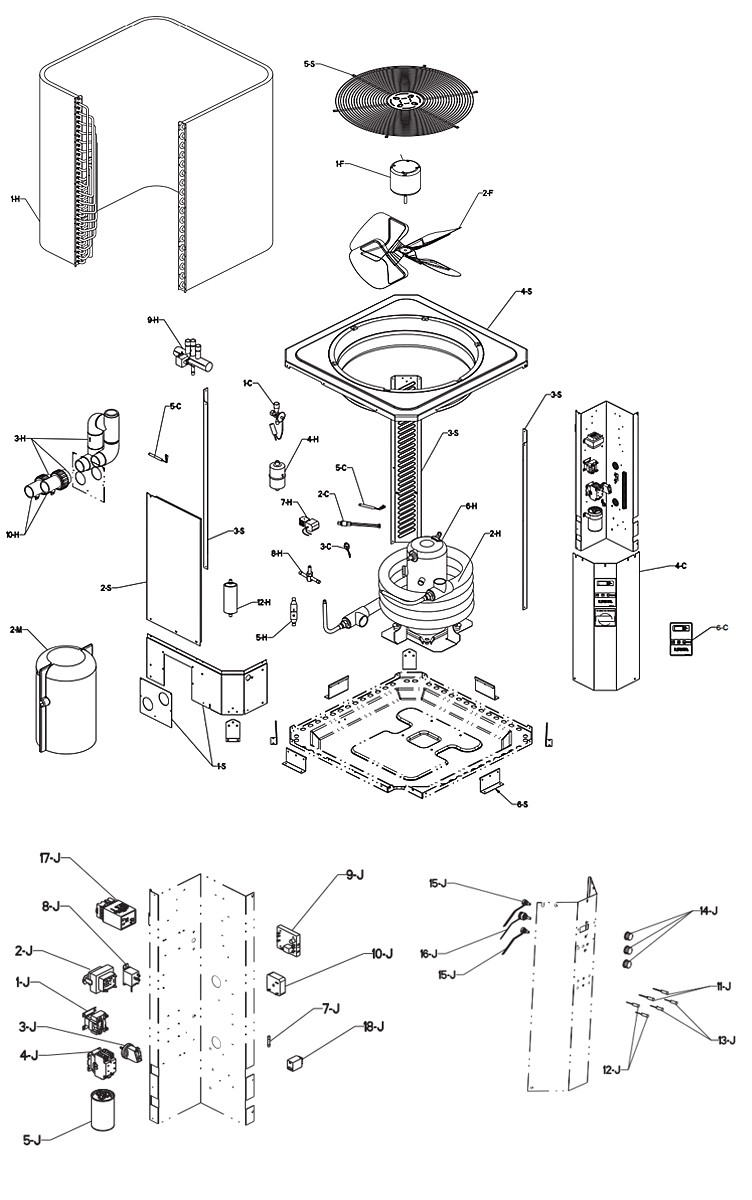

Raypak Heat Pump 133K BTU | Titanium Heat Exchanger | Analog Controls | 013334 013338 | M8350ti-A Parts Schematic
1C
Raypak 12 Ton TX Valve | H000077
Raypak 12 Ton TX Valve | H000077
Quantity:
$319.17

1C
Raypak Tx Valve 8 Ton | H000173
Raypak Tx Valve 8 Ton | H000173
Quantity:
$213.49

2C
Raypak Low Pressure Switch | H000078
Raypak Low Pressure Switch | H000078
Quantity:
$64.02

3C
Raypak High Pressure Switch | H000079
Raypak High Pressure Switch | H000079
Quantity:
$61.32

4C
Raypak Control Cover Analog | Warm Dark Gray | H000225
Raypak Control Cover Analog | Warm Dark Gray | H000225
Quantity:
$114.24

5C
Raypak Temperature Sensor | 10K | H000002
Raypak Temperature Sensor | 10K | H000002
Quantity:
$64.69

1H
Raypak Evaporator Coil | H000020
Raypak Evaporator Coil | H000020
Quantity:
$2,050.83

2H
Raypak Heat Exchanger 8350 Kit | H000024
Raypak Heat Exchanger 8350 Kit | H000024
Quantity:
$2,097.34

3H
Raypak 5350 Heat Pump Bypass Assy | H000042
Raypak 5350 Heat Pump Bypass Assy | H000042
Quantity:
$248.98

4H
Raypak Liquid Line Drier | H000011
Raypak Liquid Line Drier | H000011
Quantity:
$75.01

5H
Raypak Check Valve | H000006
Raypak Check Valve | H000006
Quantity:
$77.67

6H
Raypak 1PH Heat Pump Compressor | Three Phase | H000014
Raypak 1PH Heat Pump Compressor | Three Phase | H000014
Quantity:
$1,906.37

9H
Raypak R6350 R8350 Heat and Cool Reversing Valve H000136
Raypak R6350 R8350 Heat and Cool Reversing Valve H000136
Quantity:
$94.23

10H
Raypak PVC Union Connector Kit with Built-In Drain For Heat Transfer | H000317
Raypak PVC Union Connector Kit with Built-In Drain For Heat Transfer | H000317
Quantity:
$37.22

11H
Raypak Compressor Power Plug | H000271
Raypak Compressor Power Plug | H000271
Quantity:
$101.11

1F
Raypak Fan Motor 825 RPM | 5350 6350 8350 | H000296
Raypak Fan Motor 825 RPM | 5350 6350 8350 | H000296
Quantity:
$218.29

2F
Raypak Fan Blade 4-Blade | H000297
Raypak Fan Blade 4-Blade | H000297
Quantity:
$132.63

1J
Raypak 5350 6350 8350 Fan Relay | H000017
Raypak 5350 6350 8350 Fan Relay | H000017
This item has been discontinued.

1J
Raypak DPST Fan Relay | H000299
Raypak DPST Fan Relay | H000299
Quantity:
$42.50

2J
Raypak 5350-8350 Transformer | H000023
Raypak 5350-8350 Transformer | H000023
Quantity:
$41.06

3J
Raypak Heat Pump Water Pressure Switch | H000025
Raypak Heat Pump Water Pressure Switch | H000025
Quantity:
$46.52

4J
Raypak Contactor | 50 AMP | H000043
Raypak Contactor | 50 AMP | H000043
Quantity:
$57.28

5J
Raypak Heat Pump Capacitor | H000081
Raypak Heat Pump Capacitor | H000081
Quantity:
$79.66

5J
Raypak 3PH 80MDF 440VAC Capacitor | H000051
Raypak 3PH 80MDF 440VAC Capacitor | H000051
Quantity:
$62.67

6J
Raypak Heat Pump Digital Board | H000029
Raypak Heat Pump Digital Board | H000029
Quantity:
$323.67

7J
Raypak Heat Pump Fuse 2 AMP | 10-Pack | H000001
Raypak Heat Pump Fuse 2 AMP | 10-Pack | H000001
Quantity:
$23.72

8J
Raypak Heat Pump Control Defrost Switch | H000065
Raypak Heat Pump Control Defrost Switch | H000065
Quantity:
$74.35

9J
Raypak Heat Pump Control Board | H000035
Raypak Heat Pump Control Board | H000035
This item has been discontinued.

10J
Raypak Heat Pump Timer Delay On Break | H000019
Raypak Heat Pump Timer Delay On Break | H000019
Quantity:
$33.51

11J
Raypay LED Indicator Light | Green | H000037
Raypay LED Indicator Light | Green | H000037
Quantity:
$14.78

12J
Raypay LED Indicator Light | Amber | H000039
Raypay LED Indicator Light | Amber | H000039
Quantity:
$14.78

13J
Raypay LED Indicator Light | Red | H000041
Raypay LED Indicator Light | Red | H000041
Quantity:
$14.78

15J
Raypak Heat Pump Potentiometer | 10K | H000061
Raypak Heat Pump Potentiometer | 10K | H000061
Quantity:
$49.95

16J
Raypak Rotary Switch | H000057
Raypak Rotary Switch | H000057
Quantity:
$106.87

17J
Raypak Heat Pump Monitor | H000291
Raypak Heat Pump Monitor | H000291
Quantity:
$204.49

18J
Raypak Controler Relay | H000003
Raypak Controler Relay | H000003
Quantity:
$27.50

1M
Raypak Touch-Up Paint | Warm Dark Gray | 750258
Raypak Touch-Up Paint | Warm Dark Gray | 750258
Quantity:
$45.71

2M
Raypak Compressor Sound Cover | H000316
Raypak Compressor Sound Cover | H000316
Quantity:
$49.78

1S
Raypak Electrical Input Panel | Warm Dark Gray | H000202
Raypak Electrical Input Panel | Warm Dark Gray | H000202
Quantity:
$74.35

1S
Raypak Electrical Input Panel | Stainless Steel | H000204
Raypak Electrical Input Panel | Stainless Steel | H000204
Quantity:
$78.33

2S
Raypak Warm Dark Gray Access Panel | H000205
Raypak Warm Dark Gray Access Panel |  H000205
Quantity:
$86.30

2S
Raypak Access Panel | Stainless Steel | H000206
Raypak Access Panel | Stainless Steel | H000206
Quantity:
$89.62

3S
Raypak Corner Jacket Panel | Warm Dark Gray | H000232
Raypak Corner Jacket Panel | Warm Dark Gray | H000232
Quantity:
$89.62

3S
Raypak Corner Jacket Panel | Stainless Steel | H000217
Raypak Corner Jacket Panel | Stainless Steel | H000217
Quantity:
$42.50

4S
Raypak Jacket Top | Warm Dark Gray | H000211
Raypak Jacket Top | Warm Dark Gray | H000211
Quantity:
$160.87

4S
Raypak Jacket Top | Stainless Steel | H000209
Raypak Jacket Top | Stainless Steel | H000209
Quantity:
$160.87

5S
Raypak-Rheem-Ruud Heat Pump Fan Motor Guard | H000040
Raypak-Rheem-Ruud Heat Pump Fan Motor Guard | H000040
Quantity:
$103.73

6S
Raypak Hurricane Bracket | Metal Base | H000321
Raypak Hurricane Bracket | Metal Base | H000321
Quantity:
$17.52

6S
Raypak Hurricane Bracket | Plastic Base | H000322
Raypak Hurricane Bracket | Plastic Base | H000322
Quantity:
$37.96
