Raypak Versa 130k BTU Above Ground & Spa Heater | Millivolt | Propane | P-M130A-MP-C #59 011488 Parts

Back to Product

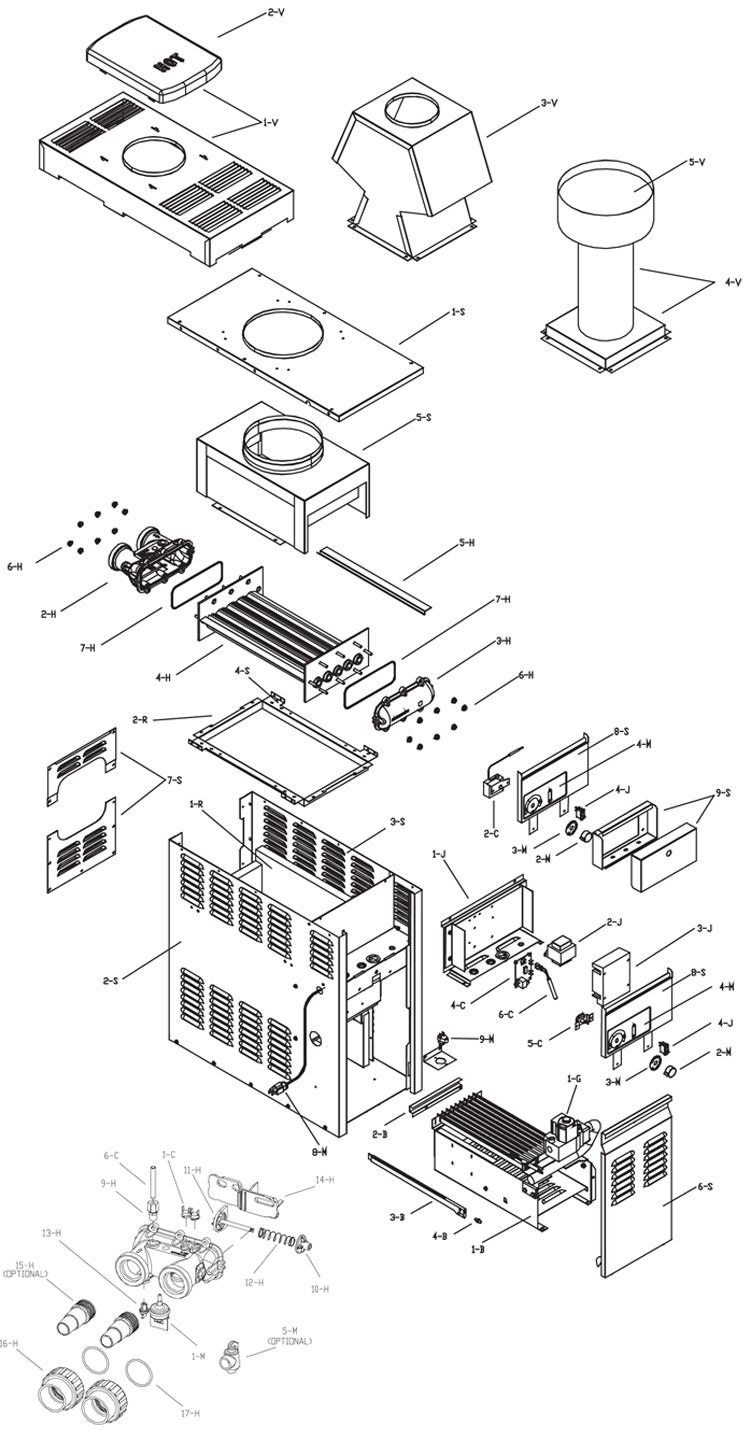

Raypak Versa 130k BTU Above Ground & Spa Heater | Millivolt | Propane | P-M130A-MP-C #59 011488 Parts Schematic
1-C
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Quantity:
$38.99

2-C
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Quantity:
$119.41

4-C
Raypak Heaters Versa IID PC Board | 005086B
Raypak Heaters Versa IID PC Board | 005086B
Quantity:
$184.81

1-G
Raypak Combination Gas Valve | Natural Gas - Millivolt Units | 011588F
Raypak Combination Gas Valve | Natural Gas - Millivolt Units | 011588F
Quantity:
$208.69

1-G
Raypak Combination Gas Valve | Propane Gas - Millivolt Units | 011589F
Raypak Combination Gas Valve | Propane Gas - Millivolt Units | 011589F
Quantity:
$375.08

1-H
Raypak Heat Exchanger Assembly Copper | 011592F
Raypak Heat Exchanger Assembly Copper | 011592F
Quantity:
$1,438.80

2-H
Raypak Inlet Outlet Header Assembly Complete 130K BTU | 011594F
Raypak Inlet Outlet Header Assembly Complete 130K BTU | 011594F
Quantity:
$390.87

3-H
Raypak Return Header Asembly 130K BTU | 011596F
Raypak Return Header Asembly 130K BTU | 011596F
Quantity:
$88.18

4-H
Raypak Tube Bundle Assembly 130K BTU Heaters Copper for Polymer Heads | 011597F
Raypak Tube Bundle Assembly 130K BTU Heaters Copper for Polymer Heads | 011597F
Quantity:
$453.65

6-H
Raypak Flange Nut Kit 1/4"-20 | 008259F
Raypak Flange Nut Kit 1/4"-20 | 008259F
Quantity:
$26.68

7-H
Raypak O-Ring Gasket Set 130K BTU Heaters | 2 Included | 011600F
Raypak O-Ring Gasket Set 130K BTU Heaters | 2 Included | 011600F
Quantity:
$35.42

8-H
Raypak Stainless Steel Sensor Well | Millivolt Units with Capron Header | 006805F
Raypak Stainless Steel Sensor Well | Millivolt Units with Capron Header | 006805F
Quantity:
$47.08

10-H
Raypak Bypass Valve for Capron Header Heaters | 006716F
Raypak Bypass Valve for Capron Header Heaters | 006716F
Quantity:
$35.99

11-H
Raypak Capron Bypass Shaft/Dam | 006717F
Raypak Capron Bypass Shaft/Dam | 006717F
Quantity:
$45.39

13-H
Raypak Capron Drain Plug | R185A - R405A | 006721F
Raypak Capron Drain Plug | R185A - R405A | 006721F
Quantity:
$21.87

16-H
Raypak 2" CPVC Connector & Nut Kit | 006723F
Raypak  2" CPVC Connector & Nut Kit | 006723F
Quantity:
$59.36

17-H
Raypak 2" O-Ring Kit | 006724F
Raypak 2" O-Ring Kit | 006724F
Quantity:
$30.29

1-J
Raypak Control Box Kit | 011604F
Raypak Control Box Kit | 011604F
Quantity:
$490.44

3-J
Raypak Electronic Ignition Control | 011606F
Raypak Electronic Ignition Control | 011606F
Quantity:
$193.31

4-J
Raypak Rocker Switch | 009493F
Raypak Rocker Switch | 009493F
Quantity:
$30.80

1-M
Raypak Pressure Switch 1.75 PSI | 006737F
Raypak Pressure Switch 1.75 PSI | 006737F
Quantity:
$51.00

1-M
Raypak Pressure Switch 11 PSI | 009133F
Raypak Pressure Switch 11 PSI | 009133F
Quantity:
$58.63

2-M
Raypak R185B-R405B Thermostat Knob | 800307
Raypak R185B-R405B Thermostat Knob | 800307
Call us to order.

3-M
Raypak Knob Stop | 006886F
Raypak Knob Stop | 006886F
Quantity:
$14.78

5-M
Raypak Pressure Relief Valve 125 PSI | 008091F
Raypak Pressure Relief Valve 125 PSI | 008091F
Quantity:
$70.76

6-M
Raypak Deliming Kit | 052871F
Raypak Deliming Kit | 052871F
Quantity:
$243.76

9-M
Raypak Thermal Fuse | 005899F
Raypak Thermal Fuse | 005899F
Quantity:
$42.76

10-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
Quantity:
$45.71

10-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
Quantity:
$73.51

1-P
Raypak Pilot | Natural Gas - Millivolt Units | 600525B
Raypak Pilot | Natural Gas - Millivolt Units | 600525B
Quantity:
$96.51

1-P
Raypak Pilot | Propane Gas - Millivolt Units | 600575B
Raypak Pilot | Propane Gas - Millivolt Units | 600575B
Quantity:
$94.55

2-P
Raypak Pilot Orifice | Natural Gas - Millivolt Units | 003901F
Raypak Pilot Orifice |  Natural Gas - Millivolt Units | 003901F
Quantity:
$14.78

2-P
Raypak Pilot Orifice | Propane Gas - Millivolt Units | 003902F
Raypak Pilot Orifice | Propane Gas - Millivolt Units | 003902F
Quantity:
$42.89

3-P
Raypak Pilot Generator | Millivolt Units | 600019B
Raypak Pilot Generator | Millivolt Units | 600019B
Quantity:
$64.02

6-P
Raypak Pilot Tube | 004078F
Raypak Pilot Tube | 004078F
Quantity:
$10.50

9-S
Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 55K BTU Models | 006492
Raypak Rheem Poolstat Thermostat Cover and Lock Kit | 55K BTU Models | 006492
Quantity:
$50.65

3-V
Raypak Indoor Drafthood Heater Stacktop for Versa 130A 155A Model Heaters | 003723
Raypak Indoor Drafthood Heater Stacktop for Versa 130A 155A Model Heaters | 003723
Quantity:
$91.31

4-V
Raypak Versa High Wind Outdoor Stack | 004301
Raypak Versa High Wind Outdoor Stack | 004301
Quantity:
$129.40
