Home Pool Pool & Spa Heaters Pentair & Sta-Rite Pool & Spa Heaters Sta-Rite Max-E-Therm Low NOx Pool Heater Cupro Nickel Dual Electronic Ignition Digital Display Natural Gas 200,000 BTU SR200HD Parts

Sta-Rite Max-E-Therm Low NOx Pool Heater Cupro Nickel Dual Electronic Ignition Digital Display Natural Gas 200,000 BTU SR200HD Parts

Back to Product

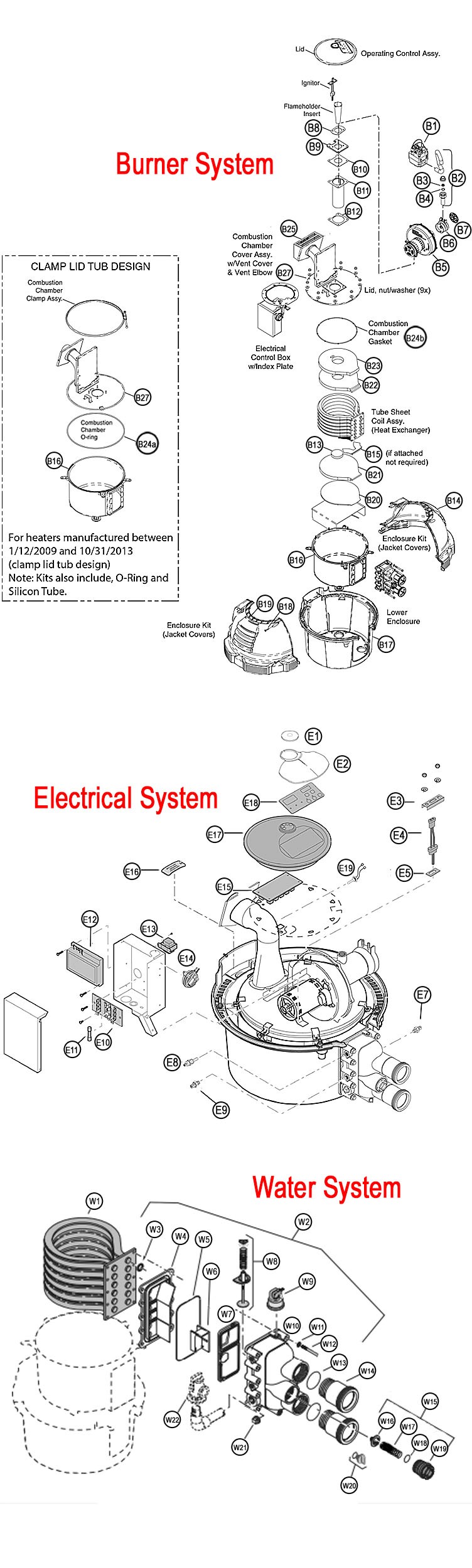

Sta-Rite Max-E-Therm Low NOx Pool Heater Cupro Nickel Dual Electronic Ignition Digital Display Natural Gas 200,000 BTU SR200HD Parts Schematic
B1
Pentair MasterTemp & Sta-Rite Max-E-Therm Combination Gas Valve Kit | 42001-0051S
Pentair MasterTemp & Sta-Rite Max-E-Therm Combination Gas Valve Kit | 42001-0051S
Quantity:
$372.22

B2
Pentair Union Burner System | 3/4" | 38404-4097S
Pentair Union Burner System | 3/4" | 38404-4097S
Quantity:
$40.33

B5
Pentair Max-E-Therm Air Blower Kit | 77707-0251
Pentair Max-E-Therm Air Blower Kit | 77707-0251
Quantity:
$690.61

B6 & B7
Pentair Max-E-Therm Air Orifice Kit | 77707-0111
Pentair Max-E-Therm Air Orifice Kit | 77707-0111
Quantity:
$67.05

B08,B09,B10,B12
Pentair Blower/Adapter Plate Gasket Kit | 77707-0011
Pentair Blower/Adapter Plate Gasket Kit | 77707-0011
Quantity:
$66.04

B10,B11,B12,B13
Pentair MasterTemp Flameholder Kit | 175K & 200K BTU | 77707-0202
Pentair MasterTemp Flameholder Kit | 175K & 200K BTU | 77707-0202
Quantity:
$137.76

B13,B15,B23,B24,B25,B26
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Insulation Kit | 77707-0008
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Insulation Kit | 77707-0008
Quantity:
$140.37

B14
Pentair Star-Rite Max-E-Therm Upper Right-Hand Enclosure Kit | 77707-0002
Pentair Star-Rite Max-E-Therm Upper Right-Hand Enclosure Kit | 77707-0002
Quantity:
$201.03

B16
Pentair Max-E-Therm Combustion Chamber | 474095
Pentair Max-E-Therm Combustion Chamber | 474095
This item has been discontinued.

B16
Pentair Combustion Chamber Assembly | 474957
Pentair Combustion Chamber Assembly | 474957
Quantity:
$361.18

B17
Pentair Max-E-Therm Lower Enclosure | 42001-0001S
Pentair Max-E-Therm Lower Enclosure | 42001-0001S
Quantity:
$433.18

B19
Pentair Star-Rite Max-E-Therm Upper Left-Hand Enclosure Kit | Natural Gas | 77707- 3200N
Pentair Star-Rite Max-E-Therm Upper Left-Hand Enclosure Kit | Natural Gas | 77707- 3200N
Quantity:
$206.67

B24a
Pentair Tub O-Ring Kit | Between 1/12/09 and 10/31/13 | 474201
Pentair Tub O-Ring Kit | Between 1/12/09 and 10/31/13 | 474201
This item has been discontinued.

B27
Pentair Elbow/Combustion Chamber Cover Assembly After 01/12/19 | Metal | 474094
Pentair Elbow/Combustion Chamber Cover Assembly After 01/12/19 | Metal | 474094
This item has been discontinued.

B27
Pentair Combustion Chamber Cover | 474958
Pentair Combustion Chamber Cover | 474958
Quantity:
$409.95

B28
Pentair Metal Vent Cover | 42002-0005S
Pentair Metal Vent Cover | 42002-0005S
Quantity:
$128.67

B29 (n/s)
Pentair Lower Enclosure Insulation Kit | 42001-0074S
Pentair Lower Enclosure Insulation Kit | 42001-0074S
Quantity:
$56.14

E1
Pentair Display Cover Retainer Cap Kit for Max-E-Therm Heater | 77707-0009
Pentair Display Cover Retainer Cap Kit for Max-E-Therm Heater | 77707-0009
Quantity:
$73.08

E2
Pentair Sta-Rite Max-E-Therm Plastic Display Cover | 42001-0008S
Pentair Sta-Rite Max-E-Therm Plastic Display Cover | 42001-0008S
Quantity:
$42.86

E3
Pentair Igniter Bracket | 42001-0030S
Pentair Igniter Bracket | 42001-0030S
Quantity:
$55.20

E4
Pentair Sta-Rite MasterTemp & Max-E-Therm Igniter with Gasket Kit | 77707-0054
Pentair Sta-Rite MasterTemp & Max-E-Therm Igniter with Gasket Kit | 77707-0054
Quantity:
$62.91

E5
Pentair MasterTemp Electrical System Igniter Gasket | 42001-0066S
Pentair MasterTemp Electrical System Igniter Gasket | 42001-0066S
Quantity:
$55.20

E7
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Gas Shutoff (AGS) Switch | 42002-0025S
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Gas Shutoff (AGS) Switch | 42002-0025S
Quantity:
$52.63

E8
Pentair MasterTemp & Sta-Rite Max-E-Therm High Limit Switch | 42001-0063S
Pentair MasterTemp & Sta-Rite Max-E-Therm High Limit Switch | 42001-0063S
Quantity:
$63.51

E9
Pentair Thermistor Temperature Sensor Max-E-Therm & MasterTemp | 42001-0053S
Pentair Thermistor Temperature Sensor Max-E-Therm & MasterTemp | 42001-0053S
Quantity:
$79.89

E10
Pentair MasterTemp & Sta-Rite Max-E-Therm Terminal Board | 42001-0056S
Pentair MasterTemp & Sta-Rite Max-E-Therm Terminal Board | 42001-0056S
Quantity:
$55.20

E11
Pentair Firemans Switch Fuse | 1.25A 1.25in | 32850-0099
Pentair Firemans Switch Fuse | 1.25A 1.25in | 32850-0099
Quantity:
$12.71

E12
Pentair MasterTemp Max-E-Therm Ignition Control Module | 42001-0052S | 476223
Pentair MasterTemp Max-E-Therm Ignition Control Module | 42001-0052S | 476223
Quantity:
$305.89

E13
Pentair MasterTemp & Max-E-Therm Heater Dual Voltage Transformer Kit | 115/230V | 42001-0107S
Pentair MasterTemp & Max-E-Therm Heater Dual Voltage Transformer Kit | 115/230V | 42001-0107S
Quantity:
$69.26

E14
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Flow Switch | 42001-0061S
Pentair MasterTemp & Sta-Rite Max-E-Therm Air Flow Switch | 42001-0061S
Quantity:
$134.83

E15
Pentair Sta-Rite MasterTemp & Max-E-Therm Control Board Circuit Board Kit NG & LP | 42002-0007S
Pentair Sta-Rite MasterTemp & Max-E-Therm Control Board Circuit Board Kit NG & LP | 42002-0007S
A Replacement is available for this item.
This item has been discontinued.

E16
Pentair Sta-Rite Max-E-Therm Pool & Spa Heaters Junction Box Cover Kit | 77707-0022
Pentair Sta-Rite Max-E-Therm Pool & Spa Heaters Junction Box Cover Kit | 77707-0022
Quantity:
$55.20

E17
Sta-Rite Max-E-Therm Control Board Enclosure Membrane Panel Kit NA & LP Models | 77707-0013
Sta-Rite Max-E-Therm Control Board Enclosure Membrane Panel Kit NA & LP Models | 77707-0013
Quantity:
$269.72

E18
Pentair MasterTemp Membrane Pad Kit | 472610Z
Pentair MasterTemp Membrane Pad Kit | 472610Z
Quantity:
$115.18

E19
Pentair Sta-Rite MasterTemp & Max-E-Therm Stack Flue Sensor | 42002-0024S
Pentair Sta-Rite MasterTemp & Max-E-Therm Stack Flue Sensor | 42002-0024S
Quantity:
$115.58

W1
Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit | Model 200HD Cupro Nickel | Prior to 1-12-09 | 77707-0242
Sta-Rite Max-E-Therm Tube Sheet Coil Assembly Kit | Model 200HD Cupro Nickel | Prior to 1-12-09 | 77707-0242
Quantity:
$1,008.30

W1
Pentair Tube Sheet Coil Assembly Kit For Model 200HD | 474062
Pentair Tube Sheet Coil Assembly Kit For Model 200HD | 474062
Quantity:
$1,292.46

W2
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Manifold Assembly 175NA 175LP 200NA 200LP Models | 77707-0014
Pentair MasterTemp & Sta-Rite Max-E-Therm Heater Manifold Assembly 175NA 175LP 200NA 200LP Models | 77707-0014
Quantity:
$526.63

W2
Pentair Basic Manifold Kit | 474200
Pentair Basic Manifold Kit | 474200
Quantity:
$188.94

W3
Pentair MasterTemp Coil/Tubesheet Sealing O-Ring Kit | 77707-0117
Pentair MasterTemp Coil/Tubesheet Sealing O-Ring Kit | 77707-0117
Quantity:
$78.14

W8
Pentair MasterTemp & Sta-Rite Max-E-Therm Manifold Bypass Valve Kit | 77707-0001
Pentair MasterTemp & Sta-Rite Max-E-Therm Manifold Bypass Valve Kit | 77707-0001
Quantity:
$58.07

W9
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch | 42001-0060S
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch | 42001-0060S
Quantity:
$82.57

W9
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch Kit | Prior to 10/2012 | 473716Z
Pentair MasterTemp & Sta-Rite Max-E-Therm Water Pressure Switch Kit | Prior to 10/2012 | 473716Z
Quantity:
$223.77

W13
Pentair Max-E-Glas Dura-Glas In-Ground Pump | O-Ring | U9-266
Pentair Max-E-Glas Dura-Glas In-Ground Pump | O-Ring | U9-266
Quantity:
$7.57

W14
Pentair MasterTemp and Sta-Rite Max-E-Therm Connector Tube Kit | 77707-0017
Pentair MasterTemp and Sta-Rite Max-E-Therm Connector Tube Kit | 77707-0017
Quantity:
$55.69

W15
Pentair MasterTemp & Sta-Rite Max-E-Therm Thermal Regulator Kit | 77707-0010
Pentair MasterTemp & Sta-Rite Max-E-Therm Thermal Regulator Kit | 77707-0010
Quantity:
$103.37

W16
Pentair Sta-Rite MasterTemp and Max-E-Therm Thermal Regulator with clip | 38000-0007S
Pentair Sta-Rite MasterTemp and Max-E-Therm Thermal Regulator with clip | 38000-0007S
Quantity:
$73.08

W18
Pentair Thermal Regulator Cap O-Ring | Size: 2-326 | 2 Inch | 35505-1313
Pentair Thermal Regulator Cap O-Ring | Size: 2-326 | 2 Inch | 35505-1313
Quantity:
$10.25

W20
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Quantity:
$16.57

W21
Pentair 3/4" Pipe Plug for Max-E-Therm Heater Water System | U78-60ZPS
Pentair 3/4" Pipe Plug for Max-E-Therm Heater Water System | U78-60ZPS
Quantity:
$10.72

W22
Pentair MasterTemp Pressure Relief Valve | 50PSI | 473715Z
Pentair MasterTemp Pressure Relief Valve | 50PSI | 473715Z
Quantity:
$140.60

W23 (n/s)
Pentair Union Kit, 2 Inch Union Half x 2 Inch Slip Connection | PKG 188 PKG 188Z
Pentair Union Kit, 2 Inch Union Half x 2 Inch Slip Connection | PKG 188 PKG 188Z
Quantity:
$34.42
