Home Waterway Carefree 19" Top Mount Sand Filter | 2 Sq. Ft. 45 GPM | FS01922 Parts

Waterway Carefree 19" Top Mount Sand Filter | 2 Sq. Ft. 45 GPM | FS01922 Parts

Back to Product

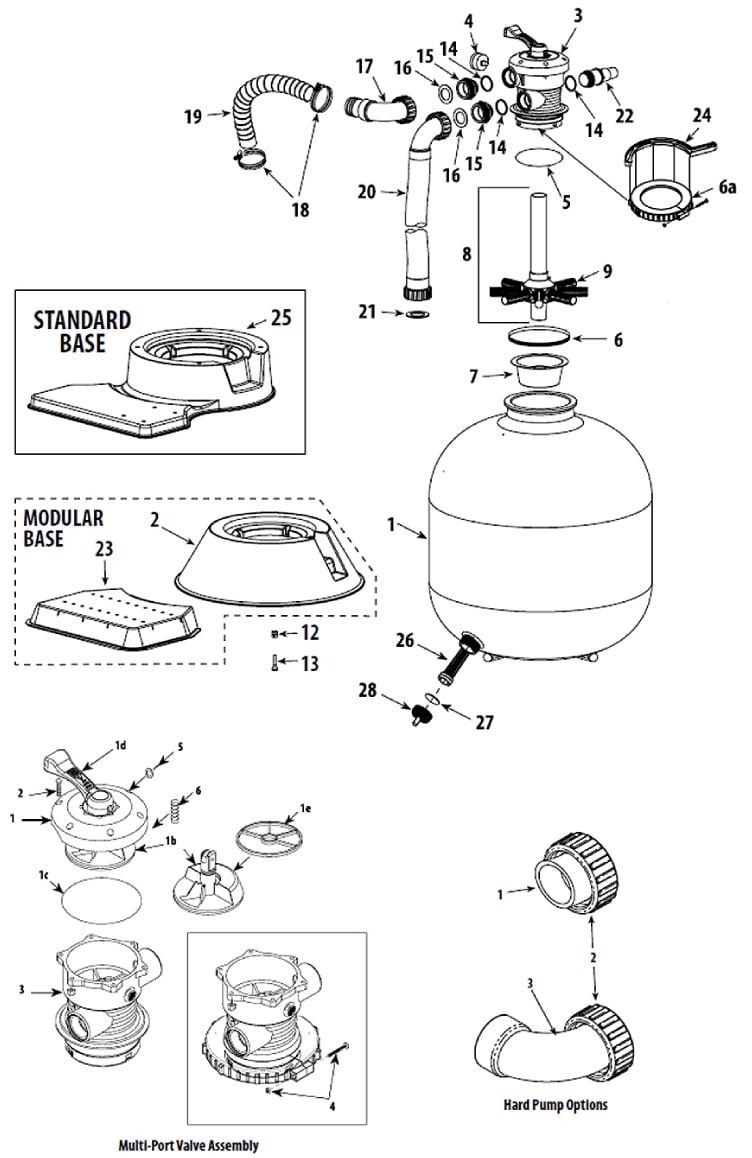

Waterway Carefree 19" Top Mount Sand Filter | 2 Sq. Ft. 45 GPM | FS01922 Parts Schematic
1
Waterway Carefree Sand Filter Body with Threaded Sleeve Assembly | 19" Oval | 505-0281B
Waterway Carefree Sand Filter Body with Threaded Sleeve Assembly | 19" Oval | 505-0281B
This item has been discontinued.
2
Waterway ClearWater/Carefree Modular Filter Base | 672-7211B
Waterway ClearWater/Carefree Modular Filter Base | 672-7211B
Quantity:
$45.59
3
Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B
Waterway 1.5" Top Mount 7-Function Split-Nut Sand Filter Backwash Valve | WVS003B
Quantity:
$92.42
4
Waterway Pressure Gauge | 830-3000B
Waterway Pressure Gauge | 830-3000B
This item has been discontinued.
5
Waterway O-Ring - Multi-Port Valve | 805-0435B
Waterway O-Ring - Multi-Port Valve | 805-0435B
Quantity:
$11.54
6
Waterway Threaded Sleeve Assembly | 505-3000B
Waterway Threaded Sleeve Assembly | 505-3000B
Quantity:
$19.39
6b
Waterway Split-Nut Assembly with Threaded Sleeve and O-Ring | 505-3020
Waterway Split-Nut Assembly with Threaded Sleeve and O-Ring | 505-3020
Quantity:
$33.79
6a
Waterway Split-Nut Assembly - Multi-Port Valve | 505-3010B
Waterway Split-Nut Assembly - Multi-Port Valve | 505-3010B
Quantity:
$21.65
7
Waterway Sand Fill Guide | 502-2011B 502-2011
Waterway Sand Fill Guide | 502-2011B 502-2011
This item has been discontinued.
8
Waterway Lateral and Manifold Assembly | 19" Filter | 505-2150B
Waterway Lateral and Manifold Assembly | 19" Filter | 505-2150B
Quantity:
$57.40
9
Waterway Lateral - Thread Style | 8 required | 505-1930B
Waterway Lateral - Thread Style | 8 required | 505-1930B
Quantity:
$10.96
10
Waterway Drain Assembly (2004 and earlier) | 505-2020B
Waterway Drain Assembly (2004 and earlier) | 505-2020B
Quantity:
$16.62
11
Waterway Drain Cap Assembly (2004 and earlier) | 505-2030B
Waterway Drain Cap Assembly (2004 and earlier) | 505-2030B
Quantity:
$12.12
12
Waterway 3/8" Flat Washer | 820-0017B
Waterway 3/8" Flat Washer | 820-0017B
Quantity:
$3.86
13
Waterway 3/8" Bolt -16 x 1 1/2" Hex - 19" Sand Filter | 819-0019B
Waterway 3/8" Bolt -16 x 1 1/2" Hex - 19" Sand Filter | 819-0019B
Quantity:
$4.16
14
Waterway O-Ring - 1 1/2" Buttress x 1 1/2" MPT Fitting | 805-0224B
Waterway O-Ring - 1 1/2" Buttress x 1 1/2" MPT Fitting | 805-0224B
A Replacement is available for this item.
This item has been discontinued.
15
Waterway 1 1/2" Buttress x 1 1/2" MPT Tailpiece | 417-4161B
Waterway 1 1/2" Buttress x 1 1/2" MPT Tailpiece | 417-4161B
Quantity:
$6.73
16
Waterway 1.5" Flat Union Gasket | 711-4000B
Waterway 1.5" Flat Union Gasket | 711-4000B
Quantity:
$3.97
17
Waterway Return Sweep Assembly | 550-1841B
Waterway Return Sweep Assembly | 550-1841B
Quantity:
$21.81
18
Waterway Hose Clamp - Stainless Steel - 2 1/2" | 872-0011B
Waterway Hose Clamp - Stainless Steel - 2 1/2" | 872-0011B
Quantity:
$6.05
19
Waterway Corrugated Hose 1 1/2" x 6 ft. | Black | 872-9002B
Waterway Corrugated Hose 1 1/2" x 6 ft. | Black | 872-9002B
Quantity:
$18.79
20
Waterway PVC Flex Hose Assembly | 16" and 19" Sand Filters | 550-1821B
Waterway PVC Flex Hose Assembly | 16" and 19" Sand Filters | 550-1821B
Quantity:
$47.52
21
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Waterway Plastics 2" Flat Union Gasket | 711-4010B
Quantity:
$4.20
22
Waterway Waste Adapter Fitting | 425-1928B
Waterway Waste Adapter Fitting | 425-1928B
Quantity:
$17.77
23
Waterway ClearWater Modular Pump Base for Supreme/ WorkHorse Pump | 672-7201
Waterway ClearWater Modular Pump Base for Supreme/ WorkHorse Pump | 672-7201
Quantity:
$31.68
24
Waterway Collar Wrench for Threaded Style Split-Nut | 505-1970B
Waterway Collar Wrench for Threaded Style Split-Nut | 505-1970B
Quantity:
$18.05
25
Waterway ClearWater Standard Filter and Pump Base | 672-7241
Waterway ClearWater Standard Filter and Pump Base | 672-7241
Quantity:
$50.26
26
Waterway Self-Threading Drain Screen | 602-5310B
Waterway Self-Threading Drain Screen | 602-5310B
This item has been discontinued.
28
Waterway Drain Screen Cap (2010 and earlier) | 602-5301B
Waterway Drain Screen Cap (2010 and earlier) | 602-5301B
Quantity:
$9.55
28
Waterway Plastics Drain Screen Cap | 602-5321
Waterway Plastics Drain Screen Cap | 602-5321
Quantity:
$9.55
