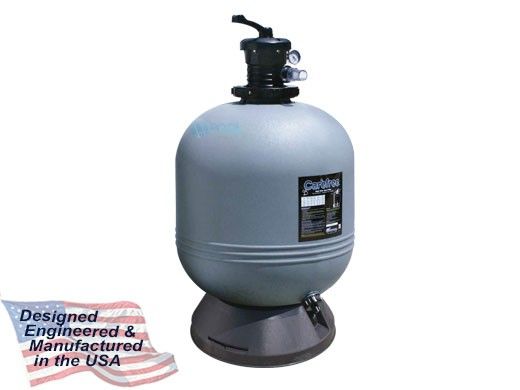

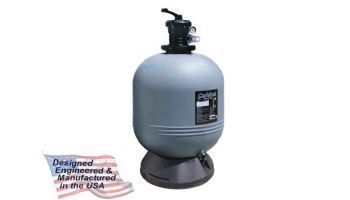

Carefree Top-Mount Sand Filters are designed for extra sand holding capacity. Made of corrosion-proof polymeric thermoplastic.
The Carefree Sand Filter offers the ideal combination of energy efficiency and excellent water clarity. This filter is an excellent choice for above ground or in-ground pools.
Carefree Sand Filters are designed and equipped to offer the ideal combination of trouble-free operation and crystal clear, sparkling water.
Features
- Large sand filter bodies for extra-long filtering cycles and heavy duty capacity
- Fine-spray internal diffuser for even water distribution
- 7-position, thread-on, top mount, 1-1/2" FPT Multi-Port Valve
- 1-1/2" drain port provides easy removal of sand.
- "Start/Service" Dial on stainless steel pressure gauge
- Designed for fast, easy operation and maximum efficiency
- 7- function Top-Mount 1-1/2" FPT Multi-Port Valve with Split-Nut Lock Union (WVS003)
- Start/Service Dial on stainless steel pressure gauge indicates when filter needs to be backwashed
- Threaded collar makes installation and servicing easier
- Internal top diffuser assures even distribution of water over sand media bed (not shown)
- Corrosion proof, one-piece filter tank
- Full-size piping for free-flowing performance
- Efficient multi-lateral under drain assembly laterals are removable for servicing
- Dual function drain for water or sand with self-contained cap/wrench
- Reverse Drain Cap and use as Drain Tool
Specifications:
- Filter Type: High-rate Sand - No. 20 silica
- Filter Tank: Molded polymeric
- Under Drain: 360° self-cleaning slotted laterals threaded for ease of maintenance
- Control Valve: 7-Position, top-mount, multi-port with lever-action handle
- Valve Fastening: Split-nut thread design

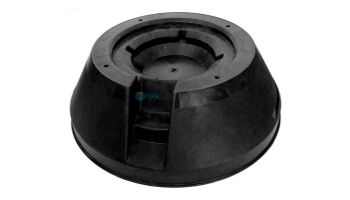

- Mounting Base: Molded thermoplastic
|
Pool Turnover |
|
Multi-Port Valve Style |
Filtration Area |
Flow Rate |
6 Hours |
8 Hours |
10 Hours |
Sand required |
1 1/2" FPT Split-Nut |
2.0 sq. ft. |
45 GPM |
16,200 |
21,600 |
27,000 |
200 lbs. |
Brand: WATERWAY
