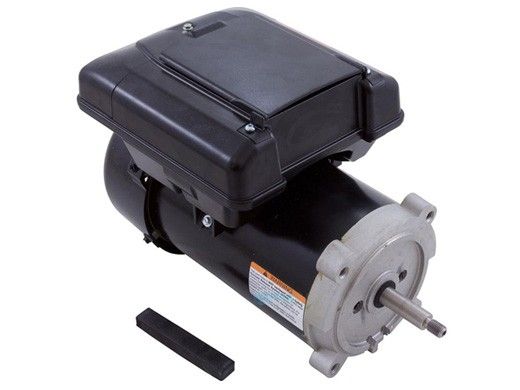

Home AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU

AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU
$600.79

Quantity:
  • Integrated User Interface
  • Timer Mode/Manual Mode
  • Freeze Protection
  • Factor Reset
  • Noise Reduction Design
  • C-Face

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Waterco Infinium Eco V-150 1.65HP Variable Speed Pump | 208/230V Energy-Efficient | 243150A-VS
Waterco Infinium Eco V-150 1.65HP Variable Speed Pump | 208/230V Energy-Efficient | 243150A-VS
Replacement Parts

Waterco Infinium Eco V-270 2.7HP Variable Speed Pump | Energy-Efficient | 243270A-VS
Waterco Infinium Eco V-270 2.7HP Variable Speed Pump | Energy-Efficient | 243270A-VS
Replacement Parts

OVERVIEW
The VGreen 165 variable speed motor joins a growing Century lineup of premium efficiency ECM replacement pump motors. Fully featured, the VGreen 165 incorporates durable TEFC construction with ECM technology to deliver premium energy savings from 40 percent to 80 percent versus a standard single speed motor. Now energy conscious pool owners have an affordable replacement pump motor option that delivers the performance they demand with the programming flexibility they desire.

The VGreen 165 offers three variable speeds programmable from 600 to 3450 RPM, allowing users to easily identify and set the appropriate speeds to minimize energy consumption and lower the overall cost of pool ownership all while maintaining the proper pool environment. Pool size, the presence of additional water features, chemical maintenance needs, and environmental factors will impact the equation with every pool having unique requirements. The programming flexibility offered by the VGreen 165 makes it possible for pool owners to easily identify and adjust speed and duration settings necessary to maintain their pools and to maximize energy savings

THP RPM Volts Max Amps** Service Factor Flange Percent Energy Savings* VGreen 165 Stock Number
1/2-1.65 600-3450 208-230 10.5-10.0 1.0 Square 80% ECM16SQU
1/2-1.65 600-3450 208-230 10.5-10.0 1.0 C-Face 80% ECM16CU

Features
  • Integrated User Interface
  • Timer Mode
  • Manual Mode
  • Freeze Protection
  • Noise Reduction Design
  • Factory Default Settings Reset
  • Ball Bearing
  • TEFC
  • Rotation: CCWPE
  • Single Phase
  • Schedule Advance
  • Full Variable Speed (600-3450 RPM)
  • Max Output of 1.65 THP
  • ECM Design
  • Program Memory Back-Up
  • 303 Stainless Steel Shaft
  • Class F Insulation
  • 50° C Ambient
  • UV and Rain-Proof Enclosure
  • Keypad Lockout
  • Digital Inputs for Third Party Automation
  • VGreen 270 User Interface* Compatibility (*sold separately)


Brand: A.O. Smith
SPECIFICATIONS
Speed
Variable Speed
Voltage
230 V
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
Will this motor fit the hayward super pump ?
A shopper on Jul 18, 2019
