Home Pool Swimming Pool & Spa Pumps Waterco Pool & Spa Pumps Waterco Infinium Eco V-150 1.65HP Variable Speed Pump | 208/230V Energy-Efficient | 2403100A | 243150A-VS Parts

Waterco Infinium Eco V-150 1.65HP Variable Speed Pump | 208/230V Energy-Efficient | 2403100A | 243150A-VS Parts

Back to Product

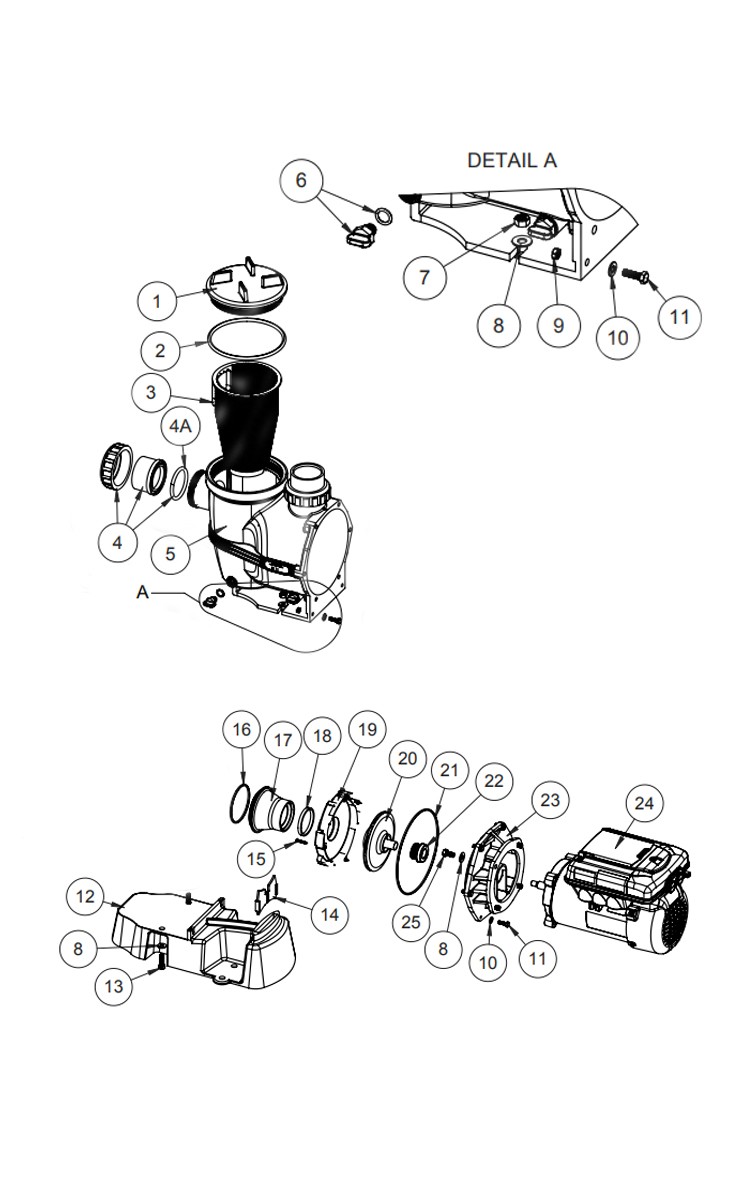

Waterco Infinium Eco V-150 1.65HP Variable Speed Pump | 208/230V Energy-Efficient | 2403100A | 243150A-VS Parts Schematic
1
Waterco Pump Lid Assembly | 634000
Waterco Pump Lid Assembly | 634000
Quantity:
$38.53

2
Waterco H/L Pot Lid O-Ring | 63151
Waterco H/L Pot Lid O-Ring  | 63151
Quantity:
$15.45

3
Waterco Infinium ECO V-Series Strainer Basket | 6340891
Waterco Infinium ECO V-Series Strainer Basket | 6340891
Quantity:
$24.59

4
Waterco Half Barrel Union Assembly 2" | 634024BLK
Waterco Half Barrel Union Assembly 2" | 634024BLK
Quantity:
$17.86

4A
Waterco O-Ring Valve to Tank | W02068
Waterco O-Ring Valve to Tank | W02068
Quantity:
$14.63

5
Waterco Infinium Lacronite Pump Body | 2" | 6340895
Waterco Infinium Lacronite Pump Body | 2" | 6340895
This item has been discontinued.

6
Waterco Drain Plug | 1/4" NPT with O-Ring | 63402301
Waterco Drain Plug | 1/4" NPT with O-Ring | 63402301
Quantity:
$7.73

7
Waterco M6 Stainless Steel 316 Nut | W22039
Waterco M6 Stainless Steel 316 Nut | W22039
Quantity:
$5.98

8
Waterco 3/8" 304 Stainless Steel Washer | 6302181
Waterco 3/8" 304 Stainless Steel Washer | 6302181
Quantity:
$5.98

9
Waterco Nut M8 Stainless Steel 304 | 634006
Waterco Nut M8 Stainless Steel 304 | 634006
This item is no longer available.

10
Waterco Supatuf / Hydrostar Plus H/L Pot Foot M6 SS31 Washer | 6340030
Waterco Supatuf / Hydrostar Plus H/L Pot Foot M6 SS31 Washer | 6340030
Quantity:
$5.98

11
Waterco Pot Foot Stainless Steel 31 Hex Bolt | M6 X 20MM | 6340040
Waterco Pot Foot Stainless Steel 31 Hex Bolt | M6 X 20MM | 6340040
Quantity:
$2.05

13
Waterco Stainless Steel Base Hex Bolt | M8 x 30MM | 635053
Waterco Stainless Steel Base Hex Bolt | M8 x 30MM | 635053
Quantity:
$5.64

14
Waterco HydroStar / HydroStorm Pump Foot Insert | 634021
Waterco HydroStar / HydroStorm Pump Foot Insert | 634021
Quantity:
$13.45

15
Waterco Diffuser Screw | 6340082
Waterco Diffuser Screw | 6340082
Quantity:
$5.98

16
Waterco Diffuser O-Ring | 6340113
Waterco Diffuser O-Ring | 6340113
Quantity:
$10.05

17
Waterco Suction Nozzle | 6340790
Waterco Suction Nozzle | 6340790
Quantity:
$20.08

18
Waterco 3/4-2-1/2HP Supatuf / Hydrostorm Diffuser Gasket | 634011
Waterco 3/4-2-1/2HP Supatuf / Hydrostorm Diffuser Gasket | 634011
Quantity:
$10.82

19
Waterco Diffuser for 3/4-2HP | 6340101
Waterco Diffuser for 3/4-2HP | 6340101
Quantity:
$40.66

20
Waterco Impeller | 6340142
Waterco Impeller | 6340142
Quantity:
$47.00

21
Waterco HydroStorm Mounting Bracket O-Ring | 634017
Waterco HydroStorm Mounting Bracket O-Ring | 634017
Quantity:
$12.66

22
Waterco Mechanical Shaft 2-Part Cup 3/4" Seal | 634016
Waterco Mechanical Shaft 2-Part Cup 3/4" Seal | 634016
Quantity:
$25.08

23
Waterco Motor Adapter / Seal Plate | 63402011
Waterco Motor Adapter / Seal Plate | 63402011
Quantity:
$58.94

24
AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU
AO Smith VGreen C-Face Variable Speed Motor | .5 to 1.65 HP 208-230V | ECM16CU
Quantity:
$656.30
