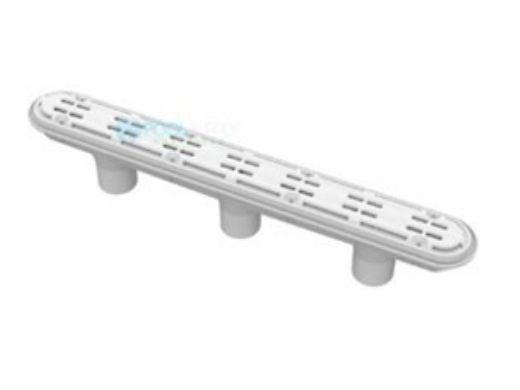

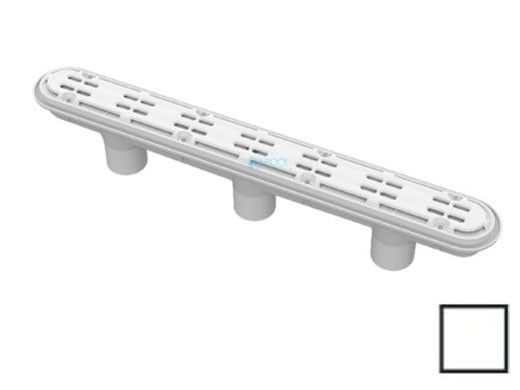

Product description

• A single, unblockable suction outlet that exceeds the new VGB mandate and ASME/ANSI A112.19.8a-2008 standard
• For single or multiple drain use (see installation instructions for plumbing, hydrostatic valve/drain pipe and single or multi-pump connections)
• Single
• Floor: 236 GPM at 3.4 fps
• Wall: 136 GPM at 1.9 fps
• Floor/wall: 106 GPM at 1.5 fps
• 22.6 square inch opening

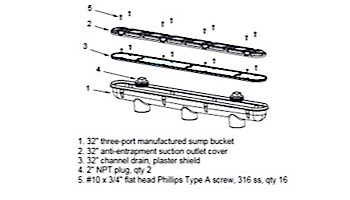

• #316 stainless steel screws
• Manufactured from superior UV-resistant engineered polymers

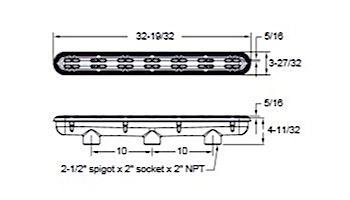

• Three ports: bottom 2 OD, 2 ID S/S; inside 2 threaded FPT; two 2 threaded plugs included
• Meets or exceeds NSF 50/ASME/ANSI A112.19.8a-2008 national standards and ASTM G154 UV testing

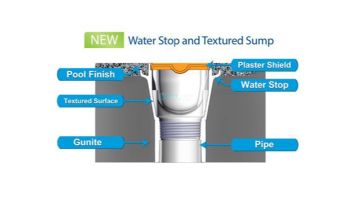

• Orange disposable plastic pre-gunite/plaster insert keeps debris out and retains sump shape during construction
• Must use transitional glue when attaching to PVC pipe
• Listed with IAPMO R&T

Features and details

• For single or multiple drain use

• Floor rated at 236 GPM at 3.4 fps

• Manufactured from superior UV-resistant engineered polymers

• Two Drains in One!


Resources

Spec Sheet
SOFA Installation Instructions
VGBA 2017 Product Specifications

Warranty

Limited Warranty: AquaStar is committed to and takes pride in the quality products that it manufactures. Accordingly, AquaStar maintains high standards for the materials and workmanship that it invests in its products. AquaStar warrants its products to be free from defects in material and workmanship for a period of one year from the date of original installation. This limited warranty will be applicable only if the product manufactured by AquaStar is the sole and exclusive cause of a defect. Products that fail or become defective during the warranty period, except as a result of color-fading, improper installation, bad water chemistry, accidents or negligence on behalf of the owner, freezing, earthquakes, fire, floods or other acts of nature, shall be repaired or replaced at Aqua- Star’s option.
