Patented TFD (Tube Failure Detection) system protects against chemical spills from a worn out tube and activates an alarm output relay

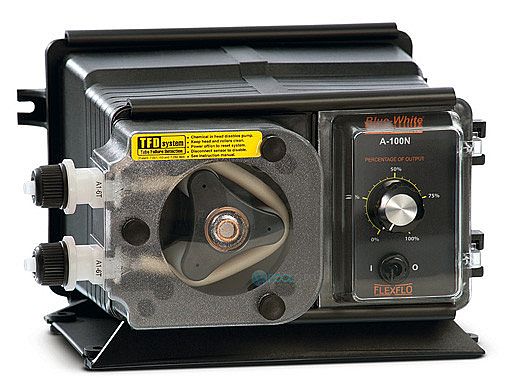

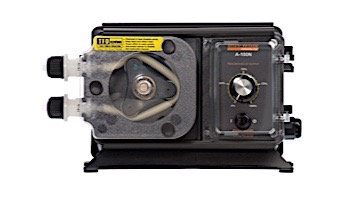

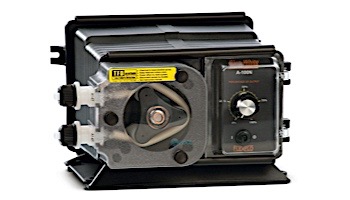

The A-100NV Series Peristaltic Pumps are loaded with features that make them the ideal choice for a variety of water, wastewater, and industrial chemical metering applications. The pumps can easily handle higher viscosity liquids up to 5,000 cps, as well as liquids with up to a 50% solids content.
Features
- Cannot Vapor Lock or Lose Prime
- New and Improved Pump Head provides increased performance and strength
- Four pump tube material options: Norprene, Norprene Chemical, Tygothane, and FKM
- Self-Priming against maximum line pressure
- Patented TFD system protects against chemical spills from a worn out tube and activates an alarm output relay
Low Maintenance Design
The A-100NV’s low maintenance peristaltic pump is designed to be naturally clog resistant and self priming– even against the maximum rated line pressure. The pump also cannot vapor lock or lose prime, so no bypass system is required. Built to last, each A-100NV pump is housed in a weatherproof NEMA 2 housing and has a continuous duty motor with advanced cooling to ensure a long service life.
Pump Control and Alarm Relays
The pump’s precise, variable speed feed rate may be externally controlled by a 4-20 mA or pulse/frequency signal from a flowmeter, PLC, or process control device.
Specifications
- Max. Working Pressure: 100 psig (6.9 bar) Max.
- Fluid Temperature: 130°F (54°C)
- Max. Ambient Temperature 14 to 115°F (-10 to 46.1°C)
- Output Adjustment Range 5 to 100% in 1% increments
- Duty Cycle Continuous
- Maximum Viscosity 5,000 Centipoise
- Maximum Suction Lift 30' water, 0 psig
- Maximum Solids 50% by volume
- Enclosure NEMA type 2, (IP21)
- Shipping Weight (Approx.) 12 lbs (5.4 kg)
- Dimensions 6-1⁄4 x 10 x 9-1⁄4" (158.7 x 254 x 235mm)
