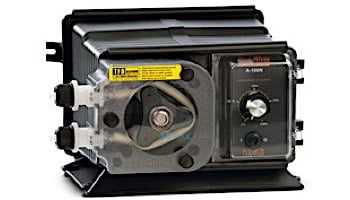

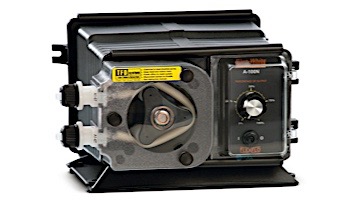

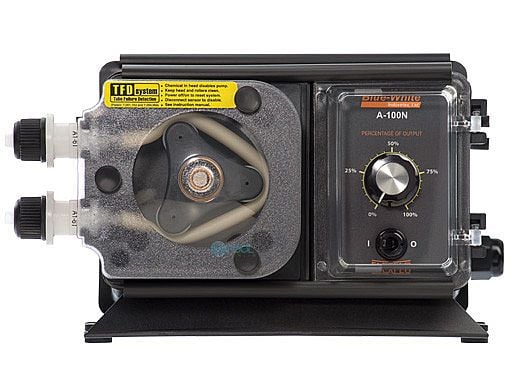

A1N10A-6T Flexflo High Pressure Peristaltic Metering Pump with Analog Timer For Chlorinator
Features:
- Peristaltic pump design does not have valves that can clog requiring maintenance
- Self priming - even against maximum line pressure. By-pass valves are not required Cannot vapor lock or lose prime
- Outputs to 250 ml/min (95.1 GPD)
- Output pressures to 100 PSI
- Output volume is not effected by changes in back pressure
- Patented pump tube design installs easily and stays centered on the rollers without manual adjustment
- Two pump tubes supplied with each pump. No extra tubing required
- Easy to use dial knob output control
- 20:1 turndown ratio
- Adjustable 60 second repeating interval timer. 3-60 second adjustable on time per 60 second cycle
- Built-in Tube Failure Detection system (TFD). Senses chemical in the pump head, shuts off the pump and activates an NPN open collector output
- Compatible with Blue-White’s output flow verification sensor system
- Durable housing of chemical resistant Valox (PBT) thermoplastic
Specifications:
- 3/8 Inch OD
- 16 gpd
- Polypropylene
- 115 V-60 Hz
- 100 psi
- Max. working pressure:100 psig (6.9 bar)
- Max. fluid temperature: 130 F (54 C)
- Max. ambient temperature: 14 to 110 F/ -10 to 43 C
- Output adjustment range: 5-100%
- Duty cycle: Continuous
- Maximum viscosity: 5,000 Centipoise
- Maximum suction lift: 30 ft. Water 0 psig
- Maximum Solids: 50% by volume
- Enclosure: NEMA 3R, (IP23)
- Approximate shipping wt: 10 lb. (4.5 kg)
- Power Cord Type: 3 Conductor, SJTW-A, NEMA 5/15
