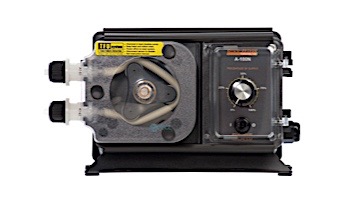

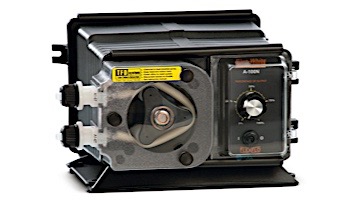

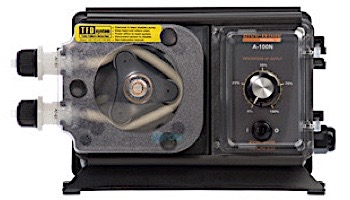

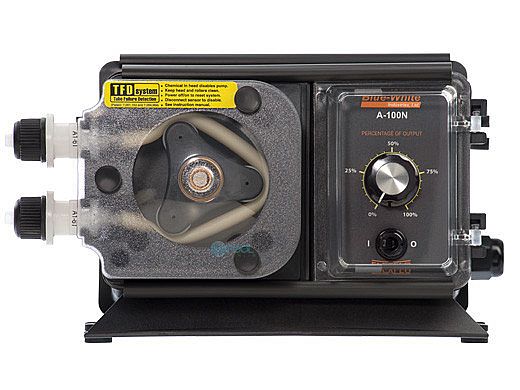

Blue-White FlexFlo A-100N HI-Pressure Fixed Speed Peristaltic Metering Pump | 24 GDP | 115V Nema Cord | A1N20A-6T

$459.90

A1N20A-6T Flexflo High Pressure Peristaltic Metering Pump with Analog Timer For Chlorinator

Features:

Peristaltic pump design does not have valves that can clog requiring maintenance
Self priming - even against maximum line pressure. By-pass valves are not required Cannot vapor lock or lose prime
Outputs to 250 ml/min (95.1 GPD)
Output pressures to 100 PSI
Output volume is not effected by changes in back pressure
Patented pump tube design installs easily and stays centered on the rollers without manual adjustment
Two pump tubes supplied with each pump. No extra tubing required
Easy to use dial knob output control
20:1 turndown ratio
Adjustable 60 second repeating interval timer. 3-60 second adjustable on time per 60 second cycle
Built-in Tube Failure Detection system (TFD). Senses chemical in the pump head, shuts off the pump and activates an NPN open collector output
Compatible with Blue-White's output flow verification sensor system
Durable housing of chemical resistant Valox (PBT) thermoplastic

Specifications:

3/8 Inch OD
24 gpd
Polypropylene
115 V-60 Hz
100 psi
Max. working pressure:100 psig (6.9 bar)
Max. fluid temperature: 130 F (54 C)
Max. ambient temperature: 14 to 110 F/ -10 to 43 C
Output adjustment range: 5-100%
Duty cycle: Continuous
Maximum viscosity: 5,000 Centipoise
Maximum suction lift: 30 ft. Water 0 psig
Maximum Solids: 50% by volume
Enclosure: NEMA 3R, (IP23)
Approximate shipping wt: 10 lb. (4.5 kg)

Brand: Blue White Industries
