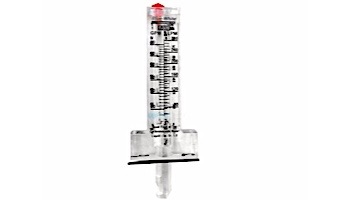

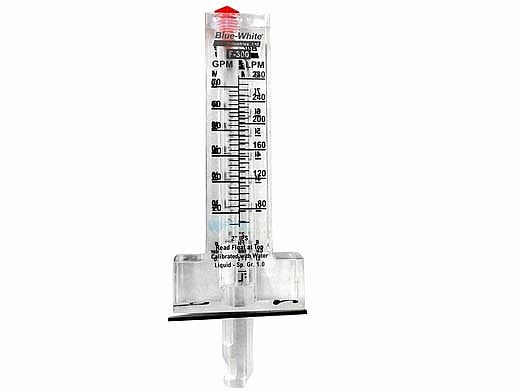

Home Blue White 2" Low Flow PVC Flow Meter 15-70 GPM | F-30200PR

Blue White 2" Low Flow PVC Flow Meter 15-70 GPM | F-30200PR

Call us to order.
Blue White 2" Low Flow PVC Flow Meter 15-70 GPM | F-30200PR
Blue White 2" Low Flow PVC Flow Meter 15-70 GPM | F-30200PR
Blue White 2" Low Flow PVC Flow Meter 15-70 GPM | F-30200PR
In Stock - Ships within 24 hours. Pitot Tube (impact tube) design makes it easy to install on existing pipe. Acceptable for outdoor installations (direct sunlight okay).

Features:
  • Dual GPM/LPM scale printed on both sides of the meter.
  • 1 through 8 pipe sizes.
  • Flow rateS from 2 to 1900 GPM (8 to 7200 LPM).
  • Corrosion resistant 316SS or Teflon internal float materials.
  • One piece machined acrylic body.
  • Mounts to existing pipe. No unions or adapters required.
  • Models for mounting on horizontal or vertical pipe.
  • Mounting clamps and gasket included.
Specifications:
  • Pipe Requirements: IPS inch pipe size (ASTM-D-1785)
  • Max. Psi (bar): 150 PSI (10.3 bar) @ 70 F (21 C)
  • Max. fluid temp.: 190 F (88 C) @ 0 PSI
  • Max. ambient temp.: 14 to 110 F/ -10 to 43 C
  • Note: Temperature & Pressure ratings of meter only. Actual pipe rating may vary.
  • Full scale accuracy: +/- 10%
  • Power requirement: No power required
  • Enclosure: NEMA 4X (IP56)
  • Approximate shipping wt:
  • 1-4 units: 1 lb. (.45 kg)
  • 6-8units: 2 lb. (.91 kg)
Materials of Construction:
  • Meter Body:Cast Acrylic
  • Float: Standard range models = 316SS - Low range models = Teflon
  • Gasket: Neoprene
  • Pipe Clamp: 300 series Stainless Steel
  • Pitot screw: 1 thru 2 models only - 300 series stainless Steel

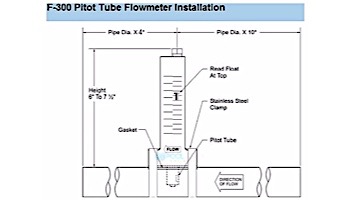

Installation Requirements:
Minimum Straight Pipe Length Requirements - The meters accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy is 10 times the nominal pipe diameter before the meter and 4 times the nominal pipe diameter after the meter.

Mounting location:
  • F series meters must be mounted at the vertical (twelve o'clock) position.
  • Must be mounted on horizontal pipe only.
  • U & D series meters must be mounted on vertical pipe only.
  • The pipe must be completely full of water at all times.
  • See the minimum straight length of pipe requirement chart above.
  • The meter can accurately measure flow from one direction only.
  • U-series meters measure upward flows only.
  • D-series meters measure downward flows only.


Brand: BLUE-WHITE
