Home Coates 11KW 240V Electric Spa Heater | 12411ST
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Coates 11KW 240V Electric Spa Heater | 12411ST

Coates 11KW 240V  Electric Spa Heater | 12411ST
$634.84

Quantity:
Parts AvailableParts Available
RELATED ITEMS
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
PARTS
RELATED ITEMS
  • Coates Pilot Light | Amber | 5/16" 250V | 29034620
    Coates Heater Pilot Light | Amber | 5/16" 250V | 29034620

    $12.00
  • Coates Pressure Switch 1-5 PSI | 22007210
    Coates Pressure Switch 1-5 PSI | 22007210

    $27.15
  • Coates 2-Pole Contactor | 35 AMP 240V | 21000650
    Coates 2-Pole Contactor | 35 AMP 240V | 21000650

    $41.60
  • Coates .5" Flow Switch Q12DS | 23000105
    Coates .5" Flow Switch Q12DS | 23000105

    $69.16
  • Coates Heater Union | ST Series|  32705010
    Union | ST Series | 32705010

    $17.44
  • Coates Electric Heater 5.5kW 240V Threaded Element Only with Gasket | 20005061
    Coates Electric Heater 5.5kW 240V Threaded Element Only with Gasket | 20005061

    $55.41
  • Coates Thermostat TD103-77 CPH/PHS | 22002001
    Thermostat TD103-77 CPH/PHS | 22002001

    $45.97
OVERVIEW

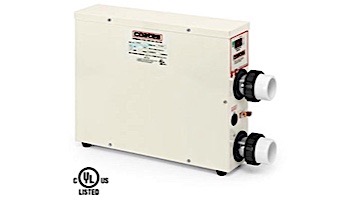

Coates 11 kW 240V Electric Spa Heater

The built in pressure switch prevents operation when there is no water flow and allows operation at flow rates between 15GPM and 80GPM. The stainless steel tank is designed to optimize heat transfer by directing the water flow over the incoloy elements efficiently.

Compact and efficient, Coates in-line spa heaters feature stainless steel tanks and replaceable incoloy elements.

Standard Features
  • Incolony heating elements
  • Digital thermostat
  • Manual reset high temp limit
  • Pressure switch
  • Heavy duty contactors
  • Element "on" light
  • Piping connections: 1-1/2 X 2" Union connections for PVC pipe
Technical Data
  •  ST: 17-1/2"L x 4"W x 14"
UL Listed for indoor/outdoor Installation

MODEL NUMBER
KW
VOLTAGE
PHASE
AMPS
BTU'S P/H
SHIPPING WT.
12406ST
5.5
240
1
23
18,772
17 lbs.
12411ST
11.0
240
1
46
37,543
18 lbs


Brand: COATES HEATERS
SPECIFICATIONS
Kilowatt
11kw
Voltage
240V
Phase
Single Phase
Salt Compatible
No
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 22 questions Browse 22 questions and 22 answers
I have a small pool 6x 36 5 feet deep i am wondering it the 11kw heater will heat it and im wondering about electricity demands?
Jules on Jun 5, 2017
BEST ANSWER: Thats is over 7500 gallons. I do not think this heater is big enough for a pool 6 feet by 36 feet by 5 feet
Can this heater be used with salt chlorinators?
A shopper on Apr 28, 2016
BEST ANSWER: No
can this be used for an above ground pool with 8 - 10,000 gallons?
A shopper on May 8, 2017
BEST ANSWER: If you would like the correct electric heater by Coates, their representatives can assist you with getting the proper size heater for your pool. (888) 454-5141
The heat light will not come on?
david c on Dec 9, 2015
BEST ANSWER: I've had one of these for over a year and have had no problems. For troubleshooting, the first question is whether it is heading the water OK, in which case maybe just the light is bad. If it's not heating the water, then there must be something bad with the heating system itself (electrical connection or heating element).
What other accessories would I need for a 24-11 Coates Heater?
A shopper on Aug 2, 2021
BEST ANSWER: We needed to upgrade our electrical box., but that's it. It makes a HUGE difference in our 15 foot above ground pool.
How hot can this heater get?
jess p on Nov 29, 2018
BEST ANSWER: It heats to the top of recommended legal limit to heat a spa which is 104 degrees.
How much time it take to heat the indoor pool size 16×26 square feet and 5 feet deep ?
Adit C on Nov 22, 2018
BEST ANSWER: Two days and I am happy with my coats 11 kw
hi i need the union for this heaters? model: 12411st 11 kw
Alaen S on Mar 27, 2016
BEST ANSWER: HI,
I am plumbed with schedule 40 PVC and unions are available any where that handles that pipe. I also plumbed in a gate valve as my hot tub water level is above the heater outlet. That way if I need to remove the heater I can cut off the water and unscrew the union. I hope this helps.
Mel
Can this be used with an Intermatic 156T4042A Fireman Switch?
Tom B on Jul 31, 2021
BEST ANSWER: Simple answer is yes as long as it's wired correctly.
how many amps does this heater ?
A shopper on Mar 13, 2021
BEST ANSWER: Heater uses 46 amps. I have several of the 11kw heaters and they are dependable as long as you keep your chemicals in check.
Will this heat a 1750 gallon above ground Intex 12’ dia pool to roughly 80deg?
A shopper on Jul 11, 2020
BEST ANSWER: And he’s my 9 x 18 x 42” pool to 90° and probably higher if I wanted I have an above ground InTEXT pool
I have an Intex above ground pool. Its 18ft round and I believe 52inches deep. Will the 11kw heat it enough. I'm not trying to make it feel like a hot tub or anything, just take the chill out. Also, how long would it take to take the chill out of the water? Estimate of course...
Paul N on May 19, 2020
BEST ANSWER: Yes it’ll accommodate that size
What do the led codes mean HC,LS,HS,PE,CA,d,E1 or I ?
Donna Z on Sep 2, 2019
Coates 11KW 240V  Electric Spa Heater | 12411ST
Coates 11KW 240V Electric Spa Heater | 12411ST
Coates 5.5KW 240V Electric Spa Heater | 12406ST
Coates 5.5KW 240V Electric Spa Heater | 12406ST
BEST ANSWER: No reference to those codes in the owner’s manual, please contact tech support at Coates directly for additional help:

Coates Heater Company, Inc.
P.O. Box 1750
Kent, WA 98035-1750
Phone: (888)454-5141
Fax: (253)859-4660
www.coatesheater.us.com
How do you drain the spa?
A shopper on Apr 3, 2018
BEST ANSWER: Hello shoper,
In my case I just use a submersible pump and in a couple of hours the 800 gallons spa will be drain.
The last few gallons I use a shop vac to complete the job.
Hope this helps.
WILL THIS HEATER WORK FOR A 1000 GAL SPA (IN GROUND-
DROP IN) ?
Ken K on Aug 2, 2021
Dear friends send me pls manual for 11 kwt 3x380 v heater and electrical diagram how to connect it to the electricity?
Many thanks.
Dr.Igor Genis
Igor G on May 11, 2021
Hi, would this heater work in a small 600 gallons over the ground spool? I love in orange county Ca and i’d like my spool to get at least to 100 on the coldest days.
A shopper on Jan 14, 2021
I am looking at this to provide supplemental heat to just my spa. The main heater will keep the temp up to 85-90ish. For this type of application, would the 5kw work or do I need the 11kw? I am looking to raise the spa 10 more degrees than the pool.
John K on May 18, 2020
How many gallons will this heater support. I live in Florida and would like to heat my small pool when it’s 70 degrees out.. it is a 6x17 56th deep pool?
Bob C on Mar 7, 2020
I have a 7000 gallon pool in uper NY will the 11 k be big enough to heat pool ?
Hal G on Jul 14, 2018
My power is coming to my 12411st heater but I get no heat or digital readouts. What may be wrong?
Donald S on Jul 17, 2017
Does it come with a warranty?
A shopper on May 11, 2017
REVIEWS
3.6 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
2
1
1
0
Rated 2 out of 5
Not too hot
The heater was not very strong and did not warm the water well. It registered as if it did but it didn't.
June 23, 2019
Purchased
over 4 years ago
Rated 5 out of 5
11k Pool Heater 12411st
I love my pool heater. Your company and supplier are a great company to work with. Thank you for shipping the heater to me it arrived so fast!
June 13, 2021
Purchased
12 months ago
Rated 4 out of 5
Great deal
Excellent heater for my 500 gal spa with the Digital temperature controls. Works great and heats water fast, Great product with a very competitive price!<br>
September 9, 2015
Rated 4 out of 5
Damage
Heater was damaged in shipping and had to have repaired before it could be used. Pool Supply support was willing to replace any broken parts but repair did not require parts, just labor. Installed now and is working well. Great heater for my hot tub. Thanks Pool Supply..
February 9, 2019
Purchased
over 3 years ago
Rated 3 out of 5
It can be made by putting two heating elements or three he knew Melman's and one unit. It takes 90 minutes or more to heat
They have to be installed correctly correct wiring and breaker switch breaker switch for each unit . Where I live in the desert there's not that many pool people that know how to install unit.
May 8, 2017
Purchased
over 7 years ago
RESOURCES
WARRANTY
COATES INTERNET SALES POLICY

Coates recognizes that the internet is an important source of information and a growing channel for selling many products. However, we strongly believe that pool heaters are not appropriate products to sell over the internet.

The installation of an electric pool heater is generally regulated by multiple sets of laws, codes and guidelines, at the federal, state and local levels. Further, the failure to properly install an electric pool heater can raise personal safety and performance concerns.

For this reason Coates do not authorize online retail sales of any of their pool heaters. An online purchase may affect your warranty.

This policy is necessary to ensure that Coates Heater brand equipment is installed properly, in compliance with applicable laws, rules, codes, and in a manner that addresses safety concerns and the proper performance of Coates equipment.

Your local pool dealer is the best resource for your pool and spa needs, including any warrantable defects in their products.
