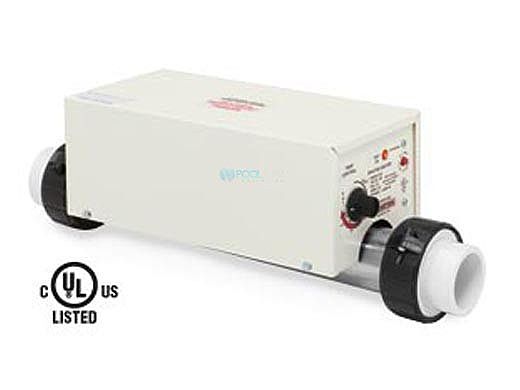

In-Line 6kW 240V Electric Heater
The built in pressure switch prevents operation when there is no water flow and allows operation at flow rates between 15GPM and 80GPM. The stainless steel tank is designed to optimize heat transfer by directing the water flow over the incoloy elements efficiently.
Compact and efficient, Coates in-line spa heaters feature stainless steel tanks and replaceable incoloy elements.
Standard Features
- Pressure switch
- Close differential thermostat
- Control box with powder coat finish
- Manual reset high temp limit
- Element "on" light
- Stainless steel tank
- Replacable incoloy element
- 1-1/2 X 2 inch union connections for PVC pipe
Technical Data
- ILS BOX: 12"L x 6"W x 6"H
- LENGTH (UNIONS): 19-1/2"
- LENGTH (NO UNIONS): 15"L
- UL Listed for Indoor Installation
MODEL NUMBER
|
KW
|
VOLTAGE
|
PHASE
|
AMPS
|
BTU'S P/H
|
SHIPPING WT.
|
1.5ILS
|
1.5
|
120
|
1
|
12
|
5,120
|
9 lbs.
|
6ILS
|
5.5
|
240
|
1
|
23
|
18,772
|
10 lbs
|
