Home CompuPool OEM Replacement Salt Cell with Housing for CPSC24 | 5-Blade for up to 26,000 Gallons | JD363130C-COMPL
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

CompuPool OEM Replacement Salt Cell with Housing for CPSC24 | 5-Blade for up to 26,000 Gallons | JD363130C-COMPL

CompuPool OEM Replacement Salt Cell with Housing for CPSC24 | 5-Blade for up to 26,000 Gallons | JD363130C-COMPL

Parts AvailableParts Available
Gold Preferred Manufacturer
  • Suitable for pools up to 30,000 gallons
  • For use with CPSC24 chlorination system only
  • Produces 1.3 pounds of chlorine per day
  • Cell cords are NOT included

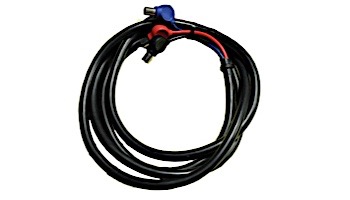

  • CompuPool Cell Cable Plug & 6 foot Cord for CPSC Series | JD363200A
    CompuPool Cell Cable Plug & 6 foot Cord for CPSC Series | JD363200A

  • CompuPool Cell Cable Plug & 15 foot Cord for CPSC Series | JD363200B
    CompuPool Cell Cable Plug & 15 foot Cord for CPSC Series | JD363200B

  • Pool Style 1# Salt Cell Cleaner for Cleaning Salt Water Generator Cells | 774263
    1# Salt Cell Cleaner for Salt Water Generator Cells

  • AquaChek Salt System Test Kit | 542228A
    AquaChek Salt System Test Kit

  • CompuPool Electrode O-Ring for Clear Cell Housing | JD363ECM
    CompuPool Electrode O-Ring for Clear Cell Housing | JD363ECM

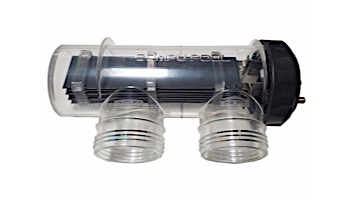

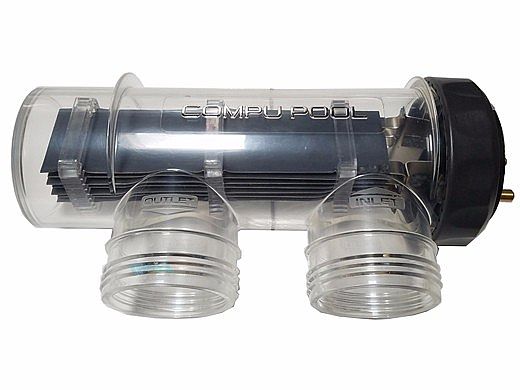

The CompuPool CPSC24 replacement salt cell is for use with the CPX 24 and CPSC24 chlorination systems only. Unions and O-rings are not included with the cell, and we always recommend adding a new cord (NOT Included, see Items We Suggest) when replacing the cell.

The CPSC24 uses five titanium blades to produce up to 1.3 pounds of chlorine per day for pools up to 30,000 gallons. The level of salinity can be easily maintained at the power center, making for a pleasing swimming experience as smooth, silky water provides a welcome contrast to the often overly chlorinated, irritating pool and spa water of years past.

One major advantage of CompuPool OEM (original equipment manufacturer) salt cells is the included clear blue housing, which makes it easy to ensure that the cell is functioning normally. Periodic cleaning can be performed with a simple mixture of water and muriatic acid. CompuPool also makes it possible to save by ordering just the replacement electrode - the JD363130C for the CPSC24, (see Other Purchase Options) when the original cell housing is intact and fully sufficient.

CPSC cells, electrode-only models and full systems are popular for a number of other reasons as well:

  • Default salt level setting of 3500 parts per million, which can be easily adjusted
  • Automatic operation plus battery-powered backup timer for consistent schedule
  • Automatic detection when water’s salt level is too high
  • Intuitive touch pad controls for easy setting of desired levels
  • No-flow sensor, plus high-salt and low-salt fault lights
  • Water temperature sensor to help make salt level reading more accurate
  • Large alloy heat sink to help dissipate heat and prevent corrosion
  • Entire system fully weather protected
  • Winter mode to compensate for colder water being chlorinated
  • Waterproof connectors make installing replacement cells simple

CompuPool has discontinued production of its CPSC line of complete salt systems in favor of the newer CPX models. However, it still manufactures replacement cells and electrodes for the CPSC system and we’re happy to offer them. CompuPool has been a leader in saltwater chlorination for more than three decades and we’ve received consistently high reviews from customers regarding those systems as well as replacement cells.

Pool Size
26,000 Gal
System Compatibility
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 7 questions Browse 7 questions and 9 answers
how you open the blue husing to change

the cell?
A shopper on Jan 8, 2017
BEST ANSWER: When you unscrew the nuts for the input and output lines, the housing will simply pull apart. Very simple to change.
I have a cpsc24 can I replace it with a cpsc36 for better service?
rex m on Feb 8, 2016
BEST ANSWER: Yes you can. The life of the cell will be prolonged because you can turn down the output for desired % will produce more chlorine at a lower setting. Thus for extending the life cell and efficiency of chlorine production.
How can I tell if it is the cell or controller, what voltage should I see from the controller at the cell?
Dorothy M on Aug 17, 2020
BEST ANSWER: Just got a new CPSC 36 and the information on the label is 115/230 VAC 50/60 HZ input voltage. They also give an input rating of 3/1.5 amps. Output voltage is 8.5 VDC. .
Is the CPSC24 cell compatible with a CPA300 unit?
A shopper on May 21, 2016
BEST ANSWER: Yes it worked for a.while and now my system power is out. Don't know what to blame. Cell or Unit
Is this the same as the Circupool RJ30 classic?
Curtis L on Nov 15, 2020
is this comparable to a 7 series chlorinator cell?
Sherry M on Aug 12, 2020
Can I replace my CPSC16 cell with a CPSC24 cell so that I don't have to run my filter as much?
Dar on Feb 22, 2019
4.6 / 5.0
7 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Rated 5 out of 5
Great replacement.
I replaced my salt cell and it worked wonderfully this year. Very pleased.
September 3, 2020
over 3 years ago
Rated 5 out of 5
I’m not much on reviews. This unit does what it is supposed to do so far. Pool has been in great shape since install.
May 25, 2019
over 5 years ago
Rated 5 out of 5
CompuPool OEM Salt Replacement Cell
Good experience with my last CompuPool cell. PSU has the best price on or off line.
July 10, 2013
Rated 5 out of 5
Very helpful
This product performs well. Knowledgeable techs very helpful with installation information.
August 20, 2016
over 6 years ago
Rated 5 out of 5
What I needed - right part
This is my second salt cell in 10 years. Can count on Pool supply to have the correct part at a great price. Much less expensive than local dealers. Service is great also.
July 4, 2019
over 2 years ago
Rated 4 out of 5
It's built to last
It works well as a replacement of the original. It's built well. Maintainance is minimal.
January 8, 2017
over 6 years ago
Rated 3 out of 5
Still troubleshooting faceplace now reading no water....not sure why. Waiting for my pool professional to call back also.
November 5, 2019
over 2 years ago
CompuPool warranties its original and generic replacement salt cells for two years in most cases with some exceptions:
