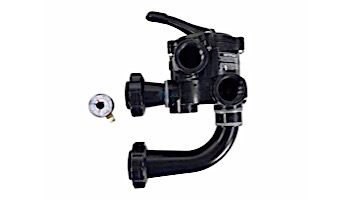

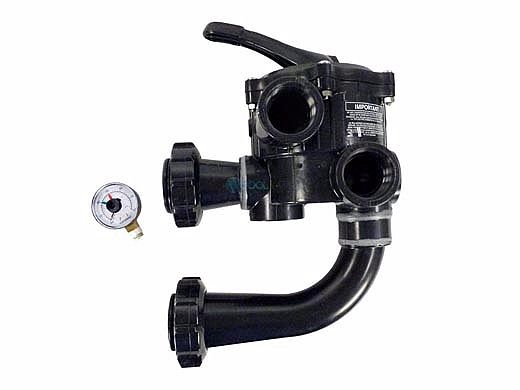

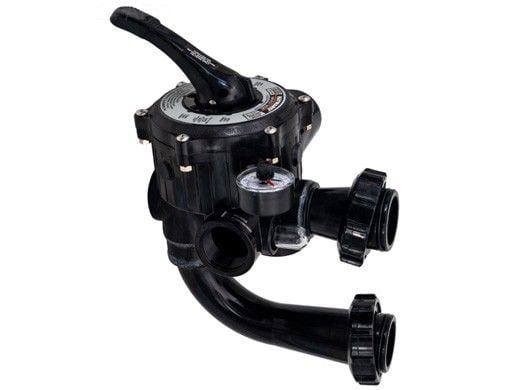

Hayward 1.5 inch Vari-Flo Multi Port Valve Pro Series Sand Filters | SP0710X62

Hayward 1.5 inch Vari-Flo Multi Port Valve Pro Series Sand Filters | SP0710X62 Hayward 1.5 inch Vari-Flo Multi Port Valve Pro Series Sand Filters | SP0710X62 Hayward 1.5 inch Vari-Flo Multi Port Valve Pro Series Sand Filters | SP0710X62
$139.43

Quantity:
Platinum Preferred Manufacturer

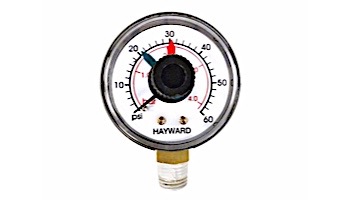

  • 6 Positions valve with gauge
  • Engineered for maximum flow at lower pressure

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Hayward Pro Series Side Mount Sand Filter 20" Tank | Backwash Valve Included | S210S
Pro Series Side Mount Sand Filter 20" Tank | S210S
Replacement Parts

Hayward Pro Series Side Mount Sand Filter 24" Tank | Backwash Valve Included | S244S
Pro Series Side Mount Sand Filter 24" Tank - S244S
Replacement Parts

Hayward Pro Plus Sand Filter 31" Without Valve | S311SX
Hayward Pro Plus Sand Filter 31" Without Valve | S311SX
Replacement Parts

OVERVIEW

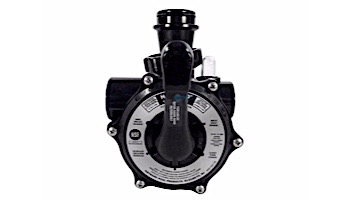

Hayward's Vari-Flo XL multiport control valves, made of reinforced thermoplastic material and engineered for maximum flow, are the professional's choice in multiport valves. All Vari-Flo control valves feature an easy-to-use lever action handle that lets you "dial" up to seven valve/filter functions: filter, backwash, waste, rinse, closed, winter or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed, our wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application; residential, commercial, top-mount or side mount.

Features
  • Reinforced thermoplastic material meets the demands of the toughest applications
  • Hydro-engineered to provide superior flow at lower pressure drops, resulting in more efficient filtration at equivalent horsepower
  • Rugged off-set ports for easy plumbing
  • Ergonomically designed handle allows for simple dialing of the various valve positions
  • Built-in sight glass for convenient backwash viewing
  • Injection molded Noryl Valve Key Assembly, with molded gasket for a continuously reliable sea
Vari-Flo Control Valve Functions
  • Filter - For normal filtering and regular vacuuming
  • Backwash - For cleaning filter sand bed of accumulated debris
  • Waste - By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line
  • Re-circulate - Water is re-circulated through the valve by passing the filter
  • Closed - Shuts off the flow from the pump to the filter
  • Winter - For winterizing
For use with; Pro Series S210S/S244S/S310S Sand Filter and Pro Series Plus S311SX/S311SXV/S360SX Sand Filter


Brand: HAYWARD
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions
will this valve work on a model S310S Hayward sand filter?
A shopper on Mar 26, 2020
This AM Hayward Tech Services gave me a Revised Part Number SPO710X62FV. Do you have this new PN with FV suffix?
chuck m on Apr 21, 2016
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
Hayward Pool Products warranties all items sold over the internet for a period of one year, parts only, no labor, ONLY when purchased from a Hayward Authorized Online Reseller.
  • Salt cell replacements W3T-CELL15, W3T-CELL-9, and W3T-CELL-3 include a three year, parts only warranty, when purchased from a Hayward Authorized Online Reseller.
Pool Supply Unlimited is a Hayward Authorized Online Reseller.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/15/2020. For the most current information and full warranty policy please visit www.hayward-pool.com
