Hayward Pro Series Side Mount Sand Filter 20" Tank | Backwash Valve Included | S210S Parts

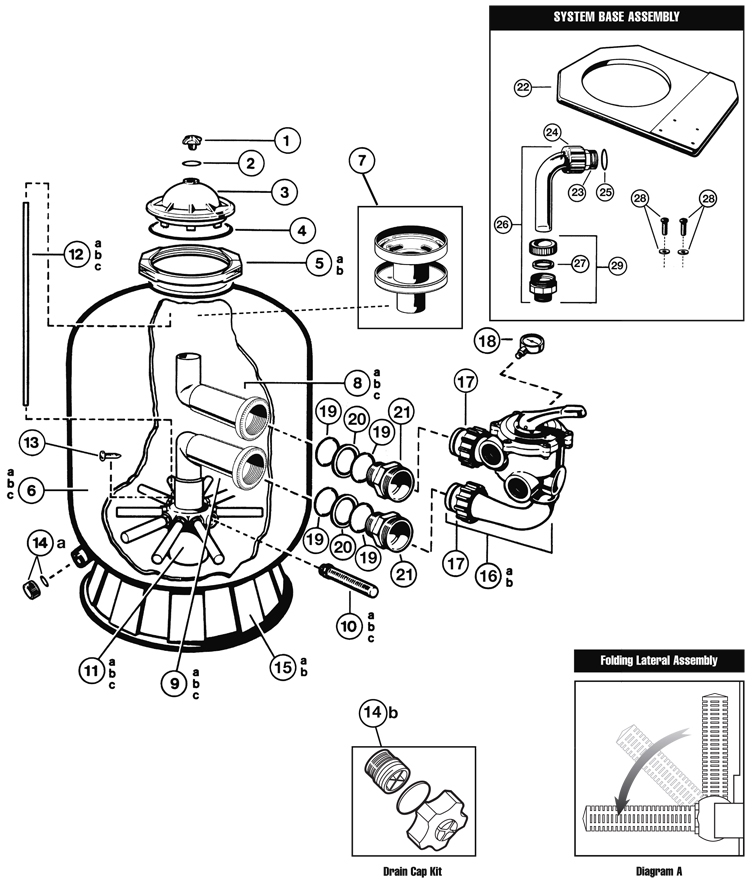

Hayward Pro Series Side Mount Sand Filter 20" Tank | Backwash Valve Included | S210S Parts Schematic
1
Hayward Manual Air Relief Cap | SX200G
Hayward Manual Air Relief Cap | SX200G
Quantity:
$11.08

2
Hayward O-Ring F/Air Relief Valve Assembly | SX200Z5
Hayward O-Ring F/Air Relief Valve Assembly | SX200Z5
Quantity:
$4.90

3
Hayward Top Closure Dome Pro Series | SX244K
Hayward Top Closure Dome Pro Series | SX244K
Quantity:
$48.96

4
Hayward Valve O-Ring for Hayward Pro Series Sand Filter | GMX600F
Hayward Valve O-Ring for Hayward Pro Series Sand Filter | GMX600F
Quantity:
$17.70

5
Hayward Flange Clamp Pro Series | GMX600NM
Hayward Flange Clamp Pro Series | GMX600NM
Quantity:
$36.94

7
Hayward Top Diffuser Assembly | SX244G
Hayward Top Diffuser Assembly | SX244G
Quantity:
$34.53

8
Hayward Top Elbow Assembly 1996 and after | SX210CD1FW
Hayward Top Elbow Assembly 1996 and after | SX210CD1FW
Quantity:
$43.46

9
Hayward Bottom Elbow Assembly | SX210CD2FW
Hayward Bottom Elbow Assembly | SX210CD2FW
Quantity:
$42.58

10
Hayward Ball Style Lateral with Hub | SX200QN
Hayward Ball Style Lateral with Hub | SX200QN
Quantity:
$7.70

11
Hayward Folding Umbrella Lateral Holder Assembly for S210S | SX242MA
Hayward Folding Umbrella Lateral Holder Assembly for S210S | SX242MA
Quantity:
$68.82

13
Hayward Air Tube Lock Screw | SX200Z2
Hayward Air Tube Lock Screw | SX200Z2
Quantity:
$4.68

14
Hayward Drain Cap for Pro Series Filters | SX180HG
Hayward Drain Cap for Pro Series Filters | SX180HG
Quantity:
$8.82

15
Hayward Filter Support Stand | SX200J
Hayward Filter Support Stand | SX200J
Quantity:
$71.02

16
Hayward 1.5 inch Vari-Flo Multi Port Valve Pro Series Sand Filters | SP0710X62
Hayward 1.5 inch Vari-Flo Multi Port Valve Pro Series Sand Filters | SP0710X62
Quantity:
$139.43

17
Hayward O-Ring for Valve Horn | SX200Z4
Hayward O-Ring for Valve Horn | SX200Z4
A Recommended Replacement is available for this item.
This item is obsolete.

18
Hayward Bottom Mount Pressure Gauge | ECX270861
Hayward Bottom Mount Pressure Gauge | ECX270861
Quantity:
$23.30

19
Hayward O-Ring | SX360Z1
Hayward O-Ring | SX360Z1
Quantity:
$10.52

20
Hayward O-Ring Spacer After 1995 | SX360E
Hayward O-Ring Spacer After 1995 | SX360E
Quantity:
$14.51

21
Hayward Bulkhead Fitting | SX244P
Hayward Bulkhead Fitting | SX244P
Quantity:
$25.75

22
Hayward Standard Pump-Filter Mounting Base | ECX1291
Hayward Standard Pump-Filter Mounting Base | ECX1291
Quantity:
$156.14

23
Hayward Ball End Connector | SPX1480A
Hayward Ball End Connector | SPX1480A
Quantity:
$14.68

24
Hayward Union Nut | SPX1480C
Hayward Union Nut | SPX1480C
Quantity:
$14.52

25
Hayward O-Ring | SPX1425Z6
Hayward O-Ring | SPX1425Z6
Quantity:
$7.57

26
Hayward Union Elbow with Compression Assembly | SPX1485B3
Hayward Union Elbow with Compression Assembly | SPX1485B3
Quantity:
$46.39

27
Hayward Compression Gasket | SPX1485G
Hayward Compression Gasket | SPX1485G
Quantity:
$8.23

28
Hayward Pump Mounting Screw Set with Washer | ECX1161Z2
Hayward Pump Mounting Screw Set with Washer | ECX1161Z2
Quantity:
$12.12

29
Hayward Compression Fitting with Gasket | SPX1485DA
Hayward Compression Fitting with Gasket | SPX1485DA
Quantity:
$26.60
