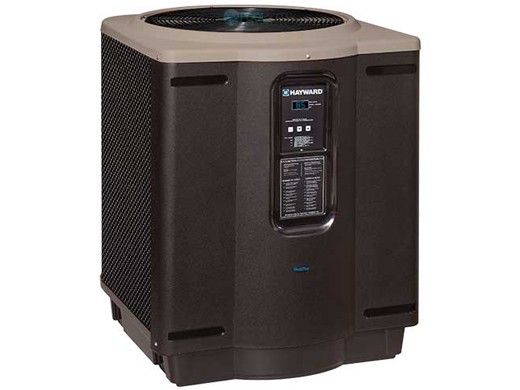

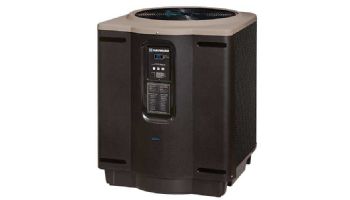

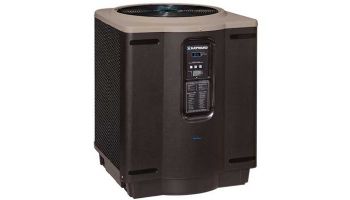

Hayward HeatPro Heat Pump | 95K BTU | Square Platform | W3HP21004T
$3,899.00
Parts Available- An Ultra Gold corrosion-resistant evaporator fin increases durability in coastal environments
- A vinyl-coated fan guard protects the fan against the elements and debris
- Stainless steel hardware eliminates corrosion
- A UV-resistant, injection molded shell resists rust and deterioration
- Online part number W3HP21004T is the direct replacement for part number HP21004T.
OVERVIEW
Imagine if anytime you wanted to take a dip in the pool-early in the season, late in the fall or just one evening after dark-your pool's temperature was perfect! Hayward's HeatPro Heat Pump, a high-efficiency heater, gives you the ideal water temperature while using less energy than natural gas heaters. It offers an alternative way to heat your pool that is safe, reliable, and energy efficient.
To heat your pool water efficiently, the HeatPro takes the heat from the surrounding air and uses it to warm the water in your pool eliminating wasted energy. Its digital LED control panel provides an easy-to-read digital temperature display, and shows diagnostic codes for quick identification of components that might need service.
Designed with the consumer in mind, the HeatPro's round base and compact footprint is ideal for retrofit replacements, allows for easy installation, and has integrated hurricane tie-downs to meet local codes. Also, adding value is its ArmourCoil protected heat exchanger, which allows the water passing through the system to be heated and returned to the pool. With its precision electronic temperature control, the perfect water temperature is constantly maintained, providing continued energy savings. The HeatPro Heat Pump can save you up to 80% on your heating costs, paying for itself in just one year. Why not save money, savor your backyard oasis and be environmentally conscience-all while staying cool.
Hayward HeatPro heat pumps incorporate titanium counter-flow heat exchangers for unrivaled and uncompromising performance even under the harshest conditions. Other key features include: heavy-duty, super-quiet scroll compressors; durable injection-molded UV-resistant body panels that are impervious to rust and deterioration; stainless steel hardware; and a polyethylene screen to protect the evaporator coil from damage. Plus, Hayward HeatPro heat pumps are lightweight, compact and easy to install or service, making them ideal for both new pools and spas and existing system upgrades.
To heat your pool water efficiently, the HeatPro takes the heat from the surrounding air and uses it to warm the water in your pool eliminating wasted energy. Its digital LED control panel provides an easy-to-read digital temperature display, and shows diagnostic codes for quick identification of components that might need service.
Designed with the consumer in mind, the HeatPro's round base and compact footprint is ideal for retrofit replacements, allows for easy installation, and has integrated hurricane tie-downs to meet local codes. Also, adding value is its ArmourCoil protected heat exchanger, which allows the water passing through the system to be heated and returned to the pool. With its precision electronic temperature control, the perfect water temperature is constantly maintained, providing continued energy savings. The HeatPro Heat Pump can save you up to 80% on your heating costs, paying for itself in just one year. Why not save money, savor your backyard oasis and be environmentally conscience-all while staying cool.
Hayward HeatPro heat pumps incorporate titanium counter-flow heat exchangers for unrivaled and uncompromising performance even under the harshest conditions. Other key features include: heavy-duty, super-quiet scroll compressors; durable injection-molded UV-resistant body panels that are impervious to rust and deterioration; stainless steel hardware; and a polyethylene screen to protect the evaporator coil from damage. Plus, Hayward HeatPro heat pumps are lightweight, compact and easy to install or service, making them ideal for both new pools and spas and existing system upgrades.
Specifications:
| Brand | Hayward |
| Sub Brand | Heat Pro |
| Item | Heat Pump |
| Series | H-Series |
| Series | H-Series |
| Heat Output BTUH | 95,000 |
| Coefficient of Performance | 6.2 |
| Refrigerant Model | R410A |
| Voltage Rating | 230 V |
| Minimum Circuit Ampacity | 36 A |
| Maximum Breaker Size | 50 |
| Flow Rate | 30 to 75 gpm |
| Control Type | Digital Electric, Dual Thermostat |
| Cabinet Width | 30-1/4 Inch |
| Cabinet Height | 37 Inch |
| Cabinet Depth | 34 Inch |
| Water Connection | 2 Inch x 2-1/2 Inch Unions |
| Housing Material | Stainless Steel |
Brand: HAYWARD
SPECIFICATIONS
BTU Rating
95K
Voltage
230V
Type
Inground
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 20 questions
Browse 20 questions
and 9 answers
How much to run this , how many degrees will this change the water in a 15000 gallon pool and how long does it take to change the temperature??
Will this work Ok on a 23,000 gallon pool with an auto cover?
Will this heater work on above ground pools?
We live in Tucson, AZ and have a 10,000 gallon pool. Is this the best Heat Pump pool heater for us?
BEST ANSWER: My Pool is about 8500 gallons. This heater has great reviews.I live in southern fl . It takes about an hour or less per degree when heater is on. The warmer the air temperature the faster it will heat. The 9500 should be good for your pool. I use a solar blanket in winter months really helps . I keep Pool at 83 to 85 cost about a dollar a day. To run. Hope this helps.
- Reply
- Inaccurate
- John P on Feb 26, 2019
- Purchased on Oct 30, 2018
refrigerant is leaking is ther a common area for this to leak ?
will this work with an above ground pool?
BEST ANSWER: That's what I use it for. Works great!
- Reply
- Inaccurate
- Ami H on Jun 18, 2021
- Purchased on May 16, 2020
Will this work on an above ground pool?
I have propane, above ground pool. Will it work?
BEST ANSWER: This is an electric heat pump. You would need a different heater if using with propane.
- Reply
- Inaccurate
- Ami H on Mar 10, 2021
- Purchased on May 16, 2020
JUst wondering what fautly codes are F 5 and LP HP?
BEST ANSWER: Your owner's manual should have explanations for all of the display codes. You can find the owner's manual on the resources tab of the product pages.Here are the display code meaning from this heater's owner's manual.
F3: Unit currently in defrosting cycle (the fan works but the compressor is stopped). This is normal operation when outside temperatures are cold.
LP & LP3: Shortage of refrigerant gas in the unit or faulty low pressure control. The digital display will show LP3 after 3 LP faults and shut down your pool heater. The pool pump will also be stopped for protection if the unit’s internal time clock feature is used. If LP or LP3 occurs you should call for service.
HP & HP3: Low water fl ow to the unit or faulty high pressure control. Check water flow. Backwash filter and/or heater. The unit will show HP3 after 3 HP faults. This will stop your heater for protection.
F3: Unit currently in defrosting cycle (the fan works but the compressor is stopped). This is normal operation when outside temperatures are cold.
LP & LP3: Shortage of refrigerant gas in the unit or faulty low pressure control. The digital display will show LP3 after 3 LP faults and shut down your pool heater. The pool pump will also be stopped for protection if the unit’s internal time clock feature is used. If LP or LP3 occurs you should call for service.
HP & HP3: Low water fl ow to the unit or faulty high pressure control. Check water flow. Backwash filter and/or heater. The unit will show HP3 after 3 HP faults. This will stop your heater for protection.
- Reply
- Inaccurate
- Sarah M Staff on Feb 10, 2020
how loud is this unit? im looking for the quietist possible.
BEST ANSWER: It is very quite...hardly hear it running....
- Reply
- Inaccurate
- Dean S on Feb 2, 2020
- Purchased on Sep 12, 2019
Does Hayward make a pump that will cool and heat?
I have a 35,000 gallon pool. Please advice best way to heated it?
I have a 20k gallon Inground pool and I’m looking for the best electric heater?
We cannot get our brand new unit to turn on, is there some trick to starting a new unit. It is getting power, but the switch went turn it on.it is a question, how do you start the unit?
does the hayward heat pump, w3hp21004t have an auto defroster?
Is there a cover for this unit for off season ?
Can this be used for an aboveground pool?
How do I winterize my hayward pro pool heat pump?
How much is shipping to Venice , Florida? Is tax collected?
What is shipping cost to Desert Hot Springs, CA 92240 ?
REVIEWS
4.8 / 5.0
4 Reviews
Can't go wrong with a Hayward -
Arrived on time - Very easy to install - Only took me about 4 hours - Thought I would need help but after checking around and finding everyone wanting a couple thousand to do it I just decided to give it a go myself.
Works great, keeps my 16,000 gallon pool at 90 degree's without a pool cover -
Works great, keeps my 16,000 gallon pool at 90 degree's without a pool cover -
- Was this review helpful? Yes (10) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (10) No (0)
- Flag as Inappropriate
Great purchase
Great service and delivery. Easy set up and operation. Heated po to 83 in under 6 hours. Runs only a brief time overnight to maintain temperature.
- Was this review helpful? Yes (4) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (4) No (0)
- Flag as Inappropriate
Great Product
We got it installed and it only took a few days to get the pool water up from low 60's to a comfortable 84. It is great to be able to swim in South Texas in January!
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (2) No (0)
- Flag as Inappropriate
Pool Heater
Unfortunately the pool heater I received was not the one originally advertised. The customer service however has been fantastic
- Was this review helpful? Yes (3) No (1)
- Flag as Inappropriate
- Was this review helpful? Yes (3) No (1)
- Flag as Inappropriate
