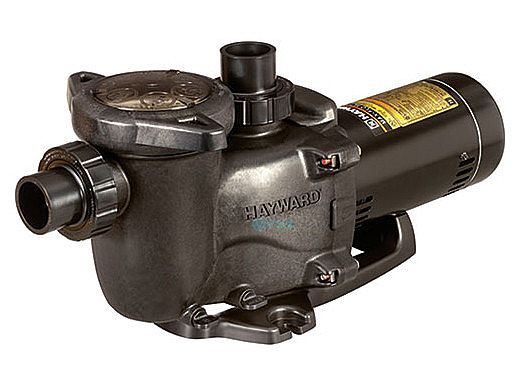

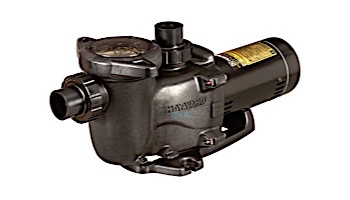

For entry-level applications, MaxFlo XL pumps provide advanced hydraulics while maintaining the economy and performance of the proven MaxFlo family.
Your pool pump is the central element to your pool's "circulation" system. A pump keeps the water moving throughout your pool's equipment system. The Max-Flo XL delivers the constant power needed for circulating and filtering water through your swimming pool. With its heavy-duty, high performance motor, it is prepared to handle any pool environment. This makes the Max-Flo XL pump, the perfect pump for new construction pools or for a current pool owner looking to replace an existing one.
MaxFlo XL is the ideal self-priming, medium-head pump for entry-level, new construction and aftermarket applications. MaxFlo XL’s advanced hydraulics deliver the performance and reliability pool pros need, while its silent operation, conveniences and exceptional value will make it a favorite with pool owners.
Applications
- In-ground pools of all types and sizes
- In-ground spas
Features
- All models include 1 1/2" x 2" CPVC union connections
- Elevated base insures better ventilation for cooler running and protection from flooding
- Pressure testable to 50 psi maximum
- Heavy-duty, high performance motor is designed for environments up to 122F
- Extra leaf-holding capacity basket extends time between cleaning
- Tri-Lock cam and ramp strainer cover design seals with less than a quarter turn
- See-through strainer cover lets you see when the basket needs cleaning
- Service-ease design provides easy access to internal components by removing only four bolts
- Self-priming
MOTORS
SPX2705Z1M Motor, 3/4 H.P., Threaded Shaft (Single Phase, 60 Cycle 115V/208-230V)
SPX2705Z1ME Motor, 3/4 H.P., Energy Efficient Threaded Shaft (Single Phase, 60 Cycle 115/208-230V)
SPX2707Z1M Motor, 1 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/208-230V)
SPX2710Z1M Motor, 1 1/2 H.P., Threaded Shaft (Single Phase, 60 Cycle 115/208-230V)
SPX2715Z1ME Motor, 2 H.P., Energy Efficient, Threaded Shaft (Single Phase, 60 Cycle 115/208-230V)
SPX2707Z2M Motor, 1 H.P., 2-Speed, Threaded Shaft (Single Phase, 60 Cycle 230V)
SPX2710Z2M Motor, 1 1/2 H.P., 2-Speed, Threaded Shaft (Single Phase, 60 Cycle 230V)
SPX2715Z2M Motor, 2 H.P., 2-Speed, Threaded Shaft (Single Phase, 60 Cycle 230V
