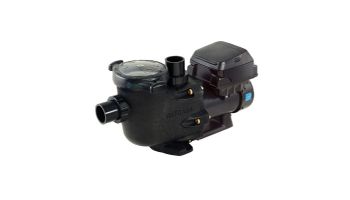

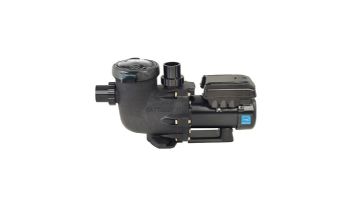

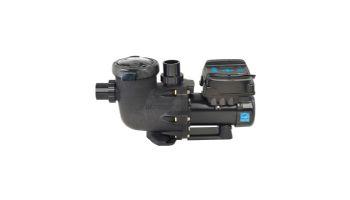

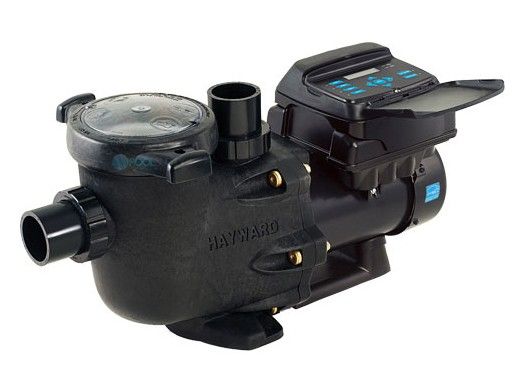

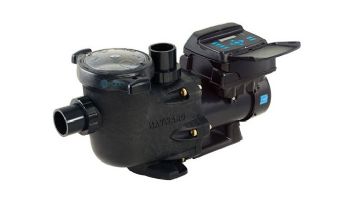

Home Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP

Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP Hayward TriStar VS Variable Speed Pool Pump | 2.7HP 230V | W3SP3206VSP
$1,799.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Permanent Magnet, Totally Enclosed Fan-Cooled Motor
  • Side and Rear Port
  • Upgraded Motor Drive
  • Wall-Mountable Touchpad Control
  • 600-3450 RPM, 2" x 2.5" Union Connections
  • Online part number W3SP3206VSP is the direct replacement for part numbers SP3206VSP and SP32950VSP.
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
PARTS
OVERVIEW
TriStar VS

According to EPA ENERGY STAR® 3rd party test data, Hayward TriStar® VS variable speed pool pumps are the most energy efficient on the market. Designed for medium to large pools, they can save up to 90% on energy costs or as much as $1500 per year, compared with single speed pool pumps.

Features:
  • Permanent magnet, totally enclosed fan cooled (TEFC) motor delivers maximum energy efficiency and reliability
  • Exceptionally quiet compared to single speed pumps
  • Fully programmable, touch pad control can be rotated to four different positions or mounted to the wall for more convenient access
  • Universal compatibility: operates independently, with Hayward automation, or with competitive systems (via relay control)
  • Extra-large basket design ensures easy leaf and debris removal and extends time between cleanings
Simple Installation with Quieter-Than-Ever Performance

No-rib strainer basket with see-through cover ensures easy debris removal
Upgraded motor drive delivers significantly quieter high-speed operation than other leading models
Advanced hydraulic design provides ample power to replace most highperformance pumps up to 3 HP
Wall-mountable touchpad control can be rotated in four directions
Side and rear ports accommodate both high and low voltage connections for simple installation
Permanent magnet, totally enclosed fan-cooled motor offers more efficient operation and long-lasting reliability

Industry-Leading Energy Efficiency
As a member of the TriStar® VS family-the most energy-efficient pumps among leading brands, according to EPA ENERGY STAR® third-party testing-TriStar VS saves pool owners up to $1,500 per year. Its ENERGY STAR rating means local energy rebates may apply, too.

Seamless Retrofitting
With dual-voltage capabilities, two pump base options and 2"; x 21/2" CPVC union connections, TriStar VS is easy to install in both new and existing pool pads and doesn't require costly rewiring.


Brand: HAYWARD
SPECIFICATIONS
Horsepower
2.5 HP
Speed
Variable Speed
Voltage
230V
Pipe Size
2 1/2"
Color
Black
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 1 answer
Should I replace single speed 1.5 hp with this 2.7 hp for max efficiency for a pool around 9k gallons?
A shopper on May 4, 2020
WHY DOES THIS PRODUCT STATE IT IS A 27 HP AND IN THE DISCRIPTION IT STATES IT'S A 2.5 HP ?
A shopper on Oct 15, 2020
how do I connect the user interface on the pump and the the pool automation since they both use the same connector?
fmanger on Aug 23, 2020
What should this pump sound like??
Randell S on Mar 3, 2020
what is the normal operating speed?
Freddie C on Apr 17, 2020
BEST ANSWER: As a variable speed pump you can set the maximum speed any where between 600 and 3400 rpms. I run at 2875 for 3 hours then 1000 for additional hours as needed based on temperature of pool. I set maximum at 3000 rpm to keep pressure down for quick cleaning. Quick cleaning runs for 1 hour.
How do I turn off water to pump so I can clean the leaf basket?
Marty P on Jan 23, 2020
REVIEWS
5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
0
0
0
0
Rated 5 out of 5
Pool pump
So far pump is doing well. Initial issue resolved was when I expected equipment to be hear and wasn’t I learned through phone call that it had not even left? Great customer service person got it to me two days later
April 12, 2020
Purchased
over 2 years ago
Rated 5 out of 5
Pool Pump
It arrived as scheduled and appears to be in working order. Nice transaction.
May 24, 2021
Purchased
1 year ago
RESOURCES
WARRANTY
Warranty applies only to products that were purchased from Hayward authorized sellers. Pool Supply Unlimited is a Hayward Authorized Online Reseller.

See Warranty Information PDF for warranty details.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/22/2022. For the most current information and full warranty policy please visit www.hayward-pool.com


 Adobe Acrobat PDF Warranty Information
