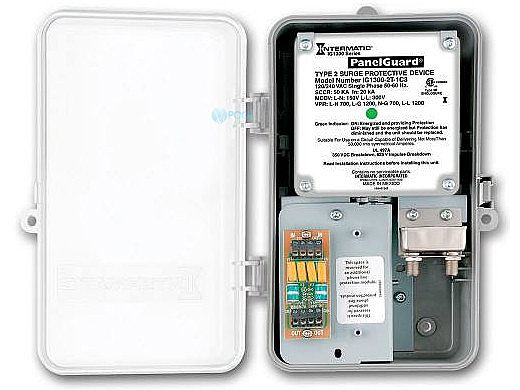

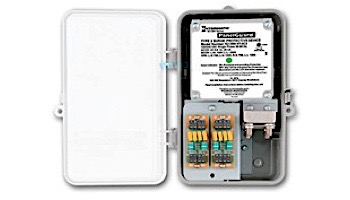

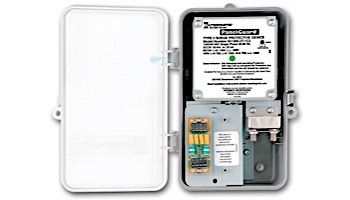

Intermatic Surge Protective Device | 120-240V AC Single (Split) Phase | Single Speed | Metal Box | IG1300-2T-1C3

$319.80
Intermatic Surge Protective Device | 120-240V AC Single (Split) Phase | Single Speed | Metal Box | IG1300-2T-1C3
The IG Series Surge Protective Devices are designed for a variety of  Type 1 and Type 2 applications. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA listed to ANSI/UL 1449 3rd edition, the IG series is approved for residential/light commercial services (AC power, telephone and/or cable)

FEATURES
  • Type 3R outdoor rainproof enclosure for indoor/outdoor installation (9.38" H x 5.25" W x 4" D)
  • 120, 240, VAC Single (split) Phase
  • Six modes of surge protection (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2)
  • Provides protection for two telephone lines (analog phone Line, modem, or DSL) and one coax line (cable TV, cable internet or satellite TV)
  • CSA Listed to UL 1449 3rd Edition
  • NEMA 3R Outdoor Raintight Enclosure for Indoor/Outdoor installations (9.38 in. H x 5.25 in. W X 4.0 in. D)
  • Wire configuration: L1, L2, N, GND
  • Limited 5-year warranty
  • $10,000 Connected Equipment Coverage Warranty for 5 years on Appliances and Electronics
SPECIFICATIONS:
  • Service Voltage: 120, 240 VAC
  • Type: 2
  • Phase: 2
  • Leads Number Length: 4/24
  • Gauge Wire: 12
  • Wire Configuration: L1, L2, N/GND
  • Nominal Discharge Current: 20 kA
  • Short Circuit Current Rating: 50 kA
  • Maximum Continuous Operating Voltage: 150 L-N, N-G, 300 L-L, L-G
  • Voltage Protection Rating L-N: 700
  • Voltage Protection Rating L-L: 1200
  • Voltage Protection Rating L-G: 1200
  • Voltage Protection Rating N-G: 700
Comparison of models:



Brand: INTERMATIC
