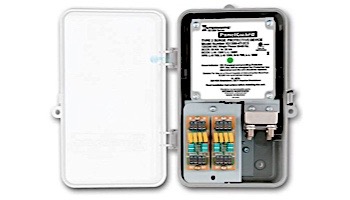

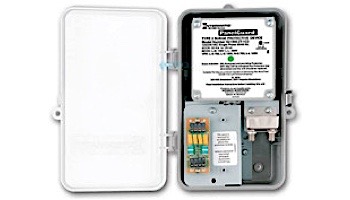

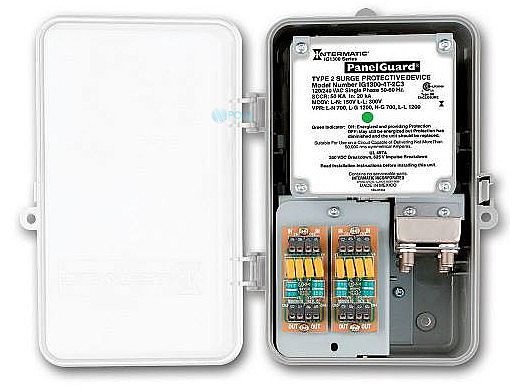

The IG Series Surge Protective Devices are designed for a variety of Type 1 and Type 2 applications. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA listed to ANSI/UL 1449 3rd edition, the IG series is approved for residential/light commercial services (AC power, telephone and/or cable).
FEATURES:
- Type 2 SPD applications
- 120, 240, VAC Single (split) Phase
- 6 Modes of Surge Protection (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2)
- Provides protection for 4 Telephone Lines (Analog Phone Line, Modem, or DSL) and 2 Coax Line (Cable TV, Cable Internet or Satellite TV)
- CSA Listed to UL 1449 3rd Edition
- NEMA 3R Outdoor Raintight Enclosure for Indoor/Outdoor installations (9.38 in. H x 5.25 in. W X 4.0 in. D)
- 5 Year Product Warranty
SPECIFICATIONS:
- Service Voltage: 120, 240 VAC
- Type: 2
- Phase: 2
- Leads Number Length: 4/24
- Gauge Wire: 12
- Wire Configuration: L1, L2, N/GND
- Nominal Discharge Current: 20 kA
- Short Circuit Current Rating: 50 kA
- Maximum Continuous Operating Voltage: 150 L-N, N-G, 300 L-L, L-G
- Voltage Protection Rating L-N: 700
- Voltage Protection Rating L-L: 1200
- Voltage Protection Rating L-G: 1200
- Voltage Protection Rating N-G: 700
Comparison of models:
