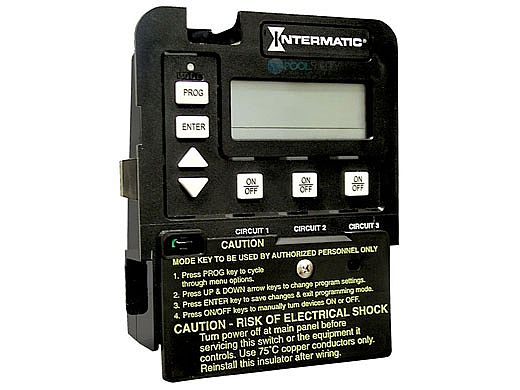

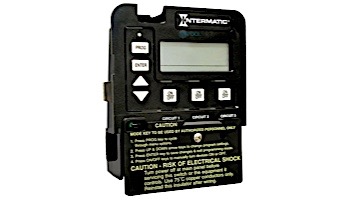

Intermatic P1000ME Series Multipurpose 24-Hour Control 3-Circuit Digital Timer Mechanism | P1353ME

Name: Intermatic Switch Kit Fireman HTR Control | 156T4042A
Brand: Intermatic
SKU: 49638
Availability: InStock

$422.45

Intermatic P1000ME Series Multipurpose 24-Hour Control 3-Circuit Digital Timer Mechanism | P1353ME

This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule.

The P1353ME mechanism can be installed into almost any Intermatic enclosure and has the ability to program up to three circuits. Choose between seven pre-programmed modes of operation, which include single speed pump or 2-speed pump/cleaner pump combinations. In addition, programmed modes that include auxiliaries can control pumps up to 3 HP as well as underwater, landscape and/or fountain lighting. Countdown and Override features allow cycle interruptions when pool/spa service is required. All timing and protection associated with filter pump/cleaner pump combinations and two-speed pumps has already been integrated into the software.

Don't forget to protect your swimming pool investment with the 178PA28A Freeze Sensor and 156T4042A Heater protection switch. See "Items We Suggest" to the right for more info.

Features

Controls single and two-speed pumps and cleaner/booster pumps
Three ON/OFF events per circuit per day
Seven preprogrammed modes, see chart below for details
Freeze and heater protection
LCD readout
Multivoltage input and output
Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system

Applications

Pool/Spa Pumps
Lights
Heaters
Cleaner Pumps
Booster Pumps

Specifications P1353ME
Input Voltages Display	120-240 VAC, 50/60 Hz
Number of Circuits	3
Switch Type	3-SPST
Heater Protection Switch	No
Motor	17 FLA, 120/240 VAC, 50/60 Hz 80 LRA, 120/240 VAC, 50/60 Hz
Resistive	17 A, 120/240 VAC, 50/60 Hz
Tungsten	5 A, 120/240 VAC, 50/60 Hz
Warranty	1-year

Brand: Intermatic

REVIEWS

Q&A

Intermatic P1000ME Series Multipurpose 24-Hour Control 3-Circuit Digital Timer Mechanism | P1353ME

$422.45

Circuits:

Quantity

Proposition 65 Warning

Purchase options

Related items

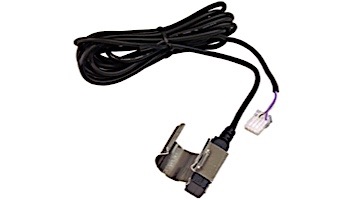

Intermatic Freeze Sensor | 178PA28A

$118.47

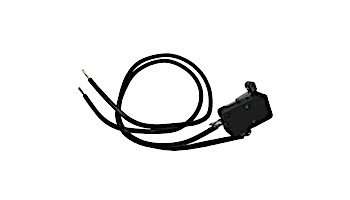

Intermatic Switch Kit Fireman HTR Control | 156T4042A
