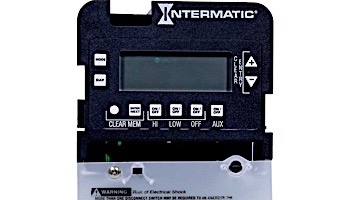

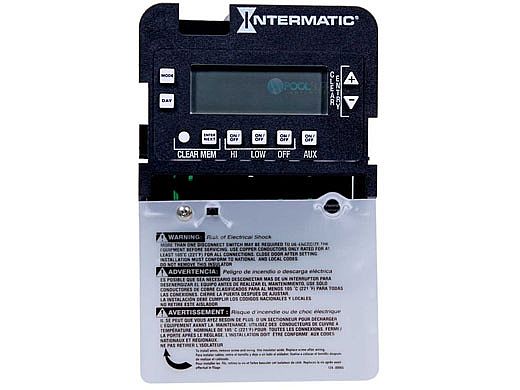

Intermatic P1000ME Series Seasonal 4-Circuit Digital Timer Mechanism | P1403ME

The PE103/P1403ME timer is a programmable pool and spa three-circuit device used for two-speed pumps and auxiliary equipment. The pool timer features a programmable Seasonal Adjust offset that automatically adjusts filter pump ON/OFF schedules according to season. The seasonal adjust feature automatically operates the filter pump longer during peak summer swimming months and then shortens run times during colder months. This maximizes your pump efficiency and minimizes your utility bills.

Pool and Spa Two-Speed Pump Motor Controller
Time Switch
Power Consumption: 7 watts maximum
Events: Time switch can support up to 3 timed ON and 3 timed OFF events (1 ON/OFF event for high, low, and auxiliary circuits)
Clock Backup: Up to 100-hour Supercapacitor
Minimum ON or OFF time: 1 minute
Maximum ON or OFF time: 23 hours, 59 minutes
Knockouts: Combination 1/2 - 3/4 inch size, 1 on back and each side, 2 on bottom
Wire Size: AWG #10 through #18

Specifications P1403ME
Input Voltages Display	120 to 277 VAC, 50/60 Hz
Number of Circuits	4
Motor	17 FLA, 80 LRA @ 240 VAC 20A
Inductive & Resistive	24 VAC, 120-277 VAC, 16 FLA 96 LRA @ 120 VAC; 17 FLA, 80 LRA 240 VAC 20A Resistive @ 28 VDC
Tungsten	5 A, 120/277 VAC
Enclosure	Type 3R indoor/outdoor lockable metal enclosure
