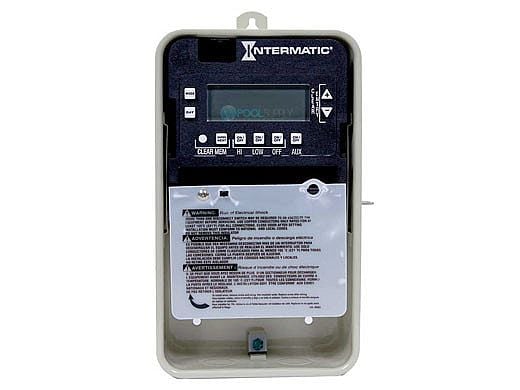

Control single and two-speed pumps and auxiliary equipment with this 3-circuit programmable device. The seasonal adjustment feature can be programmed to automatically adjust filter pump on/off schedules according to the season.



The seasonal adjust feature automatically operates the filter pump longer during peak summer swimming months and then shortens run times during colder months. This maximizes your pump efficiency and minimizes your utility bills.



Specifications PE103
Input Voltages Display	120-277 VAC, 50/60 Hz
Number of Circuits	3
Switch Type	4-SPST
Heater Protection Switch	No
Motor	16 FLA, 96 LRA, 120 VAC, 50/60 Hz 17 FLA, 80 LRA, 240 VAC, 50/60 Hz
Resistive	20 A, 28 VDC, 50/60 Hz 30 A, 24 VAC, 50/60 Hz
Inducive	30 A, 24 VAC, 50/60 Hz
Tungsten	5 A, 120/277 VAC, 50/60 Hz
Warranty	1-year

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
