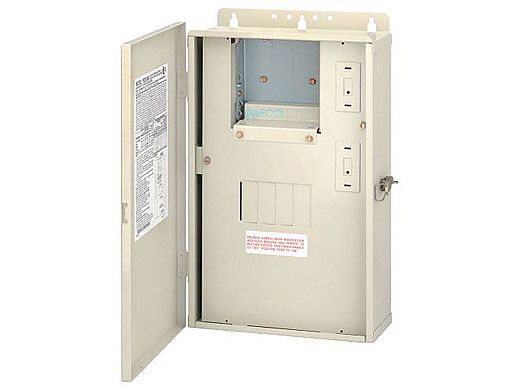

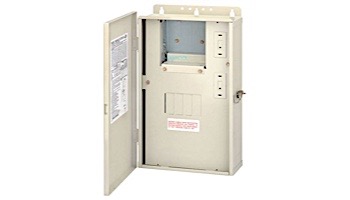

Intermatic PE20000 Series Pool/Spa Control System with Type 3R Load Center Only | 60 AMP | PE20000

Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.

Intermatic makes it simple to convert your PE Series Digital Control into a Wireless Control System. Simply install a Panel-Mounted Transceiver (PE650) and a Hand-Held Transceiver (PE950) to the PE20000 Series Control, which allows the system to display the status of each of the three circuits as well as pool or spa water temperature, pool or spa thermostat set point, heating status and overall communication status.

Features

60 A, 4-position breaker base
3-SPST mechanism (P1353ME) controls single and two-speed filter pumps, cleaner/booster pumps, and pool/spa landscape lighting
P1353ME sold separately
Load center dead front has two knockouts for switches or GFCIs
Use also with MultiWaveTM Systems
Wiring devices may be installed in these load centers with the use of Standoffs, sold separately

Applications

Filter Pumps
Cleaner Pumps
Booster Pumps
Lighting

Specifications PE20000
Load Center Ratings	60 Hz, 60 A, 240 VAC, 50 Hz, 60 A, 240 VAC, 60 Hz, Single Phase
Input Voltages Display	120/240 VAC, 50/60 Hz
Heater Protection Switch	No
Auxiliary Switch	2 A, 24 VAC, 50 Hz, 2 A, 24 VAC, 60 Hz
Motor	80 LRA, 17 FLA, 120/240 VAC, 50/60 Hz
Resistive	17 A, 120/240 VAC, 50/60 Hz
Tungsten	5 A, 120/240 VAC, 50/60 Hz
Number of Breaker Knockouts	4
