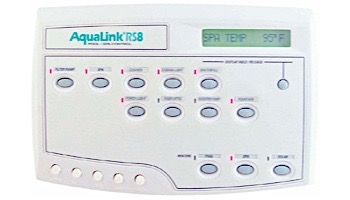

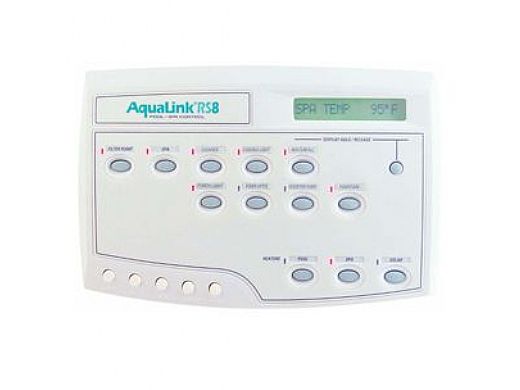

Home Jandy AquaLink RS8 Indoor Wired Control Board All Button | Pool or Spa Only Single Body | 6887

Jandy AquaLink RS8 Indoor Wired Control Board All Button | Pool or Spa Only Single Body | 6887

Call us to order.
Jandy AquaLink RS8 Indoor Wired Control Board All Button | Pool or Spa Only Single Body | 6887
Jandy AquaLink RS8 Indoor Wired Control Board All Button | Pool or Spa Only Single Body | 6887
Basic Operation:
The AquaLink® RS can turn your pool/spa equipment on and off in two ways:
First, you can press the button of the equipment you want to turn on to activate the equipment. When the LED above a button is illuminated, it means that equipment is on (with the exception of the heater buttons; see Section 3.4 for more details). When the LED above a button flashes, the equipment is being protected by a built-in safety delay.
Second, you can also program the equipment to turn on and off at specific times.
Battery Back-Up
In the event of a power failure, DATE and TIME will be backed-up by the coin cell battery located in the power center enclosure. All other programs and Menu setups do not require battery to store information.
Power Interruption
In the event there is a power interruption, and the AquaLink® RS system is in service or time out mode, the system will default to Auto. In previous firmware versions, the system would default to last mode of operation.
Filter Pump Button
The FILTER PUMP button turns the main fil tra tion pump on and off for circulation to the pool. This pump also activates if the spa is turned on, if the pool cleaner is turned on, if a spa spill-over effect is activated, or if maintain heat is active.
The main filtration pump circulates the pool or spa water through the filter and heater. It must be on if you want to display the pool temperature, or if you want to heat the pool.
