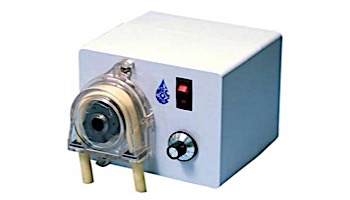

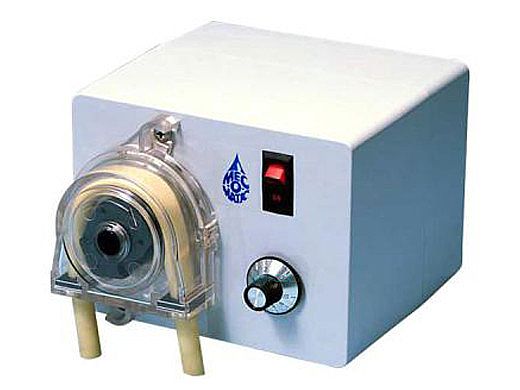

Chemical solution and slurry metering pumps designed, engineered, and built to last. The pump case is molded of a rugged, chemical resistant ABS. Mounting pads and a built-in wall mounting bracket allow a choice of flat surface or wall mounted installation.



The thermal or impedance protected gear motor is safe, quiet and dependable. All metal gearing parts are heat-treated and the output shaft is supported by heavy-duty bearings.



The feeder head is molded of UV and acid resistant polycarbonate and is designed to snap on and off without tools. A 10-minute solid-state electric current interrupter is a standard feature, built into every MEC-OMATIC Dolphin Series pump.



Pump Head Materials	Chemical Resistant Resin
Enclosures	Chemical Resistant Resin
Injection Fitting	PVC
Tubing Available	Norprene, Viton
Suction Tubing	PE
Discharge Tubing	PE
Connection Size Available	0.25"
Power Input	115 VAC - 60 HZ, 230 VAC - 50/60 HZ
Average Current Draw	UD10: 115 VAC: Amps - 0.42, UD50: 115 VAC: Amps - 0.62 / UD75: 115 VAC: Amps - 0.72, 230 VAC / 60 HZ: Amps - UD10: 230 VAC / 60 HZ: Amps - 0.30, UD50: 230 VAC / 60 HZ: Amps - 0.34, UD75: 230 VAC / 60 HZ: Amps - 0.36, UD10: 230 VAC / 60 HZ: Amps - 0.35, UD50: 230 VAC / 60 HZ: Amps - 0.40, UD75: 230 VAC / 60 HZ: Amps - 0.42
Accessories	KOP Kits Gauges Dampeners Pressure Relief Valves Tanks Pre-Engineered Systems Process Controllers
