Home Replacement Pentair Square Flange Motor Energy Efficient | 115V/208/230V 1HP | Almond | 071314S BPA450 | EB841A | ASB841A | 355010S
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

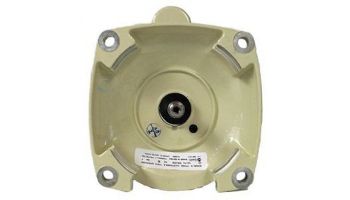

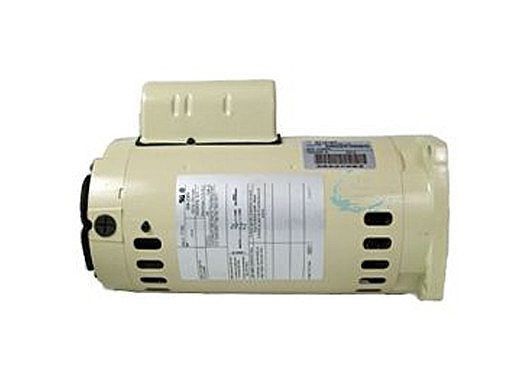

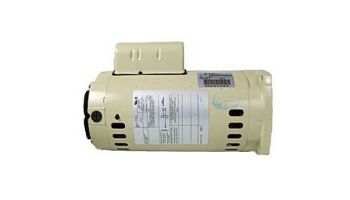

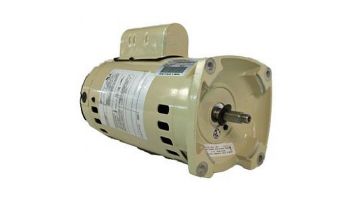

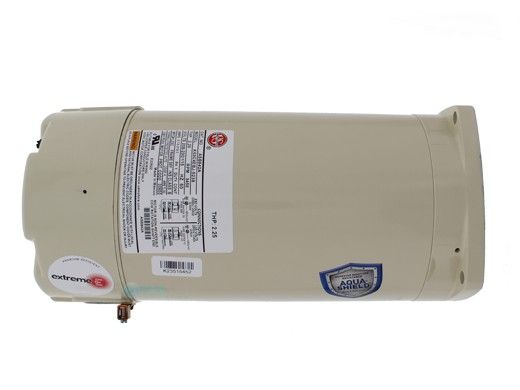

Replacement Pentair Square Flange Motor Energy Efficient | 115V/208/230V 1HP | Almond | 071314S BPA450 | EB841A | ASB841A | 355010S

Replacement Pentair Square Flange Motor Energy Efficient | 115V/208/230V 1HP | Almond | 071314S BPA450 | EB841A | ASB841A | 355010S Replacement Pentair Square Flange Motor Energy Efficient | 115V/208/230V 1HP | Almond | 071314S BPA450 | EB841A | ASB841A | 355010S Replacement Pentair Square Flange Motor Energy Efficient | 115V/208/230V 1HP | Almond | 071314S BPA450 | EB841A | ASB841A | 355010S
$246.41

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer
  • Replacement pentair motor - almond color
  • Permanent split capacitor
  • Single phase
  • Drip proof

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Pentair WhisperFlo Energy Efficient Pool Pump | 115/230V 1HP Full Rated | WFE-4 | 011513
Pentair WhisperFlo Energy Efficient Pool Pump | 115/230V 1HP Full Rated | WFE-4 | 011513
Replacement Parts

Pentair WhisperFlo Standard Efficiency Pool Pump | 115/230V 1HP Up Rated | WF-24 | 011772
Pentair WhisperFlo Standard Efficiency Pool Pump | 115/230V 1HP Up Rated | WF-24 | 011772
Replacement Parts

RELATED ITEMS
  • Super-Pro Electrical Whip Kit | .5" Flex Conduit 6' Long 4-Wire for 220V or 110V | 12 Gauge Solid Wire | Complete with Electrical Ends | WPLT05-64-SP
    Super-Pro Pump Electrical Wiring Kit 4-Wire with Electrical Ends 6'

    $28.68
OVERVIEW
This motor is a direct replacement for full rated and up-rated Energy Efficient Pentair Whisperflo models 011513 WFE-4 & 011518 WFE-26.

You can also upgrade standard efficiency Whisperflo models 011580 WF-4 & 011773 WF-26 to an energy efficient motor by simply using this motor which is a great investment and will pay for itself over time.

Features
  • Switchless
  • No Base
  • Ball bearing
  • 60 Hz
  • 50 DEG C Ambient
  • Rotation (CCW Pump End)
  • Stainless Steel Shafts


Brand: Pentair
SPECIFICATIONS
Horse Power
1 HP
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 14 questions Browse 14 questions and 6 answers
will this replace my model 340038 1hp pentair motor for a superflo high performance pump?
A shopper on May 13, 2021
BEST ANSWER: Yes. I had a 340038 1HP motor got my superflo that finally started squealing. This motor bolts up to it as a replacement with no issues. Things to be noted though, capacitor is in the rear housing instead of on top, the motor is not branded as pentair when it arrives, and the grounding (bonding) location is slightly further away so I had to extend mine. Hope that helps others.
is this motor in stock?
A shopper on Mar 31, 2021
BEST ANSWER: Enter an answer to this quewill this replace my model 340038 1hp pentair motor for a superflo high performance pump?stion.
Will this motor replace WF-24?
A shopper on Jun 26, 2021
Does it come with screws and bolts?
A shopper on Jun 1, 2021
BEST ANSWER: No, I had to use the originals
Does this replace wc - 24 ?
Tom L on Nov 28, 2016
BEST ANSWER: I can not answer that but I suggest you call them direct. I have bought a couple of motors from them, Prices is good and the service is great.
i have a superflow pentair 348023. i need to replace the motor 196232. Any replacement motor for it?
valentina o on Apr 1, 2022
BEST ANSWER: Can't answer the question, but poolsuppylimited is terrific.
Looking for a 355010S pool pump???
Alejandro M on May 10, 2022
Hi I’m looking for a 355010S pool motor do you have it.???
Alejandro M on May 10, 2022
i need to replace a older pentair motor for wfe-4 , 1hp. the number on top of label is -177450.
the number on the right side is - wfe-4 / 011513. is this a new and improved motor?
will this be a perfect match up ?
Beauregard on Feb 16, 2022
will this replace my CENTURY SQ1102 motor?
A shopper on Feb 2, 2022
Have Pentair WF-26 and is 1.5 hp. This came up as replacement motor, but is 1 hp. Will it work with my WF-26?
Bill J on Dec 12, 2021
will this fit pump model number SF-N1-1A/340038 ? also has 208-30/115V listed on motor
A shopper on Oct 30, 2021
Is this motor in stock? /pool/pentair-355010s-replacement-motor/80340p1
Dianne T on Aug 18, 2021
Will it fit in place of the Pentair super flow half horsepower 011511?
A shopper on May 17, 2021
REVIEWS
4.9 / 5.0
15 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
14
1
0
0
0
Rated 4 out of 5
Replacement
I have a Superflo and the motor went out. This replaced it with no problem.
May 7, 2015
Rated 5 out of 5
Cost savings to replace just the burnt motor rather than the entire pump.
I replaced the motor on our whisperflo pool pump that was probably about 10 years old. It seemed more cost efficient than replacing the whole pump that had nothing else wrong with it besides a shot motor. It was easy to replace and works great! Very quiet and powerful to get the job done.
May 9, 2020
Purchased
over 2 years ago
Rated 5 out of 5
Didn’t have to replace the whole pump assembly, cost me half the cost just switching the motor.
Pump fit and worked great , I was afraid I was going to have to replace the entire pump . Most companies didn’t show a pump motor only replacement, thanks. Delivery was very fast had in about three days . I will recommend you to all my pool buddies. I would recommend always getting the seal kit with the motor!!!
October 17, 2020
Purchased
1 year ago
Rated 5 out of 5
Great replacement
This was great replacement motor for my Pentair pump. Easy to install, runs very quietly!
May 21, 2021
Purchased
1 year ago
Rated 5 out of 5
Value priced, works well, fast shipping
Slightly different than the one shown as the run capacitor on the one I received was on the back of the motor, not the top. Important you review how to install these with YouTube videos! Installation was straight forward and took me maybe 90 minutes to remove the old and install the new. I did buy a replacement seal plate gasket which finally did seal after 2-3 days of retightening the bolts. The motor I received was labeled "US Motors", Nidec Motor Corp, St Louis, MO.Made in Mexico.
May 21, 2021
Purchased
1 year ago
Rated 5 out of 5
Good Company
Great overall purchase and fast shipping! Good company that prides on customer service.
November 30, 2021
Purchased
6 months ago
Rated 5 out of 5
I was impressed with the design and when installed the motor runs very smooth and quiet. So far I like it more than the original by Pentair
I was expecting an original Pentair pump but this is different in design. Moved the switch to 115 volts.
May 25, 2021
Purchased
1 year ago
Rated 5 out of 5
Replacement pump
My 13 year old pool pump died...I ordered this pump it shipped quickly and it was easy to install. My pool was up and running quickly.
July 20, 2020
Purchased
1 year ago
Rated 5 out of 5
Great Price. Outstanding Service!
Great price, fast shipping and outstanding customer service and support from Alen Meza. Alen answered on a Saturday, quickly and professionally answered questions and helped confirm I had the right part. Highly recommend this business.
April 11, 2020
Purchased
over 2 years ago
Rated 5 out of 5
Great Service and Recommendations
Everything was perfect! The pump that was growling like a wounded lion is now purring like a baby kitten.
June 19, 2021
Purchased
11 months ago
