Home Pentair WhisperFlo 2.5HP Energy Efficient 2-Speed Pool Pump Up-Rated 230V | WFDS-30 | 011525 Parts

Pentair WhisperFlo 2.5HP Energy Efficient 2-Speed Pool Pump Up-Rated 230V | WFDS-30 | 011525 Parts

Back to Product

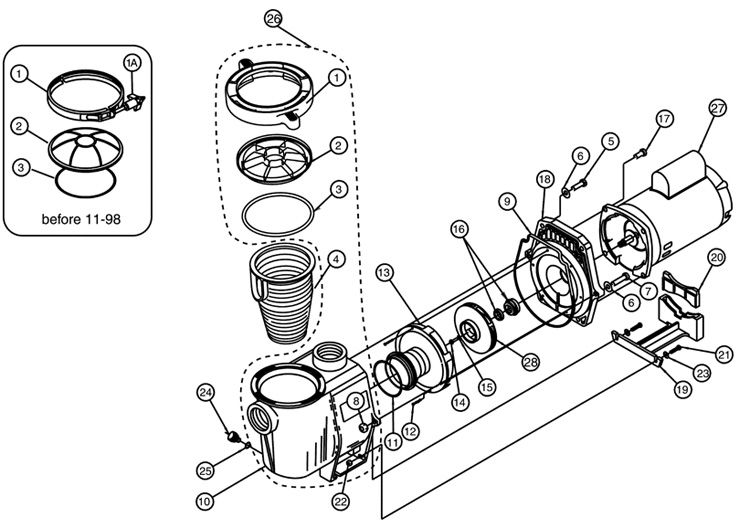

Pentair WhisperFlo 2.5HP Energy Efficient 2-Speed Pool Pump Up-Rated 230V | WFDS-30 | 011525 Parts Schematic

1A

Pentair Plastic Filter Knob CFM/CFW/SMBW Filters | 071136

1

Pentair Cover Clamp Band Assembly Stainless Steel Before 11-98 | 070711

1

Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Black | 357150

1

Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199

2

Pentair WhisperFlo Strainer Cover Before 11-98 | 070795

2

Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151

3

Pentair Cover O-Ring Before 11-98 | 071422

3

Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z

4

Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z

5

Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430

6

Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184

7

Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431

8

Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403

9

Pentair WhisperFlo O-Ring #2-265 Old Style Before 6-94 | 071445

9

Pentair Seal Plate Gasket | Black | 357100 357100Z

9

Pentair WhisperFlo & IntelliFlo Seal Plate Gasket | Almond | 357102 | 357102Z

10

Pentair Volute and Seal Plate Kit | 074565 357149

10

Pentair Housing WFE | Almond | 350015

12

Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z

13

Pentair Whisperflo Diffuser Assembly 3HP Only WFE | Black | 072928

13

Pentair Diffuser Assembly | 0.5HP-2.5HP | WFE-3-8 | 072927 072927Z

14

Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 | 071652Z

16

Pentair PS1000 WFE Seal Kit | 071734S

17

Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z

18

Pentair Whisperflo Intelliflo Seal Plate Kit | Almond | 350201

19

Pentair WhisperFlo WF Motor Support Foot | Almond | 070927

20

Pentair WhisperFlo Foot Insert | Almond | 070929

21

Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z

22

Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406

23

Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183

24

Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z

24

Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z

25

Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z

26

Pentair Volute and Seal Plate Kit | 074565 357149

27

Replacement Square Flange Motor for Pentair Pumps | Energy Efficient | 115/208/230V 0.75HP | Almond | 071313S BPA449 EB661A 355008S | ASB661A

27

Replacement Square Flange Motor for Pentair Pumps | Energy Efficient | Almond | 115V/208/230V 1HP | 071314S BPA450 EB841A 355010S | ASB841A

27

Replacement Square Flange Motor for Pentair Pumps | Energy Efficient | Almond | 208/230V 1.5HP | 071315S BPA451 EB842A 355012S | ASB842A

27

Replacement Motor for Pentair Pumps | High Efficiency | 56 Square Flange | 208/230V 2HP | Almond | 071316S BPA452 EB843A 355014S | ASB843A

27

Replacement Motor for Pentair Pumps | High Efficiency | 56 Square Flange | 208/230V 3HP | Almond | 071317S EB844A 355016S | ASB844A

27

Pentair Replacement Square Flange Motor 2 Speed Energy Efficient | 230V 1HP | Almond | 356630S

27

Replacement Pentair Square Flange Motor Energy Efficient 2 Speed | 230V 1.5HP | Almond | 071320S

27

Replacement Pentair Square Flange Energy Efficient Motor 2 Speed | 230V 2HP | Almond | 071321S

27

Replacement Pentair Motor Square Flange Single Speed | 60Hz 230-115V 0.5HP Full Rated - 0.75HP Up Rated | Almond | 075232S 355018S

27

Replacement Pentair Motor Square Flange | .75HP 230-115V | Almond | 075233S

27

Replacement Pentair 1 HP Motor Square Flange 230-115V Almond | 075234S

27

Replacement Pentair 1-1/2 HP Motor Square Flange 230-115V Almond | 075235S

27

Replacement Pentair 2 HP Motor Square Flange 230-115V Almond | 075236S

27

PENTAIR 075237S MOTOR ALM SQFL 3HP F 230V

27

PENTAIR 355204S MOTOR BLK SQFL 1.5HP F 3PH E 208/230V

27

PENTAIR 355205S MOTOR BLK SQFL 2HP F 3PH E 208/230V

27

Pentair Motor Blk Sqfl 3HP 3PH E 208/230/460V | 355398S | 354812S

27

Pentair Motor Square Flange Energy Efficient | 3 Phase | 208/230/460V 1HP | Almond | 356626S | 354805S

27

Pentair Motor Square Flange | 3 Phase 60Hz 208/230/460V 1.5HP | WFK-6 |354807S | 354807S

27

Pentair Motor Square Flange Energy Efficient | 3 Phase | 208/230/460V 2HP | Almond | 354809S

27

PENTAIR 356629S MOTOR ALM SQFL 3HP F 3PH EE 208/230/460V

27

Pentair Replacement Square Flange Motor 2 Speed Energy Efficient | 230V 1HP | Almond | 356630S

28

Pentair Whisperflo Impeller | 0.5HP Full Rated | WFE-2 WF-23 | 073126

28

Pentair Whisperflo Impeller | 0.75HP | WFE-3 WF-24 | 073127

28

Pentair Impeller | 1HP Full Rate | S17096 073128

28

Pentair WhisperFlo Impeller | 1.5HP | WFE-6 WF-28 | S17097 073129

28

Pentair WhisperFlo Impeller | 2.0HP | WFE-8 WF-30 | 073130

28

Pentair Whisperflo & Intelliflo Impeller Purex | 3HP Full Rate | WFE 12 | 073131

Pentair Whisperflo Pump | Power End Sub Assembly Energy Efficient | 115/208/230V 0.75HP Full Rated - 1HP Up Rated | 075137

Pentair Whisperflo Pump | Power End | 0.5HP Full Rated - 0.75HP Up Rated | 075252

Pentair Whisperflo Pump | Power End | .75F - 1A | 075253

Pentair Whisperflo Pump | Power End | 1F - 1.5A | 075254

Pentair Whisperflo Pump | Power End | 1.5F - 2A 075255

Pentair WhisperFlo Pump Wet End Without Motor | 1HP | 075453

Pentair Whisperflo 2 Speed Toggle Switch with Mounting Plate | Almond | 79129900
