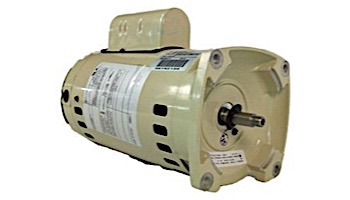

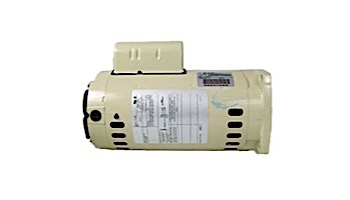

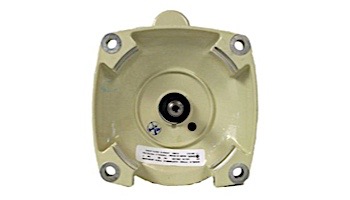

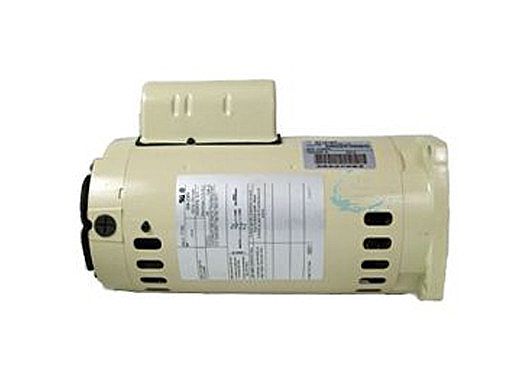

Home Replacement Pentair .5HP FR - .75HP UR Motor Square Flange Single Speed 60Hz 230-115V | Almond | 075232S 355018S
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

Replacement Pentair .5HP FR - .75HP UR Motor Square Flange Single Speed 60Hz 230-115V | Almond | 075232S 355018S

Replacement Pentair .5HP FR - .75HP UR Motor Square Flange Single Speed 60Hz 230-115V | Almond | 075232S 355018S Replacement Pentair .5HP FR - .75HP UR Motor Square Flange Single Speed 60Hz 230-115V | Almond | 075232S 355018S Replacement Pentair .5HP FR - .75HP UR Motor Square Flange Single Speed 60Hz 230-115V | Almond | 075232S 355018S
$179.98

Quantity:
Platinum Preferred Manufacturer
  • This motor used for either 1/2HP Full Rated or 3/4HP Up-Rated Pentair pumps
  • This motor fits: WhisperFlo, SuperFlo, & Pinnacle

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Pentair WhisperFlo .5HP Energy Efficient  Full Rated Pool Pump 115-230V | WFE-2 | 011511
Pentair WhisperFlo .5HP Energy Efficient Full Rated Pool Pump 115/230V | WFE-2 | 011511
Replacement Parts

Pentair WhisperFlo 1.5HP Energy Efficient 2-Speed Pool Pump Up-Rated 230V | WFDS-26 | 012518
Pentair WhisperFlo 1.5HP Energy Efficient 2-Speed Up-Rated Pool Pump 230V | WFDS-26 | 012518
Replacement Parts

OVERVIEW
This motor is a direct replacement for the following Pentair Pump Models:
  • WhisperFlo 1/2HP standard efficiency full rated model WF-2 011578
  • WhisperFlo 3/4HP standard efficiency up-rated model WF-24 011771
  • SuperFlo 1/2HP standard efficiency up-rated model 340036
  • SuperFlo 3/4HP standard efficiency up-rated model 340037
You can also upgrade standard efficiency to an energy efficient model by simply using this motor part number 071313S instead which is a great investment and will pay for itself over time.

Features:
  • Switchless
  • No Base
  • Ball bearing
  • 60 Hz
  • 50 DEG C Ambient
  • Rotation (CCW Pump End)
  • Stainless Steel Shafts


Brand: Pentair
SPECIFICATIONS
Horse Power
.5 HP
Speed
1 Speed
Voltage
115 V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
WARRANTY
  • LIMITED WARRANTY: Pentair warrants its products to be free from defects in material and/or workmanship for a period of sixty (60) days (parts only) from the original date of purchase and/or installation. Customer agrees to prepay all shipping charges to Pentair.
  • EXTENDED WARRANTY: To receive a product extended warranty (longer than 60 days from the original date of installation), customer must:
  1. Register the product;
  2. Provide a copy of the sales receipt; and
  3. Provide a copy of the installation invoice, provided by the qualified installer, within 60 days of installation (if required). Certain products do not require qualified installation but still require product registration and copy of the sales receipt to receive the extended warranty.
  • TRADEGRADE WARRANTY: TradeGrade products must be purchased from a retail store (brick and mortar), pool builder or pool service company. If purchased online (via internet) the product will only receive a sixty (60) day limited warranty. View the list of TradeGrade products here.
  • ECOMMERCE (EC) WARRANTY: Products purchased from an Authorized Pentair Online Reseller receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty. To receive an eCommerce warranty, customer must:
  1. Register the product, and
  2. Provide a copy of the sales receipt

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 04/05/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
