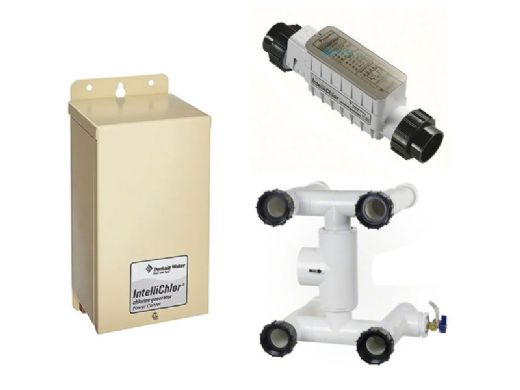

Pentair Commercial IntelliChlor COMSYS-2 Salt Chlorine Generator | 10,000 Gallons | 520970

Name: Pentair IntelliChlor Power Center Only for use with IC20, IC40, & IC60P Salt Cells | 520556
Brand: Pentair
SKU: 70248
Availability: InStock

$3,341.64

Pentair Commercial IntelliChlor COMSYS-2 Salt Chlorine Generator | 10,000 Gallons | 520970

Commercial IntelliChlor Salt Chlorine Generator

The Commercial IntelliChlor Salt Chlorine Generator aids in improved water quality, while allowing for less handling and storing of corrosive chemicals. Salt chlorination provides softer, clearer water and a more efficient environment for chlorine while using less chemicals to maintain balance.

Features:

Each single cell produces up to 2 lbs. of chlorine per day
Manifold systems included
Monitors salt level
Manifold systems included
Monitors salt level
Performance data log captured daily
Tracking of cell life
Low water temperature cut-off feature helps protect and prolong cell life
Easier control of TDS and salt levels
Simple connection to Pentair ORP controllers
Premounted multi-power center configuration
Self-cleaning
Listed to UL 1563/CSA C22.2 No. 218-1
Certified to NSF/ANSI 50

Why choose the commercial IntelliChlor generator?

Cell blades

Rated for 10,000 hours of operation, under normal operating conditions.

Built-in intelligence

Primary cell reads salt levels and communicates to all secondary cells.

Full diagnostic capabilities

Including cell-life tracking that communicates in real time Captures all performance data daily: production settings, hours of operation, chlorine output, cell-cleaning cycles, salt readings and water-temperature averages.

Easy-to-view display

Enables fast checking of salt levels, cell cleanliness, chlorine output and water flow.

Automatic shut-off feature

Helps protect the unit and prolong cell life under low water-temperature conditions.

On-time cycling

Helps prevent calcium and scale build-up to maximize cell life.

Single cell productivity

Designed to produce up to 2 lbs. of chlorine in a 24-hour period from a single cell.

Commercial coated cells

For maximum performance.

Prewired

All power centers are prewired for 220 VAC and conveniently mounted on backboards.

Manifold

Manifold CIC 2-lb. output cells in combinations that produce from 4 lbs. to16 lbs. of chlorine per day. Contact the factory for sizing of larger systems.

Works with ORP control system

Generates chlorine on demand.

Part Number	Description	Number of Primary (P) and secondary (S) IC60 Cells	Number of Primary Power Centers (520978)	Number of Secondary Power Centers (520556)	Chlorine per Day (lbs)†	Pool Volume (gal)†
520970	COMSYS-2	1P	1	0	2	10,000
520971	COMSYS-4	1P, 1S	1	1	4	20,000
520972	COMSYS-6	1P, 2S	1	2	6	30,000
520973	COMSYS-8	1P, 3S	1	3	8	40,000
520974	COMSYS-10	1P, 4S	1	4	10	50,000
520975	COMSYS-12	1P, 5S	1	5	12	60,000
520976	COMSYS-14	1P, 6S	1	6	14	70,000
520977	COMSYS-16	1P, 7S	1	7	16	80,000

*Compatible with all pH/ORP chemical control systems from Pentair Commercial Aquatics.

† Commercial pools typically require 2 lbs. lbs of chlorine production per every 10,000 gallons. Please consult your local codes for chlorine production requirements.

Brand: Pentair

REVIEWS

Q&A

Pentair Commercial IntelliChlor COMSYS-2 Salt Chlorine Generator | 10,000 Gallons | 520970

$3,341.64

Pool Size:

10,000 Gallons

Quantity

Platinum Preferred Manufacturer

Proposition 65 Warning

Purchase options

Related items

Pentair Commercial IntelliChlor CIC60S Salt Chlorine Generator Secondary Replacement Cell | 60,000 Gallons | 521005
Pentair Commercial IntelliChlor CIC60P Salt Chlorine Generator Primary Replacement Cell | 60,000 Gallons | 521151
Pentair Commercial IntelliChlor IC60P Salt Generator Primary Power Center | 520978

$783.20
Pentair IntelliChlor Power Center Only for use with IC20, IC40, & IC60P Salt Cells | 520556

Product description

Commercial IntelliChlor Salt Chlorine Generator

Features:

Each single cell produces up to 2 lbs. of chlorine per day
Manifold systems included
Monitors salt level
Manifold systems included
Monitors salt level
Performance data log captured daily
Tracking of cell life
Low water temperature cut-off feature helps protect and prolong cell life
Easier control of TDS and salt levels
Simple connection to Pentair ORP controllers
Premounted multi-power center configuration
Self-cleaning
Listed to UL 1563/CSA C22.2 No. 218-1
Certified to NSF/ANSI 50

Why choose the commercial IntelliChlor generator?

Cell blades

Rated for 10,000 hours of operation, under normal operating conditions.

Built-in intelligence

Primary cell reads salt levels and communicates to all secondary cells.

Full diagnostic capabilities

Easy-to-view display

Enables fast checking of salt levels, cell cleanliness, chlorine output and water flow.

Automatic shut-off feature

Helps protect the unit and prolong cell life under low water-temperature conditions.

On-time cycling

Helps prevent calcium and scale build-up to maximize cell life.

Single cell productivity

Designed to produce up to 2 lbs. of chlorine in a 24-hour period from a single cell.

Commercial coated cells

For maximum performance.

Prewired

All power centers are prewired for 220 VAC and conveniently mounted on backboards.

Manifold

Manifold CIC 2-lb. output cells in combinations that produce from 4 lbs. to16 lbs. of chlorine per day. Contact the factory for sizing of larger systems.

Works with ORP control system

Generates chlorine on demand.

Part Number	Description	Number of Primary (P) and secondary (S) IC60 Cells	Number of Primary Power Centers (520978)	Number of Secondary Power Centers (520556)	Chlorine per Day (lbs)†	Pool Volume (gal)†
520970	COMSYS-2	1P	1	0	2	10,000
520971	COMSYS-4	1P, 1S	1	1	4	20,000
520972	COMSYS-6	1P, 2S	1	2	6	30,000
520973	COMSYS-8	1P, 3S	1	3	8	40,000
520974	COMSYS-10	1P, 4S	1	4	10	50,000
520975	COMSYS-12	1P, 5S	1	5	12	60,000
520976	COMSYS-14	1P, 6S	1	6	14	70,000
520977	COMSYS-16	1P, 7S	1	7	16	80,000

*Compatible with all pH/ORP chemical control systems from Pentair Commercial Aquatics.

† Commercial pools typically require 2 lbs. lbs of chlorine production per every 10,000 gallons. Please consult your local codes for chlorine production requirements.

Features and details

Specifications

Resources

Warranty

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.
