Home Pentair IntelliFlo i2 Variable Speed Pool Pump | Time Clock Included | 3.2kw 208-230V | EC-011060
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

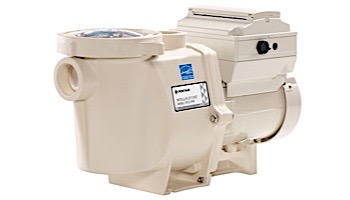

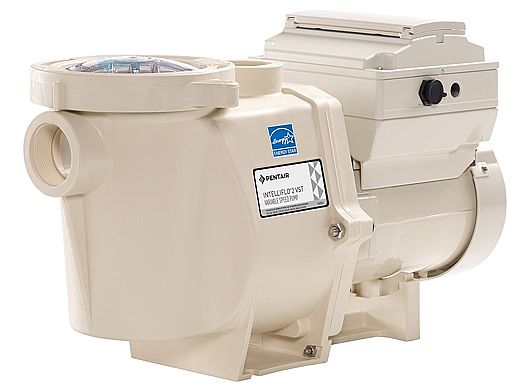

Pentair IntelliFlo i2 Variable Speed Pool Pump | Time Clock Included | 3.2kw 208-230V | EC-011060

Pentair IntelliFlo i2 Variable Speed Pool Pump | Time Clock Included | 3.2kw 208-230V | EC-011060 Pentair IntelliFlo i2 Variable Speed Pool Pump | Time Clock Included | 3.2kw 208-230V | EC-011060 Pentair IntelliFlo i2 Variable Speed Pool Pump | Time Clock Included | 3.2kw 208-230V | EC-011060 Pentair IntelliFlo i2 Variable Speed Pool Pump | Time Clock Included | 3.2kw 208-230V | EC-011060

Shipping Free Shipping *
Energy EfficientEnergy Efficient
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Advanced engineering delivers whisper-quiet operation with a 2HP impeller
  • Designed to handle your Pool's automation needs
  • Eight programmable speed settings and built-in timer
  • Interfaces perfectly with pentair automation systems
  • Energy savings of up to 90%* versus conventional pumps
  • Online part number EC-011060 is the direct replacement for part number 011060
More Pools. More Savings. Worldwide
The IntelliFlo i2 pump provides all the great features that have made our flagship IntelliFlo pumps the best-selling industry standard. But, the IntelliFlo i2 pump is hydraulically engineered to provide maximum performance on a 15-amp breaker. It has a maximum rating of 11.8 amps, which makes retrofits easier in applications that are limited by existing wire gauge size. Energy efficient, automation ready and technologically advanced—now that's a smart choice.

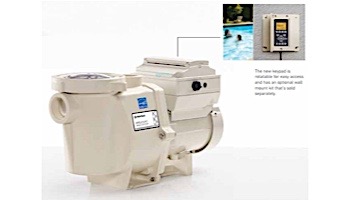

  • New, rotatable keypad for easy programming and viewing. Keypad has the ability to be wall mounted with optional wall mount kit. (Sold separately)
  • Intuitive interface/HMI simplifies programming and use
  • Top-mounted field wiring compartment for easy access and installation
  • Eight (8) programmable speed settings and built-in timer
  • Totally-enclosed fan-cooled design (TEFC) for quiet operation
  • Built-in diagnostics protect the pump for longer service life
  • Interfaces perfectly with Pentair automation systems
  • 2in diameter plumbing
  • Input: 208-230 VAC, 50/60 Hz, 3200 Watts Maximum, 1 phase
Intelliflo Pump Innovations Add Up To Greater Efficiency, Energy Savings And Universal Appeal
IntelliFlo variable speed pumps started an energy-savings revolution. No wonder they’re the world’s best-selling variable speed pumps. And, the IntelliFlo i1 and i2 pumps just got better. With energy savings of up to 90%* versus conventional pumps, a new easy-to-read rotatable keypad and advanced programming capabilities, pool pros and pool owners love them even more. Plus, they have a record of proven field reliability that no competitor can match.
*Savings based on variable speed pump compared to a single-speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000-gallon pool. Actual savings may vary based on local utility rates, pool size, pump run time, pump horsepower, pump rpm, plumbing size and length, pump model, service factor and other hydraulic factors.
Designed To Handle Your Pool’s Automation Needs And Still Deliver Maximum Energy Efficiency
To meet your pool’s needs today—and be ready for upgrades tomorrow—there’s no better choice than the IntelliFlo i1 or i2 Variable Speed Pump. Designed to pair with Pentair EasyTouch® or IntelliTouch® Automation Systems, these advanced pumps can be programmed to deliver the right flow required for filtration, water features, spas and other equipment. With IntelliFlo i1 and i2, you can add equipment and features, or change them, without reducing pump performance and while still providing maximum energy efficiency.
Advanced Engineering Delivers Whisper-Quiet Operation
Quiet means you enjoy a more relaxing, satisfying pool and spa experience. That’s why we worked so hard to make the IntelliFlo® i1 and i2 Pumps the quietest pumps on the planet. Each model has a totally enclosed, fan-cooled (TEFC) design and a permanent magnet motor that virtually eliminates unpleasant, high-pitched noise. At low speeds, you might not even know it’s operating.

Brand: Pentair
Variable Speed
Pipe Size
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 6 questions Browse 6 questions and 9 answers
Is the Inteliflo i2 a 3 hp motor?
A shopper on Oct 30, 2016
BEST ANSWER: No, it is 2HP
can one control a pool sweep motor and the filter with just an intelliflo pump?
A shopper on Mar 28, 2019
BEST ANSWER: Pool Sweeps have different functionalities One needs a separate booster pump to operate correctly and some Sweeps need only the pool pump to operate it.
What is the difference between the i1 and i2 models? Trying to determine if the cost difference is worth it.
Scott L on Jan 11, 2018
BEST ANSWER: The i1 is a maximum of 1 hp and the i2 is up to 2 hp
Can I use a 2 hp in place of a 1.5 hp?
Ashton B on Jun 8, 2020
BEST ANSWER: I am not a pool professional - just a homeowner with a 15,000 gallon in-ground pool. I just had this pump installed to replace a 1 HP single speed. I have set the maximum RPM down to match the RPM of the 1 HP original pump since my pool has 1 1/2" plumbing on the output side of the pump. I would not turn loose the full power of this pump into plumbing that is not rated for it. I have been running this pump on a schedule of 1000 rpm for 14 hours/day and 1500 rpm for 10 hours a day during the Texas heat and it is doing a beautiful job at a much lower cost for electricity than I was spending when I was running my 1 HP pump 10 hr/day. I have the cleaning cycle set for 2400 RPM which I use as needed for maintenance.
does this pump come with the data cable?
A shopper on Mar 18, 2021
BEST ANSWER: Mine did!!!
Do you have this pump in stock? Pentair iintelliflo
Don F on Jan 20, 2022
There are no reviews for this item. Write Review
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Owners Manual

Register your Pentair product online at www.pentair.com.

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.
While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.
Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**
*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.
**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.
TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.
Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.
Visit www.pentair.com to submit your product warranty registration.
This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.

 Adobe Acrobat PDF Warranty Information
