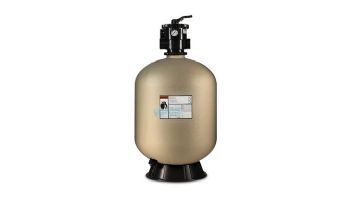

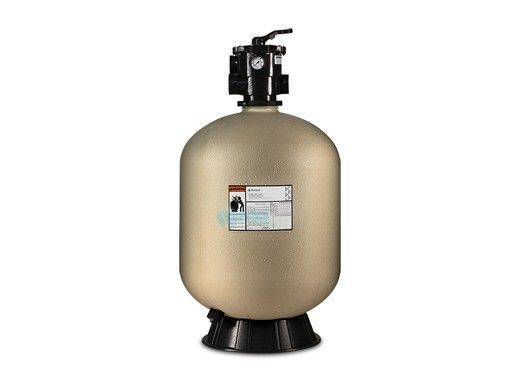

Pentair Sand Dollar SD60 22" Top Mount Sand Filter with Clamp Style 1.5" Multiport Backwash Valve | 2.3 Sq. Ft. | 145322

Name: Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
Brand: Pentair
SKU: 182753
Availability: InStock

Pentair Sand Dollar SD60 22" Top Mount Sand Filter with Clamp Style 1.5" Multiport Backwash Valve | 2.3 Sq. Ft. | 145322

So Clean, So Clear, So Easy

The Sand Dollar filter is the perfect high-performance sand filter. It's incredibly simple to operate and maintain, and it's built with long-term reliability in mind. Plus, its highly efficient design provides all the clean, crystal-clear water your pool requires year after year.

Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the naked eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to "backwash" the filter by simply reversing the water flow and "knocking out" the dirt.

All Pentair sand filters feature a special internal design that maintains the sand bed level and ensures even water flow. That results in the most efficient filtration possible.

One-piece thermoplastic tank for exceptional strength, corrosion resistance and long life.
Combination water and sand drain makes servicing and winterizing fast and easy.
Special internal design maintains sand bed level for consistent performance and extended time between cleaning cycles.
Attractive almond color blends with any outdoor décor

For Maximum Water Clarity.

Pool filter operation doesn't come any easier. The multi-port valve of the Sand Dollar filter puts all filter functions right at your fingertips - just rotate the handle to the desired position, and the Sand Dollar filter does the rest for sure and simple operation.

Top mount, six-function, 11 1-1/2" multi-port valve features a pressure gauge and manual air relief for optimum filtration efficiency.
Internal design ensures that water is exposed to maximum sand surface area for superior filtration performance and efficient backwashing.
Large-capacity SD 80 model is available with 11-1/2" or 2" valve.

Specifications:

Item Number	Model Number	Filter Area Sq. Ft.	Vertical Clearance*	Filter Diameter	Required Sand+ (lbs.)	Flow Rate GPM**	Filter Turnover Capacity-Res. (Gallons)
Item Number	Model Number	Filter Area Sq. Ft.	Vertical Clearance*	Filter Diameter	Required Sand+ (lbs.)	Flow Rate GPM**	8 hrs.	10 hrs.	12 hrs.
145315	SD 35	1.40	36.75"	16.50"	100	35	16,800	21,000	25,200
145320	SD 40	1.80	46.00"	19.50"	150	40	19,200	24,000	28,800
145322	SD 60	2.30	50.50"	22.50"	250	60	28,800	36,000	43,200
145367	SD 70	3.15	73.00"	24.00"	300	70	33,600	42,000	50,400
145367	SD 80***	3.50	74.00"	26.00"	350	75	36,600	45,000	54,000

+Use Standard #20 silica sand, *Required clearance to remove the value, **Maximum flow rate, ***SD 80 available with 1-1/2" or 2" value

Brand: Pentair

REVIEWS

Q&A

PARTS

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

No questions have been asked about this item. Be the first!

Pentair Sand Dollar SD60 22" Top Mount Sand Filter with Clamp Style 1.5" Multiport Backwash Valve | 2.3 Sq. Ft. | 145322

THIS ITEM IS NO LONGER AVAILABLE ONLINE

There is a new online part number for this item, please see below for direct replacement.

Parts Available

Platinum Preferred Manufacturer

Proposition 65 Warning

Purchase options

Related items

Suggested alternative(s)

Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

Pentair Sand Dollar SD60 22" Top Mount Sand Filter with Clamp Style 1.5" Multiport Backwash Valve | 2.3 Sq. Ft. | EC-145322
$589.00

Product description

So Clean, So Clear, So Easy

All Pentair sand filters feature a special internal design that maintains the sand bed level and ensures even water flow. That results in the most efficient filtration possible.

One-piece thermoplastic tank for exceptional strength, corrosion resistance and long life.
Combination water and sand drain makes servicing and winterizing fast and easy.
Special internal design maintains sand bed level for consistent performance and extended time between cleaning cycles.
Attractive almond color blends with any outdoor décor

For Maximum Water Clarity.

Top mount, six-function, 11 1-1/2" multi-port valve features a pressure gauge and manual air relief for optimum filtration efficiency.
Internal design ensures that water is exposed to maximum sand surface area for superior filtration performance and efficient backwashing.
Large-capacity SD 80 model is available with 11-1/2" or 2" valve.

Specifications:

Item Number	Model Number	Filter Area Sq. Ft.	Vertical Clearance*	Filter Diameter	Required Sand+ (lbs.)	Flow Rate GPM**	Filter Turnover Capacity-Res. (Gallons)
Item Number	Model Number	Filter Area Sq. Ft.	Vertical Clearance*	Filter Diameter	Required Sand+ (lbs.)	Flow Rate GPM**	8 hrs.	10 hrs.	12 hrs.
145315	SD 35	1.40	36.75"	16.50"	100	35	16,800	21,000	25,200
145320	SD 40	1.80	46.00"	19.50"	150	40	19,200	24,000	28,800
145322	SD 60	2.30	50.50"	22.50"	250	60	28,800	36,000	43,200
145367	SD 70	3.15	73.00"	24.00"	300	70	33,600	42,000	50,400
145367	SD 80***	3.50	74.00"	26.00"	350	75	36,600	45,000	54,000

+Use Standard #20 silica sand, *Required clearance to remove the value, **Maximum flow rate, ***SD 80 available with 1-1/2" or 2" value

Features and details

Specifications

Resources

Warranty

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.
