PZ1 Series - for Portable Spas
For Portable Spas and Whirlpool Baths, the PZ1 Ozone Generator Features Our Patented Corona Hybrid Arc Tube, a Solid State Ballast, and a Standard Installation Kit.

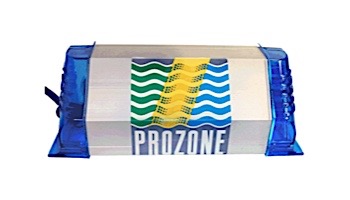

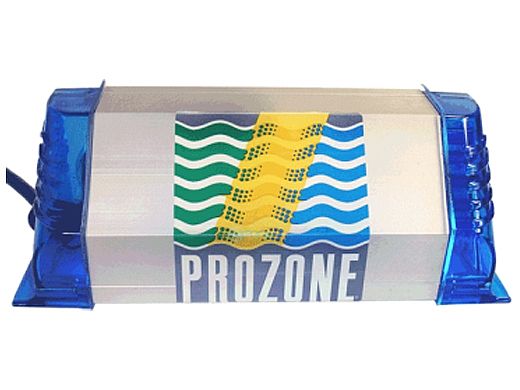

The PZ1 ozone generator for portable spas up to 800 gallons. It features our patented hybrid arc tube and solid state power supply mounted in a rugged aluminum case. This system is compatible with all major spa brands and comes with a 2 year warranty. Can be supplied for ozone ready spas or with Prozone’s patented bypass installation kit .
Features
- Prozone Patented Corona Hybrid Arc Tube harnesses the high ozone concentrations of Corona Discharge generators while maintaining the simplicity and reliability of VUV technology.
- Optional Prozone Patented Dynamic Venturi Injector Bypass System allows maximum ozone/water mixing for superior water quality. The bypass also means a quick retrofit installation or replacement for all existing ozone generators.
- Rugged, functional housing: heavy extruded aluminum case for durability; translucent end caps, glow when system is on.
- Low cost, low maintenance operation
- Warranty – 2 years
- Compatible with all major spa brands
- Easily retrofittable to existing spas
- includes Check valve, mounting screws
Specifications
- Prozone Patented Corona Hybrid Arc Tube
- Voltage: Prozone Solid State Ballast
- 110 VAC 60 Hz or 230/240 VAC 50/60 Hz
- Connection: All common configurations available
- Ozone Purity: 100%, no nitrogen byproducts
- Arc Life (nominal): 20,000 hours
- Operating Temperature: +25° F to +120° F
- Weight: 3 lbs.
- Dimensions: 8″W x 3½”D x 3″H
- Case Construction: Extruded Anodized Aluminum
Standard Kit Includes: Check Valve and Mounting Screws Included
Optional Kit Includes: Prozone Patented Dynamic Venturi Injector (below), Patented Bypass Installation Kit
