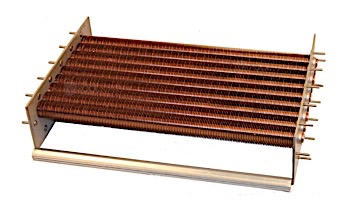

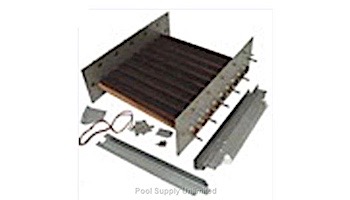

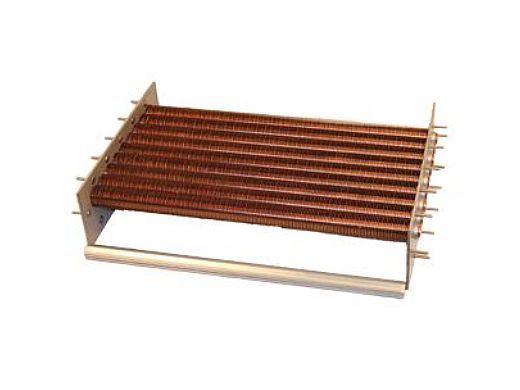

Raypak Heat Exchanger Tube Bundle Copper 406 407 for Heaters with Polymer Headers | 010062F

Raypak Heat Exchanger Tube Bundle Copper 406 407 for Heaters with Polymer Headers | 010062F Raypak Heat Exchanger Tube Bundle Copper 406 407 for Heaters with Polymer Headers | 010062F Raypak Heat Exchanger Tube Bundle Copper 406 407 for Heaters with Polymer Headers | 010062F
$891.73

Quantity:
Platinum Preferred Manufacturer
  • This tube bundle to be used with ?residential models 406A & 407A that have polymer (plastic) headers
  • To upgrade to a more durable cupro nickel tube bundle use part number 010367F. This is interchangeable with part number 010062F.
  • For commercial ASME tube bundle (metal headers) use part number 010058F for copper or 010371F for cupro nickel. This is NOT interchangeable with part number 010062F.

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Raypak Digital Propane Gas Pool Heater 399k BTU | Electronic Ignition | P-R406A-EP-C 009227 P-M406A-EP-C 009977
Digital Pool Heater 399k BTU - Propane Gas - Electronic Ignition - 009227 009977
Replacement Parts

Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993
Digital Low NOx Heater
399k BTU | Natural Gas | 009243 009993
Replacement Parts

Raypak Digital ASME Natural Gas Commercial Swimming Pool Heater | 399k BTU | Altitude 0-1999 Ft | C-R406A-EN-C 009271 | B-R406A-EN-C #50 017374
Digital ASME Natural Gas Commercial Swimming Pool Heater | 399k BTU | | B-R406A-EN-C #50 017374
Replacement Parts

OVERVIEW
In Stock - Ships within one business day
Cross reference information:
  • This tube bundle to be used with residential models 406A & 407A that have polymer (plastic) headers
  • To upgrade to a more durable cupro nickel tube bundle use part number 010367F.  This is interchangeable with part number 010062F.
  • For commercial ASME tube bundle (metal headers) use part number 010058F.  This is NOT interchangeable with part number 010062F.
  • It is very important to distinguish between residential & commercial tube bundles because they are not interchangeable.  Here is a simple guideline to make sure the tube bundle you order will fit your heater:
    • Residential heater model numbers begin with one of the following: P-R (Raypak) or P-M (Rheem) or P-D (Ruud)
    • Commercial heater models begin with C-R (Raypak)
    • Full model number can be found by opening the front cabinet door and looking for the identification plate which will contain the model number and part number.  The model number will tell us everything we need to know about the heater other than the age which is contained in serial number (first two digits are the year, next two digits are the month it was manufactured)





    Brand: Raypak
    Q & A
    Start typing your question and we'll check if it was already asked and answered. Learn More
    No questions have been asked about this item. Be the first!
    REVIEWS
    5.0 / 5.0
    1 Review
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Star
    1
    0
    0
    0
    0
    Rated 5 out of 5
    Easy replacement for my Raypak 406A
    Replacement was relatively easy (lots of miscellaneous screws to remove) and part worked as expected. Previous unit lasted !9 years. I noticed a leak from unit after the record freeze in the midwest. Leak was small during normal run, but if I turned on heater, leak would increase (assuming due to thermal expansion of copper) so much during heating that it would extinguish pilot.
