Home Raypak 206A Tube Bundle Cupro Nickel ASME | 010368F
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. ... We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

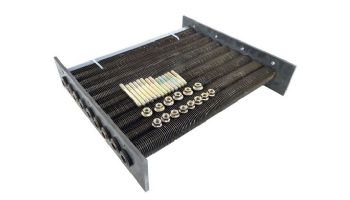

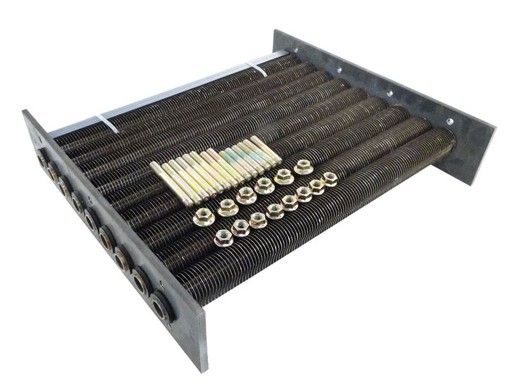

Raypak 206A Tube Bundle Cupro Nickel ASME | 010368F

Raypak 206A Tube Bundle Cupro Nickel ASME | 010368F
Cross reference information:
  • This tube bundle to be used with commercial ASME models 206A & 207A that have metal headers
  • For a less expensive copper tube bundle use part number 010055F. This is interchangeable with part number 010368F
  • For residential tube bundle (plastic capron headers) use part number 010059F or 010364F. This is NOT interchangeable with part number 010368F.
  • It is very important to distinguish between residential & commercial tube bundles because they are not interchangeable. Here is a simple guideline to make sure the tube bundle you order will fit your heater:
    • Residential heater model numbers begin with one of the following: P-R (Raypak) or P-M (Rheem) or P-D (Ruud)
    • Commercial heater models begin with C-R (Raypak)
    • Full model number can be found by opening the front cabinet door and looking for the identification plate which will contain the model number and part number. The model number will tell us everything we need to know about the heater other than the age which is contained in serial number (first two digits are the year, next two digits are the month it was manufactured)

Brand: Raypak

Raypak 206A Tube Bundle Cupro Nickel ASME | 010368F
