This part fits the following products

Product description

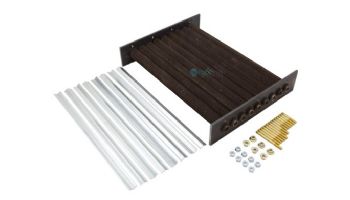

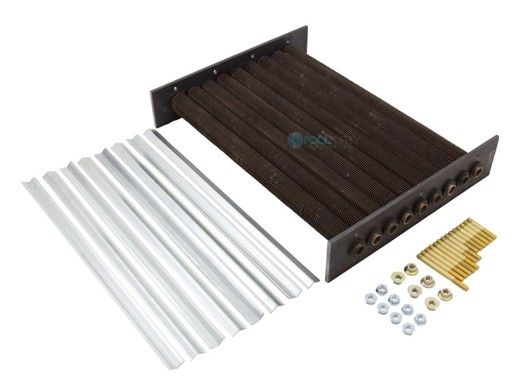

• This tube bundle to be used with commercial ASME models 336A & 337A that have metal headers
• For a less expensive copper tube bundle use part number 010057F. This is interchangeable with part number 010370F
• For residential tube bundle (plastic capron headers) use part number 010061F or 010366F. This is NOT interchangeable with part number 010370F.
• It is very important to distinguish between residential & commercial tube bundles because they are not interchangeable. Here is a simple guideline to make sure the tube bundle you order will fit your heater:
• Residential heater model numbers begin with one of the following: P-R (Raypak) or P-M (Rheem) or P-D (Ruud)
• Commercial heater models begin with C-R (Raypak)
• Full model number can be found by opening the front cabinet door and looking for the identification plate which will contain the model number and part number. The model number will tell us everything we need to know about the heater other than the age which is contained in serial number (first two digits are the year, next two digits are the month it was manufactured)

Features and details

• This tube bundle to be used with commercial ASME models 336A & 337A that have metal headers

• For a less expensive copper tube bundle use part number 010057F. This is interchangeable with part number 010370F.

• For residential tube bundle (plastic capron headers) use part number 010061F or 010366F. This is NOT interchangeable with part number 010370F.


Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below). * THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

Warranty Information
