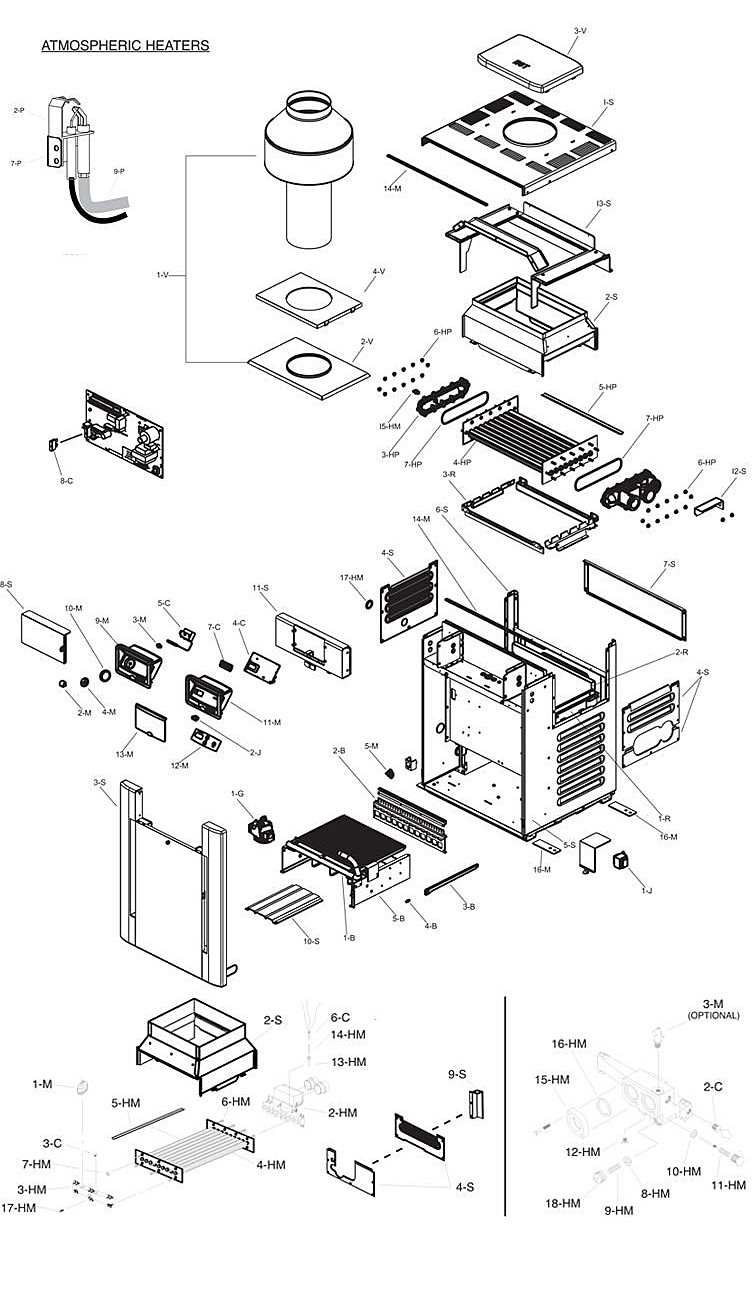

Raypak Digital ASME Propane Gas Commercial Swimming Pool Heater | 333k BTU Cupro Nickel Heat Exchanger | Altitude 2000-2999 Ft | C-R336A-EP-X 010216 | B-R336A-EP-X #58 017417 Parts

Back to Product
Raypak Digital ASME Propane Gas Commercial Swimming Pool Heater | 333k BTU Cupro Nickel Heat Exchanger | Altitude 2000-2999 Ft | C-R336A-EP-X 010216 | B-R336A-EP-X #58 017417 Parts Schematic
1-B
Raypak Burner Tray | 336A IID Propane Valve | 010413F
Raypak Burner Tray | 336A IID Propane Valve | 010413F
Quantity:
$1,189.72

2-B
Raypak Burner Spacer Hold Down Kit 336A | 010417F
Raypak Burner Spacer Hold Down Kit 336A | 010417F
Quantity:
$146.83

3-B
Raypak Stainless Steel Burner | 301210
Raypak Stainless Steel Burner | 301210
A Replacement is available for this item.
This item has been discontinued.

4-B
Raypak Burner Orifice #58 | Propane Gas | 350087F
Raypak Burner Orifice #58 | Propane Gas | 350087F
Quantity:
$7.41

5-B
Raypak 336A Burner Tray without Manifold & Burners | 010423F
Raypak 336A Burner Tray without Manifold & Burners | 010423F
Quantity:
$336.02

1-C
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Quantity:
$41.19

2-C
Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B
Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B
Quantity:
$40.94

3-C
Raypak Auto Reset High Limit Switch 140 Degree - Black Epoxy | 600893B
Raypak Auto Reset High Limit Switch 140 Degree - Black Epoxy | 600893B
Quantity:
$41.77

4-C
Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F
Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F
A Replacement is available for this item.
This item has been discontinued.

6-C
Raypak 3-Wire IID Temperature Sensor | 009577F
Raypak 3-Wire IID Temperature Sensor | 009577F
Quantity:
$63.35

7-C
Raypak LCD Display Module From 5-11 | 013640F
Raypak LCD Display Module From 5-11 | 013640F
A Replacement is available for this item.
This item has been discontinued.

8-C
Raypak 5 AMP Fuse | 013733F
Raypak 5 AMP Fuse | 013733F
Quantity:
$26.63

9-C
Raypak ASME Thermostat Manual Reset 160 Deg Surface Mount | 016213F
Raypak ASME Thermostat Manual Reset 160 Deg Surface Mount | 016213F
Quantity:
$45.71

1-G
Raypak Electronic Combination Gas Valve | Propane Gas - IID Units | 004306F
Raypak Electronic Combination Gas Valve | Propane Gas - IID Units | 004306F
Quantity:
$263.31

1-HP
Raypak Cupro Nickel Heat Exchanger with Polymer Heads | Prior to 7-13 | 010358F
Raypak Cupro Nickel Heat Exchanger with Polymer Heads | Prior to 7-13 | 010358F
Quantity:
$2,208.15

1-HP
Raypak Cupro Nickel Heat Exchanger with Polymer Heads | From 7-2013 | 014928F
Raypak Cupro Nickel Heat Exchanger with Polymer Heads | From 7-2013 | 014928F
Quantity:
$2,252.57

2-HP
Raypak In/Out Capron Header Complete Assembly with Gasket | 006827F
Raypak In/Out Capron Header Complete Assembly with Gasket | 006827F
Quantity:
$509.56

2-HP
Raypak Polymer Inlet/Outlet Header | 206A 406A | 014648F
Raypak Polymer Inlet/Outlet Header | 206A 406A | 014648F
Quantity:
$394.77

3-HP
Raypak Polymer Return Header | 206A-406A | 015095F
Raypak Polymer Return Header | 206A-406A | 015095F
Quantity:
$123.57

4-HP
Raypak Cupro Nickel 336A Tube Bundle | From 7-2013 | 014932F
Raypak Cupro Nickel 336A Tube Bundle | From 7-2013 | 014932F
Quantity:
$1,312.13

4-HP
Raypak Cupro Nickel 336A Tube Bundle | Prior to 7-2013 | 010366F
Raypak Cupro Nickel 336A Tube Bundle | Prior to 7-2013 | 010366F
Quantity:
$1,361.97

5-HP
Raypak 336A/337A Cupro Nickel Baffle Kit | From 6-2013 | 014936F
Raypak 336A/337A Cupro Nickel Baffle Kit | From 6-2013 | 014936F
Quantity:
$88.96

5-HP
Raypak 336A/337A Baffle Kit | Prior to 6-2013 | 010040F
Raypak 336A/337A Baffle Kit | Prior to 6-2013 | 010040F
Quantity:
$140.40

6-HP
Raypak Flange Nut Kit 1/4"-20 | 008259F
Raypak Flange Nut Kit 1/4"-20 | 008259F
Quantity:
$29.44

7-HP
Raypak O-Ring Gasket Set | Set of Two | 006713F
Raypak O-Ring Gasket Set | Set of Two | 006713F
Quantity:
$30.38

8-HP
Raypak Sensor Adaptor Digital Electronic | 006714F
Raypak Sensor Adaptor Digital Electronic | 006714F
Quantity:
$35.59

9-HP
Raypak Capron Bypass Kit | 006715F
Raypak Capron Bypass Kit | 006715F
Quantity:
$62.78

10-HP
Raypak Bypass Valve for Capron Header Heaters | 006716F
Raypak Bypass Valve for Capron Header Heaters | 006716F
Quantity:
$38.91

11-HP
Raypak Capron Bypass Shaft/Dam | 006717F
Raypak Capron Bypass Shaft/Dam | 006717F
Quantity:
$48.38

12-HP
Raypak Capron Bypass Spring | 006718F
Raypak Capron Bypass Spring | 006718F
Quantity:
$34.21

13-HP
Raypak Unitherm Governor | Capron Header Models | 006719F
Raypak Unitherm Governor | Capron Header Models | 006719F
Quantity:
$64.27

14-HP
Raypak Unitherm Governor Plug | 006720F
Raypak Unitherm Governor Plug | 006720F
Quantity:
$43.16

15-HP
Raypak Capron Drain Plug | R185A - R405A | 006721F
Raypak Capron Drain Plug | R185A - R405A | 006721F
Quantity:
$23.68

17-HP
Raypak 2" CPVC Connector & Nut Kit | 006723F
Raypak  2" CPVC Connector & Nut Kit | 006723F
Quantity:
$62.35

18-HP
Raypak 2" O-Ring Kit | 006724F
Raypak 2" O-Ring Kit | 006724F
Quantity:
$12.83

19-HP
Raypak Header Baffle with Header Dam Kit | 006826F
Raypak Header Baffle with Header Dam Kit | 006826F
Quantity:
$57.28

1-HM
Raypak Cupro Nickel Heat Exchanger Assembly 336A/337A ASME CI | 010362F
Raypak Cupro Nickel Heat Exchanger Assembly 336A/337A ASME CI | 010362F
Quantity:
$2,932.81

2-HM
Raypak Complete Cast Iron Inlet/Outlet Header ASME | 006730F
Raypak Complete Cast Iron Inlet/Outlet Header ASME | 006730F
Quantity:
$412.44

2-HM
Raypak ASME CI Inlet/Outlet Header | 012319F
Raypak ASME CI Inlet/Outlet Header | 012319F
Quantity:
$300.45

3-HM
Raypak Cast Iron Return Header Assembly ASME | 006731F
Raypak Cast Iron Return Header Assembly ASME | 006731F
Quantity:
$151.72

4-HM
Raypak Tube Bundle 336A/337A Cupro Nickel ASME | 010370F
Raypak Tube Bundle 336A/337A Cupro Nickel ASME | 010370F
Quantity:
$1,411.96

5-HM
Raypak 336A/337A Baffle Kit | Prior to 6-2013 | 010040F
Raypak 336A/337A Baffle Kit | Prior to 6-2013 | 010040F
Quantity:
$140.40

6-HM
Raypak Stud Bolt Kit | 007870F
Raypak Stud Bolt Kit | 007870F
Quantity:
$75.67

7-HM
Raypak Header Gaskets | 9-Pack | 800014B
Raypak Header Gaskets | 9-Pack | 800014B
Quantity:
$23.72

8-HM
Raypak Unitherm Governor Kit | 062234B
Raypak Unitherm Governor Kit | 062234B
Quantity:
$61.32

9-HM
Raypak Unitherm Governor Retainer Spring | 013792F
Raypak Unitherm Governor Retainer Spring | 013792F
Quantity:
$31.91

10-HM
Raypak Bypass Valve Assembly | 016194F
Raypak Bypass Valve Assembly | 016194F
Quantity:
$52.29

11-HM
Raypak Bypass Spring for Units with Brass Bypass Valve 267A-407A Units Prior To 3-17 | 013794F
Raypak Bypass Spring for Units with Brass Bypass Valve 267A-407A Units Prior To 3-17 | 013794F
Quantity:
$73.32

11-HM
Raypak Bypass Spring for Units with Plastic Bypass Valve 267A-407A Units From 3-17 | 016196F
Raypak Bypass Spring for Units with Plastic Bypass Valve 267A-407A Units From 3-17 | 016196F
Quantity:
$59.98

12-HM
Raypak Drain Valve | 013793F
Raypak Drain Valve | 013793F
Quantity:
$27.50

13-HM
Raypak Sensor Well | 003765F
Raypak Sensor Well | 003765F
Quantity:
$74.13

14-HM
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$18.01

15-HM
Raypak Inlet & Outlet Flange Kit | 003766F
Raypak Inlet & Outlet Flange Kit | 003766F
A Replacement is available for this item.
This item has been discontinued.

16-HM
Raypak Flange Gasket Set 1.5" Connections | 2-Pack | 062236B
Raypak Flange Gasket Set 1.5" Connections | 2-Pack | 062236B
Quantity:
$43.22

16-HM
Raypak Flange Gasket Set 2" Connections | 2-Pack | 800080B
Raypak Flange Gasket Set 2" Connections | 2-Pack | 800080B
Quantity:
$20.98

17-HM
Raypak Rear Drain Plug and Cover | 005264F
Raypak Rear Drain Plug and Cover | 005264F
Quantity:
$35.59

18-HM
Raypak Unitherm Governor Plug | Brass | 013738F
Raypak Unitherm Governor Plug | Brass | 013738F
Quantity:
$75.68

19-HM
Raypak 2" CPVC Adapter | 005393F
Raypak 2" CPVC Adapter | 005393F
Quantity:
$76.34

1-J
Raypak Transformer 120V/240V/24V | 006736F
Raypak Transformer 120V/240V/24V | 006736F
Quantity:
$79.59

2-J
Raypak Rocker Switch | 009493F
Raypak Rocker Switch | 009493F
Quantity:
$34.23

1-M
Raypak Pressure Switch 1.75 PSI | 006737F
Raypak Pressure Switch 1.75 PSI | 006737F
Quantity:
$53.07

1-M
Raypak Pressure Switch 11 PSI | 009133F
Raypak Pressure Switch 11 PSI | 009133F
Quantity:
$50.25

2-M
Raypak Thermostat Knob | 009499F
Raypak Thermostat Knob | 009499F
Quantity:
$78.39

4-M
Raypak Knob Stop | 006886F
Raypak Knob Stop | 006886F
Quantity:
$37.96

5-M
Raypak Thermal Fuse | 005899F
Raypak Thermal Fuse | 005899F
Quantity:
$44.80

6-M
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Quantity:
$88.28

7-M
Raypak Deliming Kit | 052871F
Raypak Deliming Kit | 052871F
Quantity:
$262.73

8-M
Raypak Wire Harness | IID Units | 009490F
Raypak Wire Harness | IID Units | 009490F
Quantity:
$138.46

11-M
Raypak Control Bezel with Switch Decal | IID Units From 5-11 | 013491F
Raypak Control Bezel with Switch Decal | IID Units From 5-11 | 013491F
Quantity:
$153.28

11-M
Raypak Control Bezel with Switch Decal | IID Units Prior to 5-11 | 009491F
Raypak Control Bezel with Switch Decal | IID Units Prior to 5-11 | 009491F
Quantity:
$181.63

12-M
Raypak Switch/Decal-Membrane Units From 5-11 | 013492F
Raypak Switch/Decal-Membrane Units From 5-11 | 013492F
Quantity:
$66.04

12-M
Raypak Switch/Decal-Membrane Units Prior to 5-11 | 009492F
Raypak Switch/Decal-Membrane Units Prior to 5-11 | 009492F
Quantity:
$88.71

13-M
Raypak Control Bezel Cover | 009487F
Raypak Control Bezel Cover | 009487F
Quantity:
$41.18

14-M
Raypak Gasket Insulation (Swaybrace & Jacket Top) | 010350F
Raypak Gasket Insulation (Swaybrace & Jacket Top) | 010350F
Quantity:
$75.68

15-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
This item has been discontinued.

15-M
Raypak Touch-Up Paint | Cool Dark Gray | 750256
Raypak Touch-Up Paint | Cool Dark Gray | 750256
This item has been discontinued.

15-M
Raypak Touch-Up Paint | Warm Dark Gray | 750258
Raypak Touch-Up Paint | Warm Dark Gray | 750258
This item has been discontinued.

16-M
Raypak Tie Down Bracket | 011636
Raypak Tie Down Bracket | 011636
Quantity:
$45.62

17-M
Raypak Texas Code ASME Flanged Connection | 015889F
Raypak Texas Code ASME Flanged Connection | 015889F
Quantity:
$852.49

17-M
Raypak Texas Code ASME NPT Connection | 015890F
Raypak Texas Code ASME NPT Connection | 015890F
Quantity:
$814.96

18-M
Raypak PC Board Shield 206A 408A | 015557F
Raypak PC Board Shield 206A 408A | 015557F
Quantity:
$60.65

19-M
Raypak Flow Switch | 007142F
Raypak Flow Switch | 007142F
Quantity:
$208.09

20-M
Raypak Flow Switch Paddle Kit | 010026F
Raypak Flow Switch Paddle Kit | 010026F
Quantity:
$100.45

21-M
Raypak Temperature & Pressure Gauge 0-200 PSI | 014647F
Raypak Temperature & Pressure Gauge 0-200 PSI | 014647F
Quantity:
$90.95

22-M
Raypak 2" CPVC 268/408 Outlet Connector NPT Connection | 013795F
Raypak 2" CPVC 268/408 Outlet Connector NPT Connection | 013795F
A Replacement is available for this item.
This item has been discontinued.

22-M
Raypak 2" CPVC 206/408 Outlet Connector Flanged Connection | 015883F
Raypak 2" CPVC 206/408 Outlet Connector Flanged Connection | 015883F
Quantity:
$157.19

23-M
Raypak 2" CPVC Connector & Nut Kit | 006723F
Raypak  2" CPVC Connector & Nut Kit | 006723F
Quantity:
$62.35

24-M
Raypak 2" O-Ring Kit | 006724F
Raypak 2" O-Ring Kit | 006724F
Quantity:
$12.83

2-HP
Raypak Pilot | Natural Gas & Propane - IID Units | 002003F
Raypak Pilot | Natural Gas & Propane - IID Units | 002003F
Quantity:
$72.31

4-HP
Raypak Pilot Orifice | Propane Gas - IID Units | 004308F
Raypak Pilot Orifice | Propane Gas - IID Units | 004308F
Quantity:
$22.81

7-HP
Raypak Pilot Mounting Bracket Kit | IID Units | 306692 | 100-10000419
Raypak Pilot Mounting Bracket Kit | IID Units | 306692 | 100-10000419
Quantity:
$21.91

9-HP
Raypak Pilot Tube | 004078F
Raypak Pilot Tube | 004078F
Quantity:
$16.54

11-HP
Raypak Pilot Shield | 010351F
Raypak Pilot Shield | 010351F
Quantity:
$33.51

1-R
Raypak Refractory Common | Left & Right | 010088F
Raypak Refractory Common | Left & Right | 010088F
Quantity:
$189.06

2-R
Raypak Refactory Kit 336 Front & Rear | 010091F
Raypak Refactory Kit 336 Front & Rear | 010091F
Quantity:
$286.08

3-R
Raypak Refractory Retainer Kit | 010389F
Raypak Refractory Retainer Kit | 010389F
Quantity:
$140.11

1-S
Raypak Jacket Top 336A Louvered | 010049F
Raypak Jacket Top 336A Louvered | 010049F
Quantity:
$413.38

2-S
Raypak Flue Collector | 010077F
Raypak Flue Collector | 010077F
Quantity:
$121.02

3-S
Raypak 336A Door Assembly | Cool Dark & Warm Dark Gray | 013861F
Raypak 336A Door Assembly | Cool Dark & Warm Dark Gray | 013861F
Quantity:
$383.61

4-S
Raypak Door Assembly | Metal Header - Units | 010312F
Raypak Door Assembly | Metal Header - Units | 010312F
Quantity:
$176.29

5-S
Raypak Jacket Side Panel | Right | 010376F
Raypak Jacket Side Panel | Right | 010376F
Quantity:
$205.70

6-S
Raypak Jacket Side Panel | Left | 010377F
Raypak Jacket Side Panel | Left | 010377F
Quantity:
$220.09

7-S
Raypak 336A Jacket Rear Panel | 010374F
Raypak 336A Jacket Rear Panel | 010374F
Quantity:
$138.26

8-S
Raypak Poolstat Cover / Lock | 009505
Raypak Poolstat Cover / Lock | 009505
Quantity:
$51.60

9-S
Raypak High Limit Cover | 010319F
Raypak High Limit Cover | 010319F
Quantity:
$41.77

10-S
Raypak Base Heat Shield | 010320F
Raypak Base Heat Shield | 010320F
Quantity:
$57.95

11-S
Raypak Up Front Control Panel 336A | Cool Dark Gray | 013889F
Raypak Up Front Control Panel 336A | Cool Dark Gray | 013889F
Quantity:
$107.68

11-S
Raypak Up Front Control Panel | Warm Dark Gray | 013893F
Raypak Up Front Control Panel | Warm Dark Gray | 013893F
Quantity:
$107.68

12-S
Raypak Hight Limit Shield | 010342F
Raypak Hight Limit Shield | 010342F
Quantity:
$40.21

13-S
Raypak Weather Shield 336A/337A | 010327F
Raypak Weather Shield 336A/337A | 010327F
Quantity:
$49.27

14-S
Raypak Screw & Retainer | 006744F
Raypak Screw & Retainer | 006744F
Quantity:
$88.98

1-V
Raypak Indoor Stack Top 336 & 337 Models | 8" Vent | 009840
Raypak Indoor Stack Top 336 & 337 Models | 8" Vent | 009840
Quantity:
$184.37

1-V
Raypak Outdoor Stack 336 & 337 Models | 8" Vent | 009836
Raypak Outdoor Stack 336 & 337 Models | 8" Vent | 009836
Quantity:
$242.73

2-V
Raypak 336A/337A Heater Stack Adapter | 010332F
Raypak 336A/337A Heater Stack Adapter | 010332F
Quantity:
$113.58

3-V
Raypak Pagoda Top 336A/337A Gray | 013885F
Raypak Pagoda Top 336A/337A Gray | 013885F
Quantity:
$178.19

4-V
Raypak Outer Stack Adapter 336A/337A | 011463F
Raypak Outer Stack Adapter 336A/337A | 011463F
Quantity:
$62.00

HABLAMOS ESPAÑOL
Hay muchas maneras diferentes de contactarnos, y nos gustaría hablar con usted sobre las preguntas de su compra, ayudarle a diagnosticar los problemas de su equipo y escuchar acerca de cómo podemos mejorar y todo lo que está en su mente.
Click Here
OPEN 6 DAYS A WEEK
Phone Support (Central Time)
6am - 6pm Monday - Saturday
NEWSLETTER
Be the first to know the latest news, deals & special events!

Email:


By signing up you indicate that you agree to the terms of our privacy policy.



ABOUT THE STORE
Pool Supply Unlimited is an e-commerce company that loves water. We love to pump it, filter it, heat it, chlorinate it, light it up and stare at it while we're barbequing a fat, juicy steak. There are real pool professionals working here. Our guys have seen thousands of pools in their careers, no exaggeration. We are based in San Antonio, TX and can land most products to your door (within the 48 contiguous states) in less than a week.
COMPANY
ABOUT US
CONTACT US
CONTACTO
CUSTOMER REVIEWS
FAQ
HOURS OF OPERATION
PRIVACY
SITE MAP
TESTIMONIALS
MY ACCOUNT
LOGIN
FORGOT PASSWORD
LOYALTY POINTS
RETURN MERCHANDISE
PROMOTIONS
COUPONS
NEWSLETTER
BREAD FINANCING
WARRANTIES
TERMS
INTERNATIONAL ORDERS
LOYALTY POINTS TERMS
RETURNS POLICY
SHIPPING POLICY
RESOURCES
BLOG
PRODUCT MANUALS
Visa Mastercard Discover American Express
