Home Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

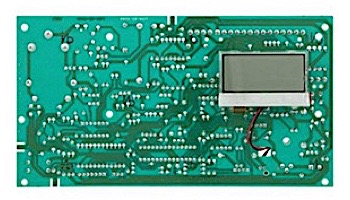

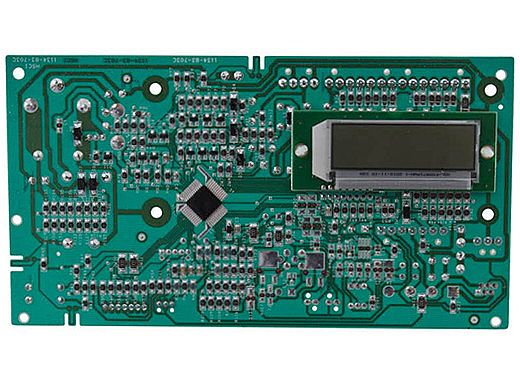

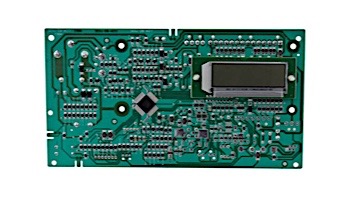

Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F

Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F
$363.05

Quantity:
Shipping Flat Rate Shipping $10.95
Platinum Preferred Manufacturer
  • This board replaces previous part number 013489F
  • See list of compatible models below
  • The display is LED
  • Replaces old part number 010253F
  • Includes: LCD Display, Fuse

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Raypak Digital Natural Gas Pool Heater 360K BTU | Electronic Ignition | Cupro Nickel Heat Exchanger | #51 P-M406A-EN-X 014969 P-R406A-EN-X 014941
Digital Pool Heater 360k BTU Natural Gas - Electronic Ignition - Cupro Nickel #51 014969 014941
Replacement Parts

Raypak Digital Propane Gas Pool Heater 240K BTU | Electronic Ignition | Cupro Nickel Heat Exchanger | P-R266A-EP-X #57 014951 P-M266A-EP-X #58 014979 015007
Digital Pool Heater 240k BTU Propane Gas - Electronic Ignition - Cupro Nickel
#58 014951 014979 015007
Replacement Parts

Raypak Digital Low NOx Natural Gas Heater 207k BTU |  P-R207A-EN-C 009240 P-M207AL-EN-C  009990
Digital Low NOx Heater
207k BTU | Natural Gas | 009240 009990
Replacement Parts

OVERVIEW
This newer circuit board with display screen used with the following models:
  • R185B, R265B, R335B, R405B date of manufacture 10/20/03 thru 10/21/04
  • 206A, 266A, 336A, 406A date of manufacture 10/22/04 thru current
  • 207A, 267A, 337A, 407A date of manufacture 10/22/04 thru current
The new (AFT) PC board kit has several new features. A 2-line 16 character LCD display with plain text diagnostics, improved flame sensing capabilities, an internal fuse and a service menu to aid in troubleshooting and maintenance. Once again Raypak leads the market with the first ever flame signal strength indicator that is graphical and easy to use. This new sensing and diagnostic capability will help reduce unnecessary parts change outs. Another industry first is the new board's ability to monitor the 24V power supply and provide useful diagnostic feedback without the use of a volt meter.


Brand: Raypak
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 5 answers
Have Raypac 2100 Model PR405B-EN. Need to replace Control Circuit Board currently P/N 601720. Will this unit (work?
bob p on May 30, 2017
BEST ANSWER: According to the advertised specs above, it should fit and work on your 405B unit. I believe that Raypak uses this same circuit board for most, if not all, of their pool heaters.
is this the right board for a model 206A s/n 0801017965? the parts list says #010253F.
clifford p on Aug 18, 2016
BEST ANSWER: Yes, it replaced that old part number.
Does this replace the #601769 circuit
board?
Wayneo on Mar 27, 2016
BEST ANSWER: From my Google search, Amazon and another site both show that this new board does in fact replace the 601769 as well as the 013489F boards. And I can tell you that this new board works great - no more trouble firing up my pool heater after I put in this new (and definitely improved with added functionality) board. Pretty easy to install too - comes with step by step directions.
Raypak PC Control Circuit Board C-R206AEN-X ASME lOOKING?
A shopper on Sep 9, 2018
REVIEWS
5.0 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
0
0
0
0
Rated 5 out of 5
This Newest Version Works Best
I got this circuit board to replace the one I bought just last year (got it under warranty) because the software in last one decided to arbitrarily change my heater type to LoNOx, which it isn't, so it would just cut off right after power-on and not flame up. This new board, however, worked great all summer. The real test, though, will be when I re-open the pool next summer to see if this new board still functions correctly...
November 22, 2016
Purchased
over 5 years ago
Rated 5 out of 5
My heater works
Great support over the phone for me to get the correct part. the product was in stock and it was at a fair price
April 13, 2018
Purchased
over 4 years ago
Rated 5 out of 5
Works Perfectly in My Old RayPak 405A Heater
I was skeptical if this board would work as a replacement for my 405A heater, but it works perfectly!! Much better technology than the original from 2003. The display screen is clear and easy to read in any light.
June 14, 2019
Purchased
over 2 years ago
