Home Raypak Digital Low NOx Natural Gas Heater 200K BTU | 010162 Parts

Raypak Digital Low NOx Natural Gas Heater 200K BTU | 010162 Parts

Back to Product

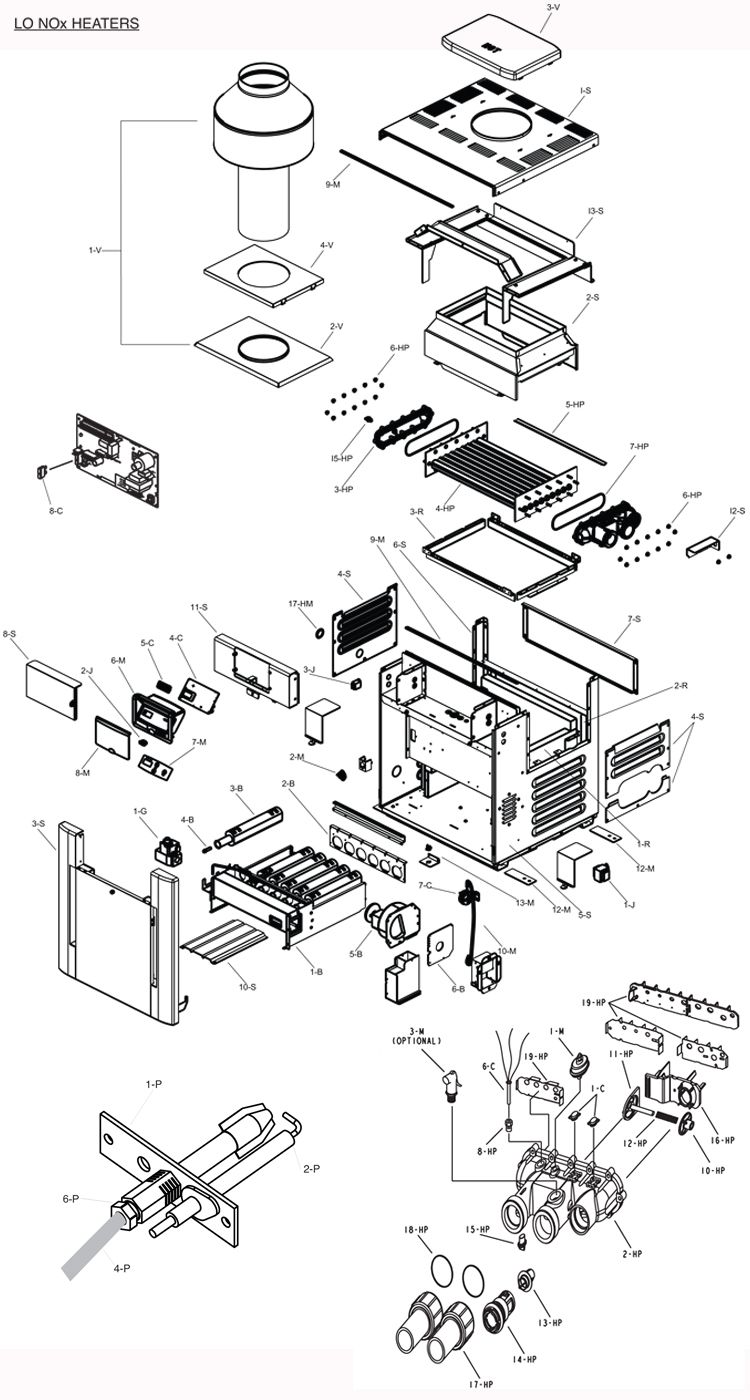

Raypak Digital Low NOx Natural Gas Heater 200K BTU | 010162 Parts Schematic
1-B
Raypak Burner Tray with Burners R207 | 010343F
Raypak Burner Tray with Burners R207 | 010343F
Quantity:
$851.71

5-B
Raypak Complete Blower Assembly for 207-407K BTU Low Nox Heaters | 010042F
Raypak Complete Blower Assembly for 207-407K BTU Low Nox Heaters | 010042F
Quantity:
$290.01

7-B
Raypak Cooling Fan Kit Lownox | 207-407 | 010871F
Raypak Cooling Fan Kit Lownox | 207-407 | 010871F
Quantity:
$42.50

1-G
Raypak Gas Valve On-Off NG .75in | 010329F
Raypak Gas Valve On-Off NG .75in | 010329F
Quantity:
$279.78

1-C
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Raypak Auto Reset Thermostat 135 Degree Surface Mount | 006725F
Quantity:
$41.19

2-C
Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B
Raypak High Limit Switch 135 Degree - Red Epoxy | 600892B
Quantity:
$40.94

3-C
Raypak Auto Reset High Limit Switch 140 Degree - Black Epoxy | 600893B
Raypak Auto Reset High Limit Switch 140 Degree - Black Epoxy | 600893B
Quantity:
$41.77

4-C
Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F
Raypak 3-Wire PC Board Controller 206A, 268A, 408A Pool Heater | 013464F
A Replacement is available for this item.
This item has been discontinued.

5-C
Raypak LCD Display Module From 5-11 | 013640F
Raypak LCD Display Module From 5-11 | 013640F
A Replacement is available for this item.
This item has been discontinued.

6-C
Raypak 3-Wire IID Temperature Sensor | 009577F
Raypak 3-Wire IID Temperature Sensor | 009577F
Quantity:
$63.35

7-C
Raypak Blower Pressure Switch | 008062F
Raypak Blower Pressure Switch | 008062F
Quantity:
$56.62

2-HP
Raypak In/Out Capron Header Complete Assembly with Gasket | 006827F
Raypak In/Out Capron Header Complete Assembly with Gasket | 006827F
Quantity:
$509.56

2-HP
Raypak In-Out Capron Header Assembly with Gasket | 006706F
Raypak In-Out Capron Header Assembly with Gasket | 006706F
Quantity:
$470.08

3-HP
Raypak Return Capron Header Asembly with Gasket | 006707F
Raypak Return Capron Header Asembly with Gasket | 006707F
Quantity:
$116.02

5-HP
Raypak Baffle Copper Heat Exchanger 206A Units Prior to 6-13 | 010038F
Raypak Baffle Copper Heat Exchanger 206A Units Prior to 6-13 | 010038F
Quantity:
$86.30

6-HP
Raypak Flange Nut Kit 1/4"-20 | 008259F
Raypak Flange Nut Kit 1/4"-20 | 008259F
Quantity:
$29.44

7-HP
Raypak O-Ring Gasket Set | Set of Two | 006713F
Raypak O-Ring Gasket Set | Set of Two | 006713F
Quantity:
$30.38

8-HP
Raypak Sensor Adaptor Digital Electronic | 006714F
Raypak Sensor Adaptor Digital Electronic | 006714F
Quantity:
$35.59

8-HP
Raypak Stainless Steel Sensor Well | Millivolt Units with Capron Header | 006805F
Raypak Stainless Steel Sensor Well | Millivolt Units with Capron Header | 006805F
Quantity:
$51.96

9-HP
Raypak Capron Bypass Kit | 006715F
Raypak Capron Bypass Kit | 006715F
Quantity:
$62.78

10-HP
Raypak Bypass Valve for Capron Header Heaters | 006716F
Raypak Bypass Valve for Capron Header Heaters | 006716F
Quantity:
$38.91

11-HP
Raypak Capron Bypass Shaft/Dam | 006717F
Raypak Capron Bypass Shaft/Dam | 006717F
Quantity:
$48.38

12-HP
Raypak Capron Bypass Spring | 006718F
Raypak Capron Bypass Spring | 006718F
Quantity:
$34.21

13-HP
Raypak Unitherm Governor | Capron Header Models | 006719F
Raypak Unitherm Governor | Capron Header Models | 006719F
Quantity:
$64.27

14-HP
Raypak Unitherm Governor Plug | 006720F
Raypak Unitherm Governor Plug | 006720F
Quantity:
$43.16

15-HP
Raypak Capron Drain Plug | R185A - R405A | 006721F
Raypak Capron Drain Plug | R185A - R405A | 006721F
Quantity:
$23.68

17-HP
Raypak 2" CPVC Connector & Nut Kit | 006723F
Raypak  2" CPVC Connector & Nut Kit | 006723F
Quantity:
$62.35

18-HP
Raypak 2" O-Ring Kit | 006724F
Raypak 2" O-Ring Kit | 006724F
Quantity:
$12.83

19-HP
Raypak Header Baffle with Header Dam Kit | 006826F
Raypak Header Baffle with Header Dam Kit | 006826F
Quantity:
$57.28

5-HM
Raypak Baffle Copper Heat Exchanger 206A Units Prior to 6-13 | 010038F
Raypak Baffle Copper Heat Exchanger 206A Units Prior to 6-13 | 010038F
Quantity:
$86.30

7-HM
Raypak Header Gaskets | 9-Pack | 800014B
Raypak Header Gaskets | 9-Pack | 800014B
Quantity:
$23.72

8-HM
Raypak Unitherm Governor Kit | 062234B
Raypak Unitherm Governor Kit | 062234B
Quantity:
$61.32

10-HM
Raypak Bypass Valve Assembly | 016194F
Raypak Bypass Valve Assembly | 016194F
Quantity:
$52.29

11-HM
Raypak Versa Bypass Spring | 850252
Raypak Versa Bypass Spring | 850252
Quantity:
$6.21

12-HM
Raypak Drain Valve | 013793F
Raypak Drain Valve | 013793F
Quantity:
$27.50

13-HM
Raypak Sensor Well | 003765F
Raypak Sensor Well | 003765F
Quantity:
$74.13

14-HM
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$18.01

15-HM
Raypak Inlet & Outlet Flange Kit | 003766F
Raypak Inlet & Outlet Flange Kit | 003766F
A Replacement is available for this item.
This item has been discontinued.

16-HM
Raypak Flange Gasket Set 1.5" Connections | 2-Pack | 062236B
Raypak Flange Gasket Set 1.5" Connections | 2-Pack | 062236B
Quantity:
$43.22

16-HM
Raypak Flange Gasket Set 2" Connections | 2-Pack | 800080B
Raypak Flange Gasket Set 2" Connections | 2-Pack | 800080B
Quantity:
$20.98

17-HM
Raypak Rear Drain Plug and Cover | 005264F
Raypak Rear Drain Plug and Cover | 005264F
Quantity:
$35.59

1-J
Raypak Transformer 120V/240V/24V | 006736F
Raypak Transformer 120V/240V/24V | 006736F
Quantity:
$79.59

2-J
Raypak Rocker Switch | 009493F
Raypak Rocker Switch | 009493F
Quantity:
$34.23

3-J
Raypak DPDT Relay Low NOx | 008784F
Raypak DPDT Relay Low NOx | 008784F
Quantity:
$46.52

1-M
Raypak Pressure Switch 11 PSI | 009133F
Raypak Pressure Switch 11 PSI | 009133F
Quantity:
$50.25

1-M
Raypak Pressure Switch 1.75 PSI | 006737F
Raypak Pressure Switch 1.75 PSI | 006737F
Quantity:
$53.07

2-M
Raypak Roll Out Switch 300º | Thermal Cutoff Fuse | 006035F
Raypak Roll Out Switch 300º | Thermal Cutoff Fuse | 006035F
Quantity:
$43.60

3-M
Raypak Pressure Relief Valve 125 PSI | 008091F
Raypak Pressure Relief Valve 125 PSI | 008091F
Quantity:
$74.35

4-M
Raypak Deliming Kit | 052871F
Raypak Deliming Kit | 052871F
Quantity:
$262.73

5-M
Raypak Wire Harness 207-407 | 010347F
Raypak Wire Harness 207-407 | 010347F
Quantity:
$511.25

6-M
Raypak Control Bezel with Switch Decal | IID Units Prior to 5-11 | 009491F
Raypak Control Bezel with Switch Decal | IID Units Prior to 5-11 | 009491F
Quantity:
$181.63

7-M
Raypak Switch/Decal-Membrane Units Prior to 5-11 | 009492F
Raypak Switch/Decal-Membrane Units Prior to 5-11 | 009492F
Quantity:
$88.71

8-M
Raypak Control Bezel Cover | 009487F
Raypak Control Bezel Cover | 009487F
Quantity:
$41.18

11-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
This item has been discontinued.

11-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
This item has been discontinued.

12-M
Raypak Tie Down Bracket | 011636
Raypak Tie Down Bracket | 011636
Quantity:
$45.62

13-M
Raypak Temp Sensor Low Nox 207-407 | 011745F
Raypak Temp Sensor Low Nox 207-407 | 011745F
Call us to order.

1-P
Raypak Heater Pilot Natural Gas IID Low Nox 207-407 | 010232F
Raypak Heater Pilot Natural Gas IID Low Nox 207-407 | 010232F
Quantity:
$123.82

5-P
Raypak High Tension Wire IID | 207-407 | 010349F
Raypak High Tension Wire IID | 207-407 | 010349F
Quantity:
$47.90

1-R
Raypak Common Left-Right Refractory Kit | 207A - 407A | 010079F
Raypak Common Left-Right Refractory Kit | 207A - 407A | 010079F
Quantity:
$240.21

8-S
Raypak Poolstat Cover / Lock | 009505
Raypak Poolstat Cover / Lock | 009505
Quantity:
$51.60

1-V
Raypak 6" Outdoor Stack 206 & 207 Models Vent | 009834
Raypak 6" Outdoor Stack 206 & 207 Models Vent | 009834
Quantity:
$199.90

1-V
Raypak 6" Indoor Stack Kit 206 & 207 Vent | 009838
Raypak 6" Indoor Stack Kit 206 & 207 Vent | 009838
Quantity:
$179.99

2-V
Raypak Stack Adapter | 010330F
Raypak Stack Adapter | 010330F
Quantity:
$142.14
