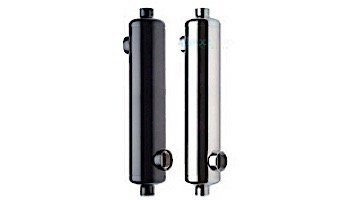

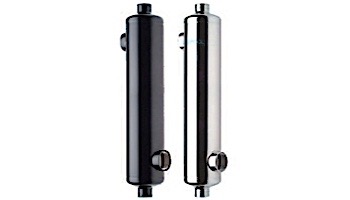

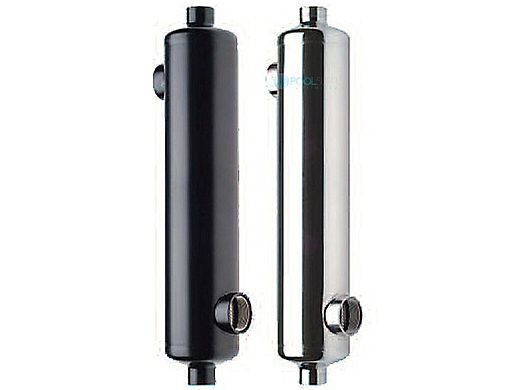

Raypak RP-045 Indirect Heat Exchanger | SS316L 45,000 BTUH | 013476

Name: Raypak RP-045 Indirect Heat Exchanger | SS316L 45,000 BTUH | 013476
Brand: Raypak
SKU: 157485
Availability: InStock

$477.34

Indirect Heat Exchangers

For some low-temp applications, a pool heater seems like the obvious choice but really isn't appropriate. For example, the extreme salinity of sea-water pools damages the heat exchanger, and marine life is sensitive to the copper ions which will gradually be released by the heat exchanger. For such applications, Raypak recommends instead using a hydronic boiler as the heat engine, with a stainless-steel indirect heat exchanger to transfer the heat to the pool without compromising either the water chemistry or the boiler heat exchanger. These heat exchangers make such a piping system compact and easier to design. Consult the water chemistry table in the manual for details of which alloy to select.

	Pressure		TEMP
	SS316L	CR24	TEMP
Tube side	235 PSI	150 PSI	406 °F
Shell side	190 PSI	150 PSI	406 °F

Specifications

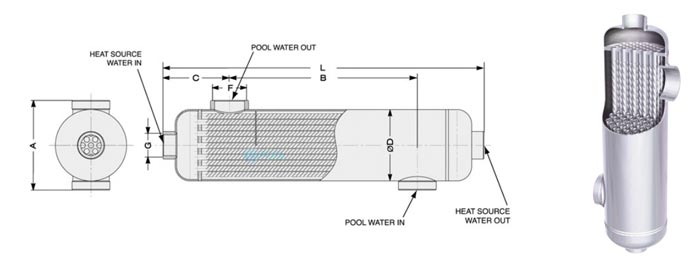

Model	CR24** Super Alloy	Nominal Capacity* BTUH/hour	Dimensions (inches)
Model	CR24** Super Alloy	Nominal Capacity* BTUH/hour	A	B	C	Pool Conn NPT F	Boiler Conn NPT G	Length L	Diameter D	Heat Transfer Area (sq.ft)
RP-045		45,000	4-3/16	4-3/8	3-1/16	1	3/4	10-7/16	3-1/8	1.62
RP-075		75,000	4-3/16	6-7/8	3-5/16	1-1/2	3/4	13-9/16	3-1/8	2.64
RP-125		125,000	4-3/16	8-7/8	3-5/16	1-1/2	3/4	15-1/2	3-1/8	3.64
RP-185	CR24-185	185,000	5	7-58	3-3/8	1-1/2	1	14-3/8	4	4.70
RP-245		245,000	5	12-11/16	3-3/8	1-1/2	1	19-1/2	4	6.80
RP-305	CR24-305	305,000	5	17-3/8	3-3/8	1-1/2	1	24-3/16	4	9.00
RP-495	CR24-495	495,000	5-1/16	34-13/16	3-3/8	2	1	42-1/16	4	16.80
RP-995		995,000	5-9/16	26-5/8	4-5/16	2	2	35-3/16	5-1/2	21.50

*These values are nominal, based on 140F temperature differential between incoming heating and heated water.

**CR super alloy is widely used in industrial salt water environments. Use this where chemical conditions exceed the capacity of the 316L alloy used in the RP-series.
